Grounding Bridge - Zinc - #6 to #2

$9.09
SKU: GB5
Various lead times may apply to this product. Please contact us for more details.

Description

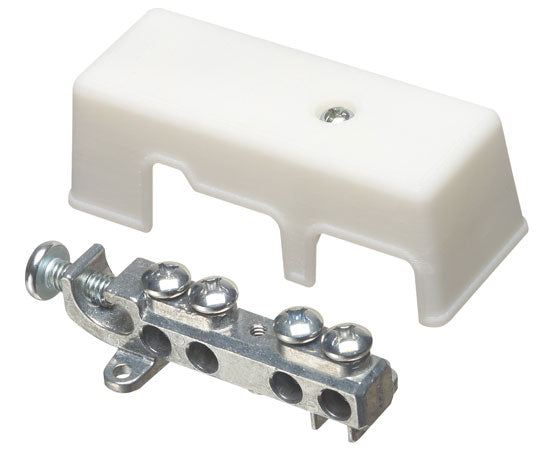

Grounding Bridge For Intersystem Bonding

Our heavy-duty Grounding Bridge provides reliable intersystem bonding between power and communication grounding systems. There are four termination points; one more than required by 250.94 of the 2014 NEC. This product has the capacity to handle multiple hookups of communications systems; telephone, CATV or satellite dish.

The grounding electrode conductor or equipment grounding conductor accepts #6 to #2. copper, aluminum, solid or stranded.

Features

Features

  • For indoor or outdoor use

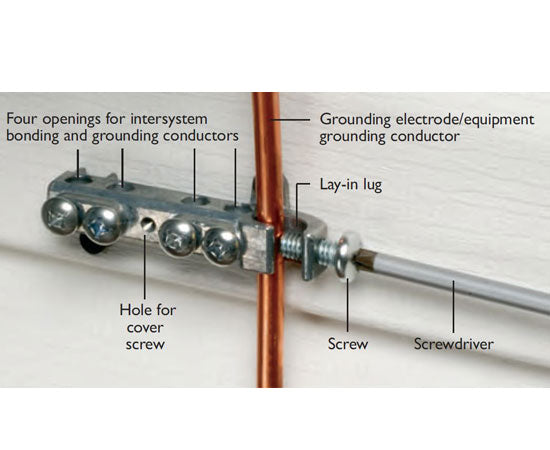

  • Intersystem Bonding and Grounding Conductors:
    • All accommodate #14 to #4 copper or aluminum, solid or stranded
    • Grounding Electrode Conductor or Equipment Grounding Conductor:
    • GB5 and GBB5 accept #6 to #2. GBB50 accepts #6 to #1/0. All can be used with copper or aluminum, solid or stranded.

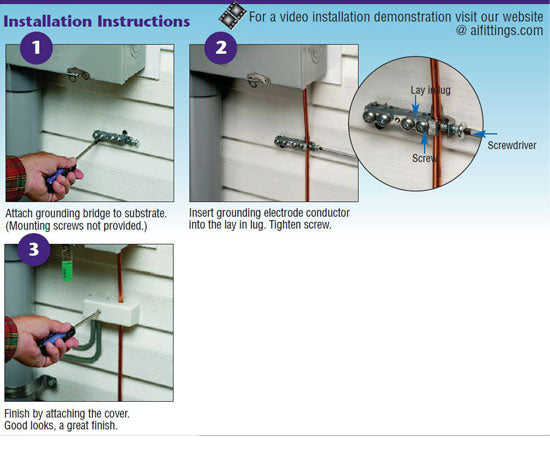

  • Fast, simple installation
  • Easy access for inspections
  • For good looks - textured, paintable plastic cover

Specifications

Specifications

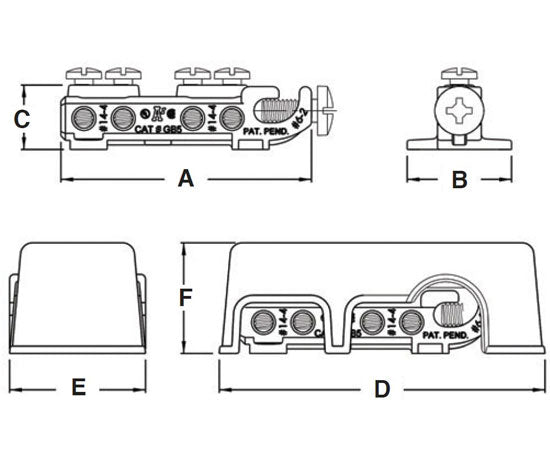

Spec Sheet Part Number Description Dim A Dim B Dim C Dim D Dim E Dim F
NPNB-GB5 Zinc #6 to #2 CU/AL 3.383 1.409 .872 4.398 1.836 1.497

What's in the box?

What's in the box?

  • Qty 1 - Grounding Bridge in Zinc For Intersystem Bonding Between Power & Communication Grounding Systems
