Grounding Bridge w/ PVC Adaptor - Zinc - #6 to #2

$15.70
SKU: GB5P
Various lead times may apply to this product. Please contact us for more details.

Description

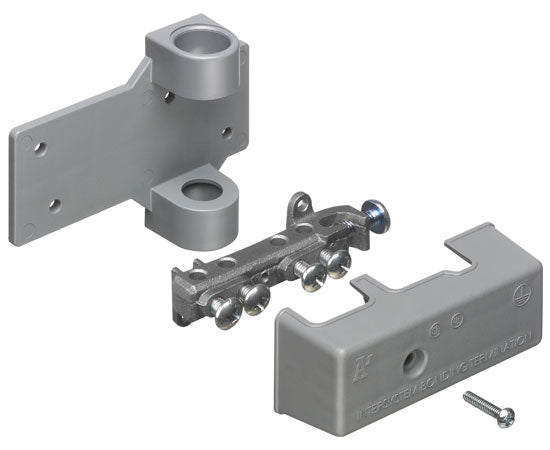

Grounding Bridge With PVC Adaptor For Intersystem Bonding

Our heavy-duty Grounding Bridge provides reliable intersystem bonding between power and communication grounding systems. There are four termination points; one more than required by 250.94 of the 2014 NEC. This product has the capacity to handle multiple hookups of communications systems; telephone, CATV or satellite dish. Includes a PVC adapter for 1/2" PVC pipe. The Cover is UV rated plastic for long outdoor life.

The grounding electrode conductor or equipment grounding conductor accepts #6 to #2. copper, aluminum, solid or stranded.

Features

Features

  • For indoor or outdoor use
  • Intersystem Bonding and Grounding Conductors:
    • All accommodate #14 to #4 copper or aluminum, solid or stranded
    • Grounding Electrode Conductor or Equipment Grounding Conductor:
    • GB5 and GBB5 accept #6 to #2. GBB50 accepts #6 to #1/0. All can be used with copper or aluminum, solid or stranded.

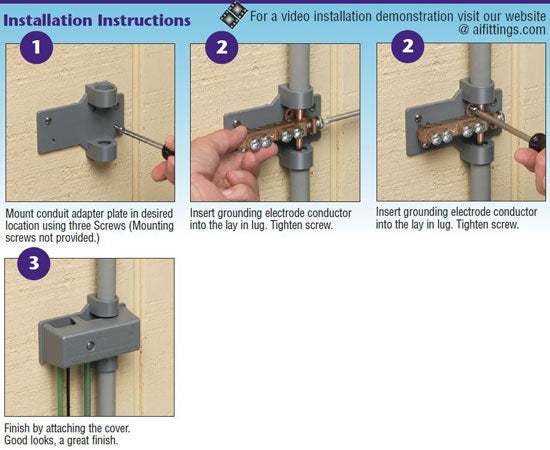

  • Fast, simple installation
  • Easy access for inspections
  • Meets 2008 NEC Ground Requirements
  • GB5P has four termination points - one more than required by 250.94 of the 2008 NEC
  • Available in Zinc
  • Handles multiple hookups of communications systems - for instance phone, cable TV, or a satellite dish
  • Plastic cover is textured and paintable for good looks

Specifications

Specifications

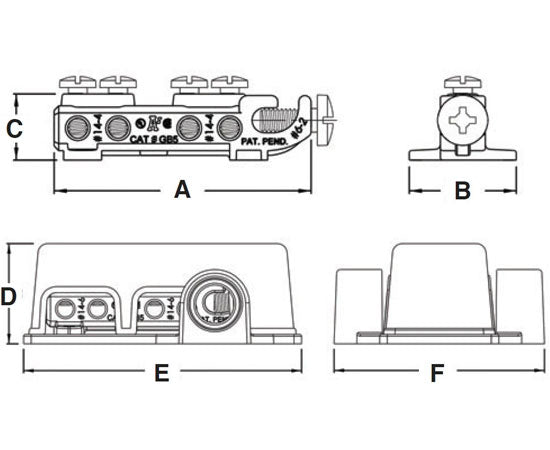

    Part Number Description Dim A Dim B Dim C Dim D Dim E Dim F
    NPNB-GB5P Zinc 3.383 1.409 .872 1.653 4.575 3.461

    What's in the box?

    What's in the box?

    • Qty 1 - Grounding Bridge in Zinc with PVC Adaptor For #6 to #2 CU/AL
