Description

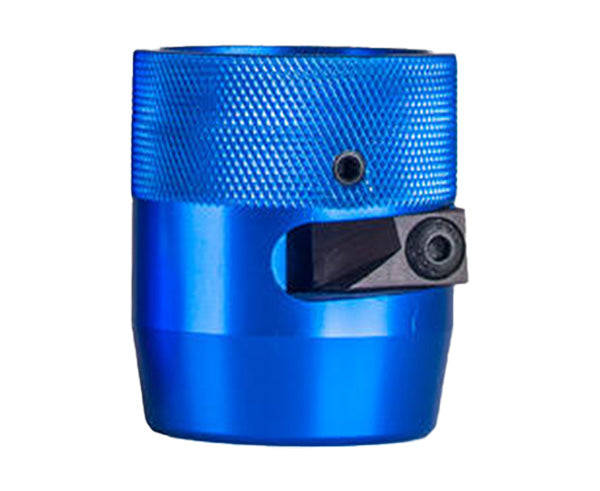

Hardline Jacket Stripping Tool - ½", ⅝", ¾"
The HS-50 hardline stripping tool is designed to strip ½" diameter T10500 Times Fiber T10 COAX cable, Commscope P3, and other similar .500" cables.

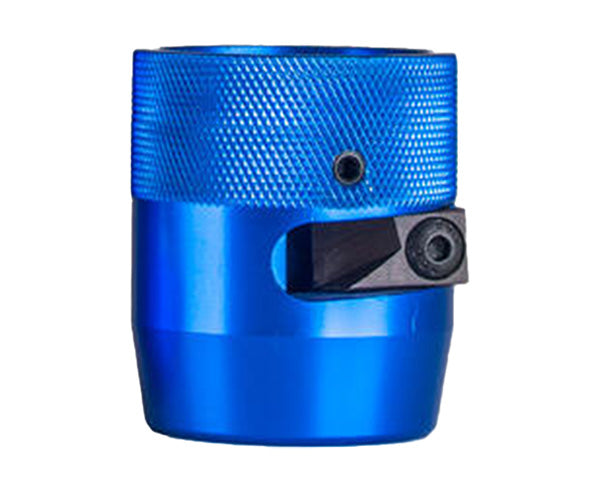

The HS-625 hardline stripping tool is designed to strip ⅝" diameter T10625 Times Fiber T10 COAX cable, Commscope P3, and other similar .625" cables.
The HS-75 hardline stripping tool is designed to strip ¾" diameter T10750 Times Fiber T10 COAX cable, Commscope P3, and other similar .750" cables.
Features
Features
- Body is made from heavy duty aluminum and stripping blade is made of heat treated high carbon steel for long life and durability
- Replacement blades can be purchased separately (no need to ever replace the entire tool, see below for replacement part number)
- Ideal for aerial or underground hardline cables for residential, commercial, and industrial buildings
Specifications
| TECHNICAL SPECIFICATIONS | ||||
|---|---|---|---|---|
| Model | HS-50 | HS-625 | HS-75 | HS-875 |
| TOOL SPECIFICATIONS | ||||
| Description | Hardline strip & core tool 1/2” | Hardline strip & core tool 5/8” | Hardline strip & core tool 3/4” | Hardline strip & core tool 7/8” |
| Size of Cable | .500” / 12.7 mm | .625” / 15.86 mm | .750” / 19.05 mm | .875” / 22.23 mm |
| PHYSICAL CHARACTERISTICS | ||||
| Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Length | 2.5” / 63.5 mm | 2.5” / 63.5 mm | 2.5” / 63.5 mm | 2.5” / 63.5 mm |
| Weight | .25 lbs / 0.11 kg | .25 lbs / 0.11 kg | .25 lbs / 0.11 kg | .25 lbs / 0.11 kg |
| IDENTIFICATION | ||||
| UPC # | 811490018846 | 811490019690 | 811490018853 | 810053350638 |
Additional Information
| Jonard Tools Coring Tools Product Video |
|---|
What's In The Box
What’s In The Box
- Hardline Jacket Stripping Tool - ½", ⅝", ¾"
