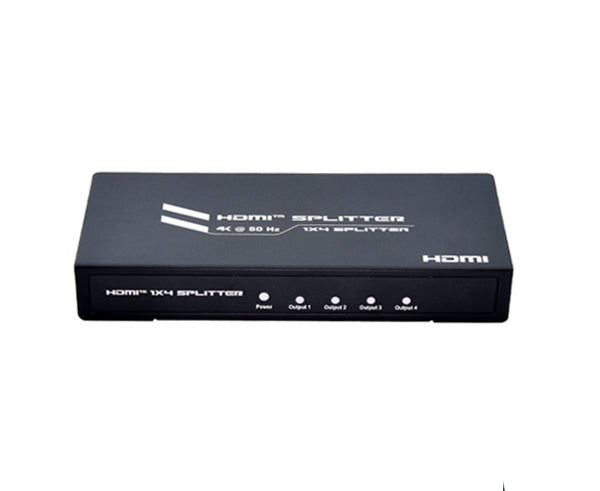

HDMI 4-Way Splitter, 3D, 1080i/1080p, IR Extension, 4Kx2K & EDID - (1-in/4-out)

$94.34
SKU: AV8-4935SP4
HDMI logo Bullets_4Kx2K_full_hd Supports 3D Video

Description

HDMI 4-Way Splitter (1-in/2-out) 3D w/IR Extension

The 1x4 HDMI Splitter distributes the input of the HDMI signal into 4 identical outputs simultaneously. With Ultra HD 4K @ 60Hz, this HDMI splitter ensures stunning picture quality at 1080p at 60Hz. It is backward compatible with previous HDMI revisions for 1080p/720p resolution. It offers solutions for HDTV home applications, HDTV retail and show sites, conference room presentations, schools and corporate training environments.

This HDMI 4-Way splitteris 3D and IR Extension supported, meaning it allows you to extend remote control IR signal through HDMI cable. Perhaps you have a TV and cable box in the living room, and second TV in the bed room upstairs. You can change cable channel either in the living room or on in the bedroom upstairs with the use of this cable box remote control. You can now avoid going downstairs each time you want to change the channel. As an added bonus, we also include one IR transceiver, one IR receiver, an HDMI adapter with IR and a 5v DC power adapter.

Features

Features

  • 1-in / 4-out HDMI splitter
  • No Need to set up, plug and play
  • Supports HDMI 3D 4Kx2K (Standard HDMI High Speed with Ethernet 28AWG cable)
  • Full 480i, 480p, 576i, 576p, 720i, 720p, 1080i, 1080p supported
  • Extend the Transmission distance and improve transmission signal
  • Works with HDMI or DVID, HDCP-enabled HDTV
  • Supports full 3D video format
  • Power: DC5V (included)
  • HDCP 2.2 and HDCP 1.4
  • Metal casing design and over all shielding with out signal interference
  • LED light indicates signal and power mode
  • Supports compressed audio such as DTS, Dolby Digital, DTS-HD Master Audio, and Dolby TrueHD

Applications:

AV8-4295SP4 Diagram

Specifications

Specifications:

HDMI Source Input Port 1
Display Device Output Ports 4
Source Port Connector 19 Pin HDMI
Display Port Connector 19 Pin HDMI
HDCP Compliant Yes
Single Link Range 3840*2160
Input Video Signal 0.5-1.0 Volts P-P
Input DDC Signal 5 Volts P-P(TTL)
Deep Color 36 Bit
HDMI Version HDMI 1.4 and 2.2
Bandwidth Up to 340MHz
Signal Speed Up to 6.0Gbps per channel
Vertical Frequency Range 60Hz
Power Consumption 2.5 Watts Maximum
Operation Temperature 0°C-70°C
Working Voltage DC 5 Volts
Power Adapter 5V 1A
Dimensions Length = 207mm
Width = 187mm
Height = 56mm

What's in the Box?

What's in the Box?

  • (1) - HDMI 4-Way (1-in/4-out) Splitter
  • (1) - 5V DC Power Adapter
  • (1) - Instruction Manual
