Description

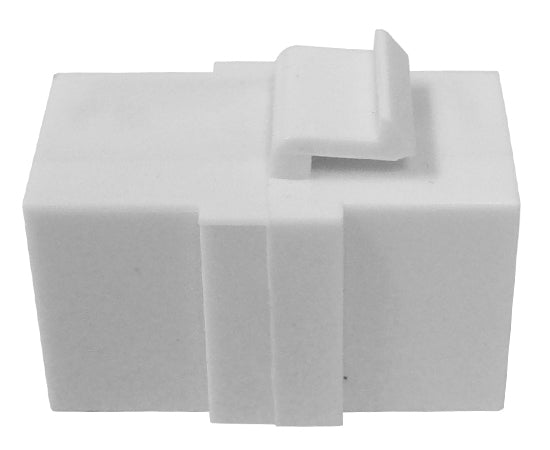

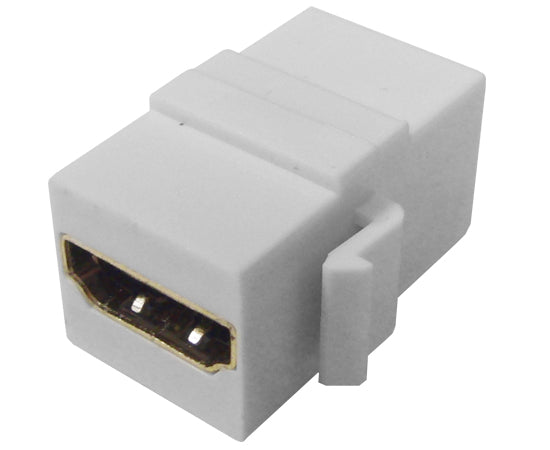

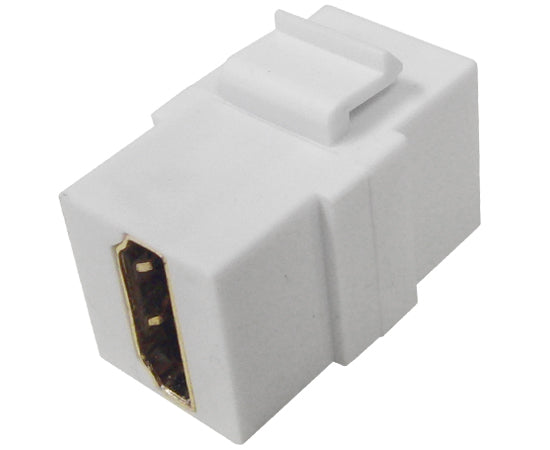

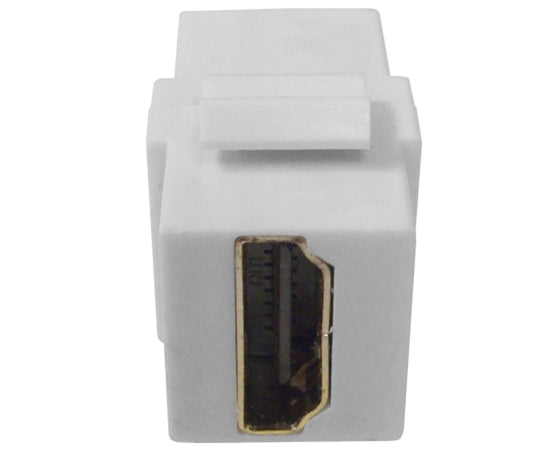

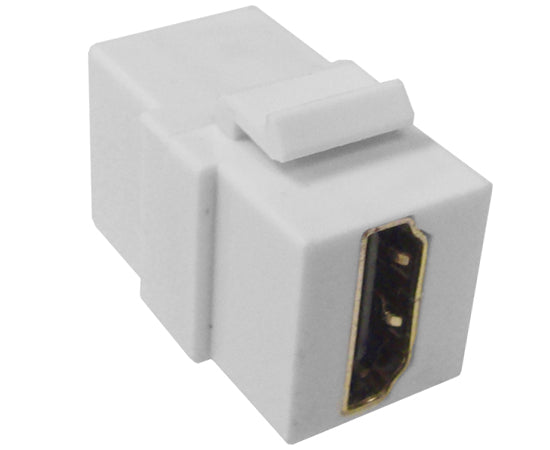

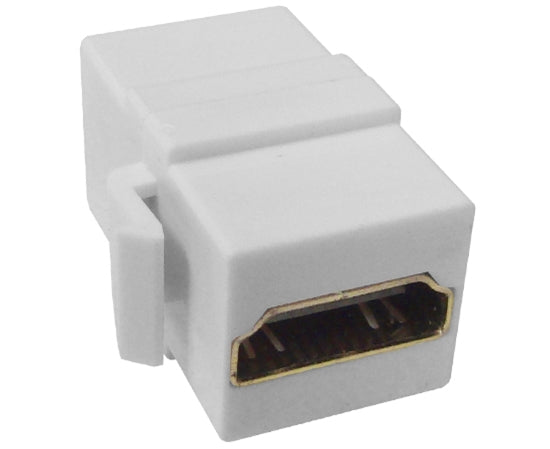

HDMI 2.0 Coupler Keystone Jack, White, 4K x 2K at 60Hz
This HDMI 2.0 Coupler Keystone Jack is designed to work with our WP2- keystone wall plates, so you don't need to install a special HDMI wall plate to pass the HDMI signal through the wall. Simply snap into any one of our multi-port WP2- wallplates with RJ45 or any other A/V connectors.
Features
Features
- HDMI 2.0 connectors
- Supports 4K x 2K at 60Hz and below
- Works with Standard Wall Plates
- White color
- Keystone Jack easily snaps into Wall Plate
Specifications
Specifications
| Length | 1.50 inch |
| Width | 0.58 inch |
| Height (without clip) | 0.64 inch |
| Height (including clip) | 0.84 inch |
Additional Information
Additional Information
To learn more about HDMI's here is a link with information about Understanding HDMI's.
| HDMI Type | Max Resolution | Transmission Rate | HDR | Audio Support |
| 1.4 | 4K x 2K at 30Hz | 10.2 Gb/s | No |
ARC, Dolby TrueHD, DTS-HD |
| 2.0 | 4K at 60Hz | 18 Gb/s |
Yes |
HE-AAC, DRA, 32 audio channels |
| 2.1 | 8K at 30Hz |
48 Gb/s |
Yes |
eARC |
Primus Cables HDMI Modular Snap-in Insert with HDMI Pigtail are compatible with Primus Cables:
- HDMI Cables
- Wall Plates (WP1 & WP2)
- HDMI Extenders
- HDMI Adapters
- HDMI Switches
- HDMI Splitters
- HDMI Cable Testers
- HDMI Converters
- HDMI Matrix Switches
What's in the Box?
What's in the Box?
- Qty 1 - HDMI 2.0 Coupler Keystone Jack
