Cam-lock is not included and can be added as an additional option.
Description
Description

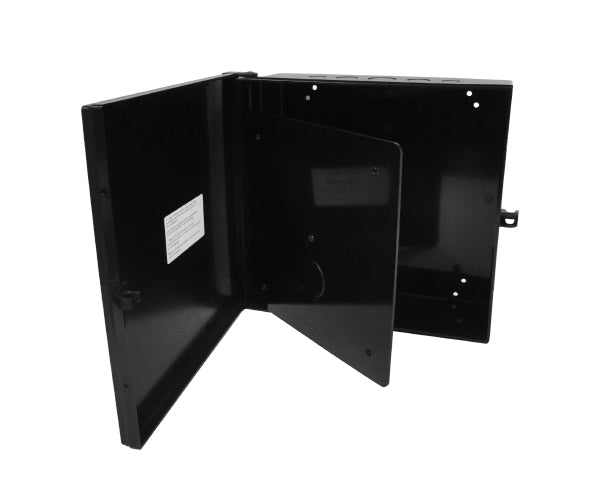

Heavy-Duty UV Rated Non-Metallic Security Enclosure Boxes - Black
Arlington's non-metallic enclosure boxes now meet NEMA 3R requirements for outdoor use. They are the perfect solution for protecting and securing power backups, security devices, and other valuable equipment outdoors or inside. They are made of heavy-duty, UV-rated non-metallic material. These boxes are NEMA 3R-rated for outdoor use when mounted with the hinge on top.
They're available in four convenient sizes:
- 7" x 8" x 3.5"
- 11" x 11" x 3.5"
- 12" x 12" x 4" with or without backplate
- 12" x 12" x 6" with or without backplate
The backplate allows an installer to mount components to the plate even after the enclosure box is mounted. Changing batteries or doing maintenance is made easy just by removing the plate.
For added security, Arlington's enclosure boxes are "lockable" in a couple of ways. There's a knockout on the front of the box for an optional cam lock. And a latch that accommodates a padlock.
Features
Features
- Meets NEMA Type 3R Requirements
- Handy 1/2" and 3/4" knockouts on top and bottom of the enclosure box
- Available in 4 sizes
- Optional cam lock
- Available in gray and black
Specifications
Specifications
| PHYSICAL INFORMATION | |
| Weight | 3.728 lbs/each |
|---|---|
| Height | 12.519" |
| Width | 13.573" |
| Color | Black |
| Material(s) | UV-Rated Plastic |
| TECHNICAL INFORMATION | |
| Application | Secure power boxes, security devices, and more in a debris-free environment. |
| Features | Lockable |
| Knockout Size(s) | 1/2" and 3/4" |
| Trade Size | 12" x 12" x 4" |
Additional Information
Additional Information
EB0708 7"x8"x3.5" Enclosure Box Specs: |
EB1111 11"x11"x3.5" Enclosure Box Specs: |
EB1212 12"x12"x4" Enclosure Box Specs: |
EB1212BP 12"x12"x4" Enclosure Box with Back Plate Specs: |
EB12126 12"x12"x6" Enclosure Box Specs: |
EB12126BP 12"x12"x6" Enclosure Box with Back Plate Specs: |
EBL1 Enclosure Box Cam Lock Specs: |
What's in the Box
What's in the Box
- Qty 1 - Non-Metallic Enclosure
