Hybrid NVR Security, 16ch Analog x 8ch IP, 8MP Resolution

by Uniview
Various lead times may apply to this product. Please contact us for more details.

This product is intended to be purchased by installers only

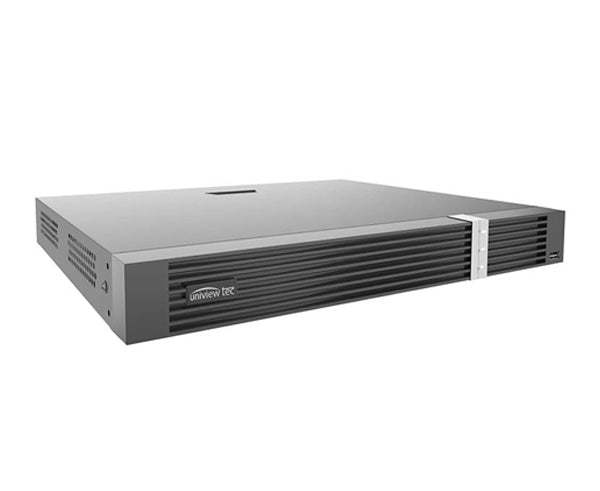

Hybrid NVR Security System, 16ch Analog x 8ch IP, 8MP Resolution

This hybrid NVR from Uniview Tec is capable of supporting both analog and IP cameras. It simultaneously supports 16 analog and 8 IP* video inputs with adaptive access, or up to 24 IP channels if no analog cameras are connected. It features high-definition analog over coax and can record images up to 8MP (4K), 3840 x 2160 resolution. This NVR is capable of long-range transmission over RG-6 coax cable up to 2000ft and features H.265 compression to dramatically reduce storage requirements.

*Requires a PoE Switch for IP Cameras



  • 16 analog x 8 IP Cameras, Hybrid network recorder with H.265 Compression
  • Simultaneously supports 16 Analog (AHD, TVI, CVI, and CVBS) and 8 IP Video Inputs with adaptive access (or up to 24 IP channels if no analog cameras are connected)
  • Supports High Definition Analog (HD Analog) over Coax Technology for use of Existing Coax Cables & BNC Connectors, allowing mega-pixel video images from AHD, TVI, and CVI camera without any rewiring
  • Supports recording of up to 8MP (4K), 3840 x 2160 Resolution Images
  • Concurrent Mirrored Display on HDMI and VGA Monitor Outputs
  • HDMI display resolution up to 8MP (4K)
  • Supports Audio I/O and PTZ Camera control
  • Easy Plug and Play Functionality with Automatic Device Discovery and Display
  • Supports 2 SATA HDD up to 10TB each for 20TB total
  • ONVIF Profile S Compliant for IP Cameras
  • Long transmission distance over RG-6 coax cable up to 2000ft (600m)
  • Supported by Uniview Tec Guard Station Client Software and Guard Viewer Mobile Apps for iPhone and Android Devices




Analog Camera Input 16 Channels
IP Camera Input 4 Channels
Video Compression H.265, H.264
Max Recording Video Resolution AHD, TVI, and CVI -8MP(channels 1-4 only); CVBS -960H (720TVL); IP -8MP
Playback Video Capabilities (fps) 2 x 8MP @30; 2 x 6MP @30; 3 x 5MP @30; 4 x 4MP @30; 4 x 3MP @30; 6 x 3MP @25; 8 x 1080p @30; 16 x 720P @ 30
Monitor Output 1 x HDMI, 2160p; 1 x VGA, 1080p; 1 x CVBS
Synchronous Playback 16 Channels


Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE
Bandwidth Incoming - 72Mbps, Outgoing - 80 Mbps
Remote Users 128
General Alarm Motion, Tampering, Human Body Detection, Video Loss, Alarm Input


Network Interface 1 x RJ45, 10M/100M/1000M, self-adaptive Ether
USB Interface Front panel: 1 x USB2.0; Rear panel: 1x USB3.0
Serial Interface 1 x RS485, Terminal Strip
Audio and Alarm I/O 1ch/ 1ch, RCA; 4 / 1Terminal Strip
Hard Disk 2 SATA, up to 10TB each
Power 12VDC; 12W Consumption (w/o HDD)
Rack Mountable Yes; see Accessories
Dimensions (WxDxH) 15" x 12.5" x 2.1"
Weight (w/o HDD) 4.4 lb
Operating Temperature -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
RG-6 Coax Cable Transmission Up to 1200ft w/ TVI, CVI; up to 2000ft w/ AHD
Certification FCC, CE (UL - Power Supply only)

Additional Product Information

Additional Product Information

If an NVR is sent in for warranty repair with an after-market hard drive and the hard drive is found to be the issue, diagnosis and repair fees may apply.
