Descriptions
Descriptions

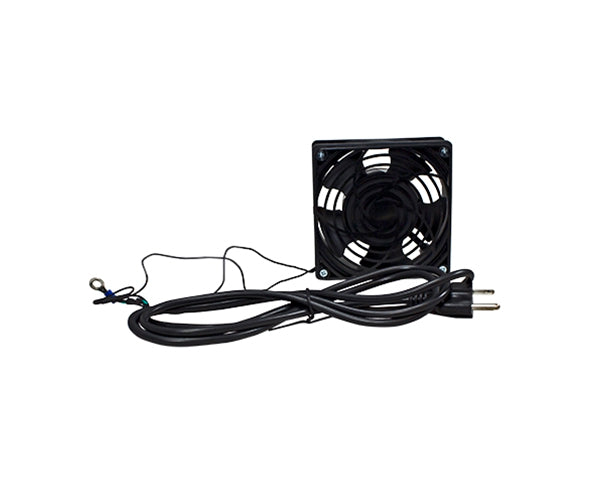

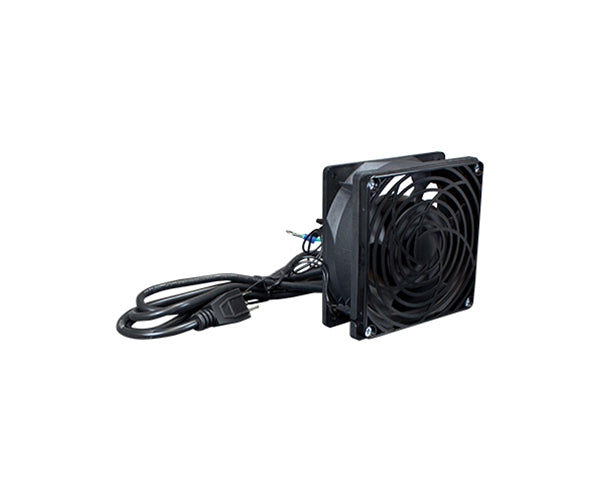

Individual Fan, 75 CFM
This prewired fan provides an airflow boost when additional cooling is needed inside a Primus Cable Fixed or Double Hinge Wall Mount Cabinet. Installation is easy using the included screws and a Phillips screwdriver – no drilling required.
Features
Features
- Quiet operation – rated at only 80 dbA
- Impressive airflow – up to 150 CFM
- Energy efficient – uses only 0.48A
- Input – 100-125VAC 50/60Hz
Specifications
Specifications
| Product Type | Electric Fan |
| Impeller Material | PBT Reinforced Plastic |
| Terminals | 0.02" |
| Dimensions (HxWxD) |
4.72” x 4.72” x 1.77” |
| Motor | Shaded Pole Induction Motor |
| Bearing System | Sleeve |
| Cord Length | 6 ft |
| Operating Temperature |
-10°C ~ 70°C |
| Voltage | 100 ~ 125 VAC |
| Frequency | 50 / 60 Hz |
| Current | 0.24 Amps |
| Power | 10 / 9 Watts |
| Speed | 2100 / 2400 RPM |
| Noise | 35 / 40 dBA |
| Airflow | 75 CFM |
| Static Pressure | 3.1 / 4.1 (mmH²0) |
| Weight | 540 g |
| Compliance & Standards | CE & RoHs Compliant |
| Quantity Per Package | 1 (set of 2) |
What's in the box
What's in the box
- Qty 1 - Individual Fan, 75 CFM
