Description
Some items may require minimum order quantities which can be changed in your shopping cart.
Must be purchased by case quantity 25.
Description

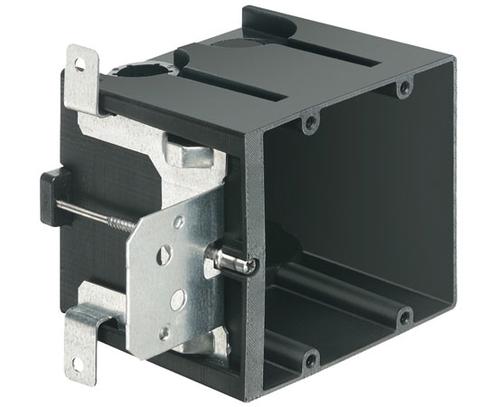

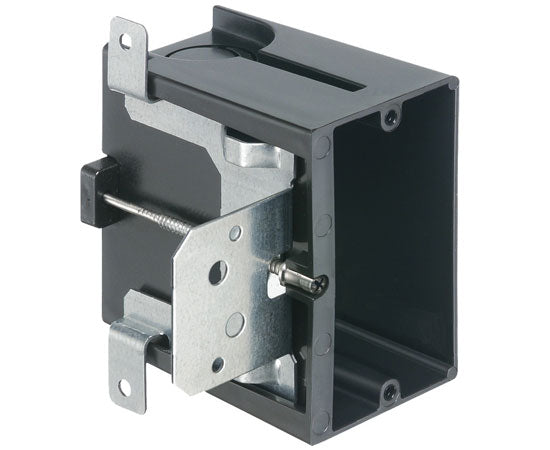

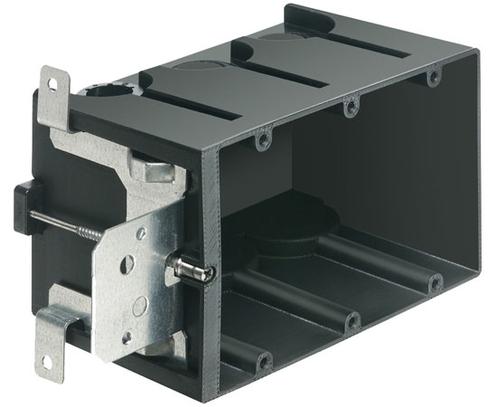

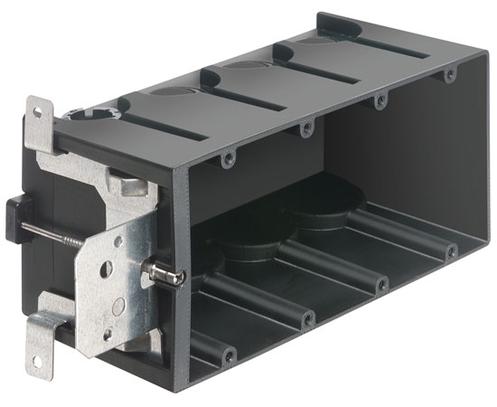

Adjustable Outlet Box - IN/OUT - New Construction
Our Adjustable Outlet Box is great for applications where the final wall thickness is unknown. This product is versatile, offering an adjustable screw that can be tightened or loosened to bring the outlet away or closer to the mounting point, the results are an outlet box that can be set for a 1/2" wall thickness through 1 1/2"
Features
Features
- No more set back boxes - IN/OUT BOX depth adjusts before OR after the wall finish is done
- The depth adjustment screw is accessible even after the wall finish is in place
- Complies with 2011 NEC, 314.20 for set back boxes

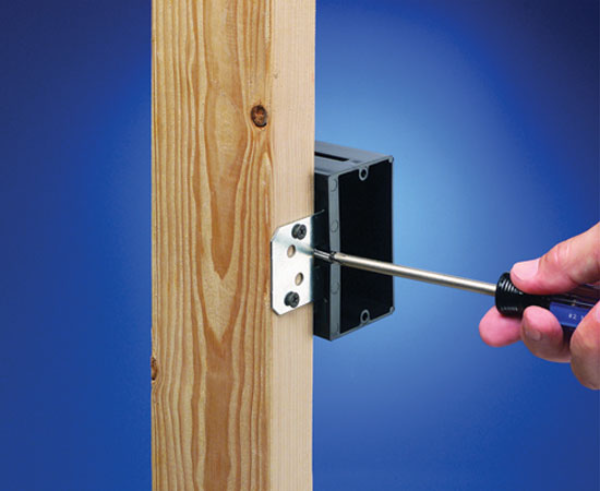

- Secure installation - Mounts to wood or steel studs in new construction
- UL Listed
Specifications
Specifications
| FA101 | FA102 | FA103 | FA104 | |
| Width | 4.800" | 4.800" | 4.800" | 4.800" |
| Height | 3.875" | 3.875" | 3.875" | 3.875" |
| Weight | 0.376 lbs | 0.520 lbs | 0.526 lbs | 0.700 lbs |
| Color | Black | Black | Black | Black |
| Material | Plastic | Plastic | Plastic | Plastic |
| Depth adjustment | Adjusts from 1/2" up to 1-1/2" | Adjusts from 1/2" up to 1-1/2" | ||
| Trade Size | 1-gang | 2-gang | 3-gang | 4-gang |
| Line Drawing | Class 2 Low-Voltage Wiring | Class 2 Low-Voltage Wiring | ||
| UPC | 018997042415 | 018997042422 | 018997042439 | 018997042446 |
What's In The Box
What's In The Box
- Must be purchased in case quantities of 25 pieces
