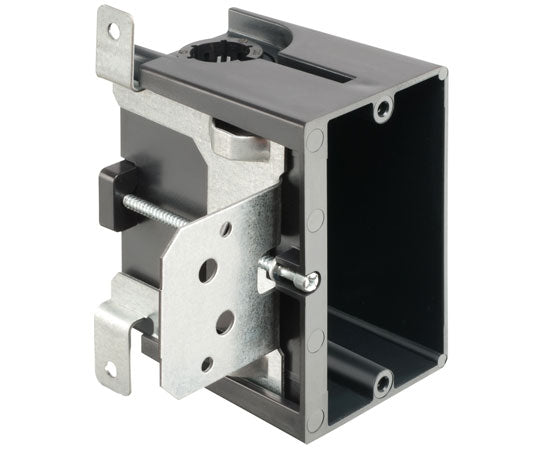

Adjustable Low-Profile Non-Metallic Outlet Box for New Construction
Our Single-Gang Adjustable Outlet Box is designed for new construction where the final wall thickness is unknown. This Low Profile version is a bit shorter than our 'regular' single-gang adjustable In/Out Box, making this right for smaller spaces. In/Out boxes are adjustable for a wall thickness of 1/2" up to 1-1/2"
The great thing about having an adjustable outlet box is that you can configure it to sit flush when applications are unique, such as double drywall, tile, mirrors, and more.
Features
Features
- No more setback boxes - IN/OUT BOX depth adjusts before OR after the wall finish is done
- The depth adjustment screw is accessible even after the wall finish is in place
- Complies with 2011 NEC, 314.20 for setback boxes
- Secure installation - Mounts to wood or steel studs in new construction
- cULus Listed
Specifications
Specifications
| BASIC INFORMATION | |
|---|---|
| Part Number | FA101LP |
| Description | Non-Metallic box for new work/construction on shallow wall cavities. Adjustable for wall thicknesses from 1/4" to 1-1/2". Single Gang, Vertical, 18.3 cu. in. Low Profile. |
| UPC-A | 018997768803 |
| Unit Packaging | 25pcs |
| Standard Packaging | 25pcs |
| Available w/ Grounding Clip | Yes - Order Part Number FA101LPGC |
| PHYSICAL INFORMATION | |
|---|---|
| Weight | 0.337 lbs/each |
| Height | 3.320" |
| Width | 4.800" |
| Color | Black |
| Material(s) | Plastic |
| TECHNICAL INFORMATION | |
|---|---|
| Cubic Inches | 18.3 |
| Style | Low-Profile |
| Trade Size | 1-Gang |
What's In The Box
What’s In The Box
- (1) Single-gang Adjustable Box
- (1) NM95 Cable Connector
- (2) NM942 Cable Connectors
- (1) NM900 Snap-In Blank
