Insulated Metal Grounding Bushings with Dual Rated CU-AL C-Clamp Grounding Lug Zinc Die-cast 150ºC rated

$103.95
SKU: NPNB-450
Trade Size
Various lead times may apply to this product. Please contact us for more details.
Made in USA

Description

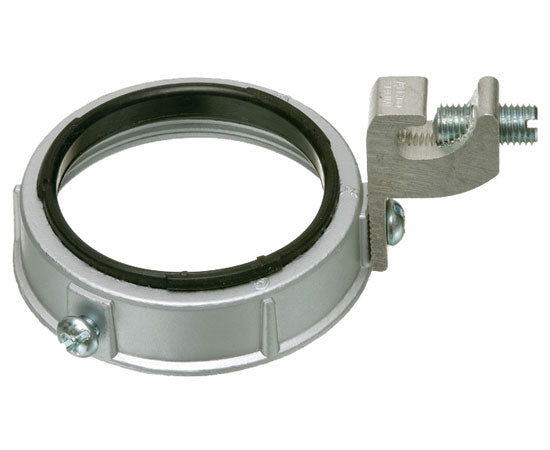

Insulated Metal Grounding Bushings

Insulated Metal Grounding Bushings are threaded with dual rated CU-AL C-clamp grounding lug. Bushings are made of Zinc die-cast and are 150ºC rated. A larger Lay-in Lug option is available that conforms to 1/0 to 250M/CM max wire.

Specifications

Specifications

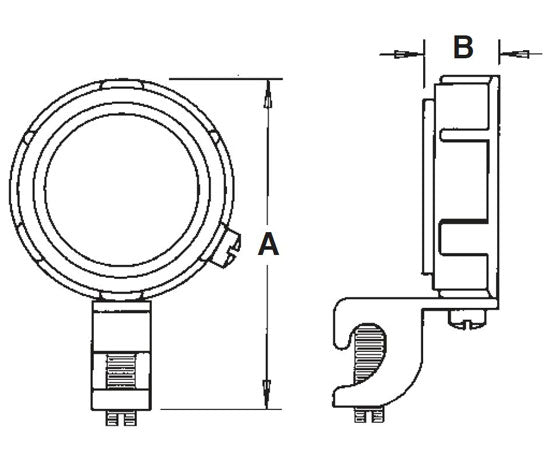

Part Number Trade Size Ground Min. Wire Max Dim A Dim B Threads/Inch
NPNB-450 1/2" 14 4 1.896 .458 14
NPNB-451 3/4" 14 4 2.109 .482 14
NPNB-452 1" 14 4 2.384 .576 11-1/2
NPNB-453 1-1/4" 14 4 2.734 .644 11-1/2
NPNB-453100 1-1/4" 14 1/0 3.214 .644 11-1/2
NPNB-454 1-1/2" 14 2 3.130 .715 11-1/2
NPNB-454100 1-1/2" 14 1/0 3.453 .715 11-1/2
NPNB-455 2" 14 2/0 3.604 .715 11-1/2
NPNB-455100 2" 14 250M/CM 3.927 .715 11-1/2
NPNB-456 2-1/2" 14 2/0 4.652 .942 8
NPNB-456250 2-1/2" 6 250M/CM 5.042 .942 8
NPNB-457 3" 14 2/0 4.810 .970 8
NPNB-457250 3" 6 250M/CM 5.200 .970 8
NPNB-458 3-1/2" 14 2/0 5.783 .969 8
NPNB-458250 3-1/2" 6 250M/CM 6.443 .969 8
NPNB-459 4" 14 2/0 6.282 .992 8
NPNB-459250 4" 6 250M/CM 6.672 .992 8
NPNB-4591 5" 8 2/0 7.249 .990 8
NPNB-4591250 5" 2 250M/CM 7.639 .990 8
NPNB-4592 6" 8 2/0 8.253 1.358 8
NPNB-4592250 6" 2 250M/CM 8.643 1.358 8

What's in the box?

What's in the box?

  • 450 - 25 Pack - Plastic Insulating Bushings 105ºC Rated
  • 451 - 25 Pack - Plastic Insulating Bushings 105ºC Rated
  • 452 - 20 Pack - Plastic Insulating Bushings 105ºC Rated
  • 453 - 20 Pack - Plastic Insulating Bushings 105ºC Rated
  • 453100 - 20 Pack - Plastic Insulating Bushings 105ºC Rated
  • 454 - 20 Pack - Plastic Insulating Bushings 105ºC Rated
  • 454100 - 10 Pack - Plastic Insulating Bushings 105ºC Rated
  • 455 - 10 Pack - Plastic Insulating Bushings 105ºC Rated
  • 455100 - 10 Pack - Plastic Insulating Bushings 105ºC Rated
  • 456 - 5 Pack - Plastic Insulating Bushings 105ºC Rated
  • 456250 - 10 Pack - Plastic Insulating Bushings 105ºC Rated
  • 457 - 5 Pack - Plastic Insulating Bushings 105ºC Rated
  • 457250 - 10 Pack - Plastic Insulating Bushings 105ºC Rated
  • 458 - 5 Pack - Plastic Insulating Bushings 105ºC Rated
  • 458250 - 5 Pack - Plastic Insulating Bushings 105ºC Rated
  • 459 - 5 Pack - Plastic Insulating Bushings 105ºC Rated
  • 4591 - 5 Pack - Plastic Insulating Bushings 105ºC Rated
  • 4591250 - 5 Pack - Plastic Insulating Bushings 105ºC Rated
  • 4592 - 5 Pack - Plastic Insulating Bushings 105ºC Rated
  • 4592250 - 5 Pack - Plastic Insulating Bushings 105ºC Rated
  • 459250 - 5 Pack - Plastic Insulating Bushings 105ºC Rated
