Omada 24-Port 10/100Mbps + 4-Port Gigabit Smart Switch with 24-Port PoE+

Omada 24-Port 10/100Mbps + 4-Port Gigabit Smart Switch with 24-Port PoE+

BY TP-Link

$259.99 USD
$259.99 USD
Sale Sold out

SKU: SL2428P

 ⚠ Various lead times may apply to this product. Please contact us for more details.

View full details

FCC Verified logo CE Verified logo RoHS Compliant PoE+ logo

Description

Description

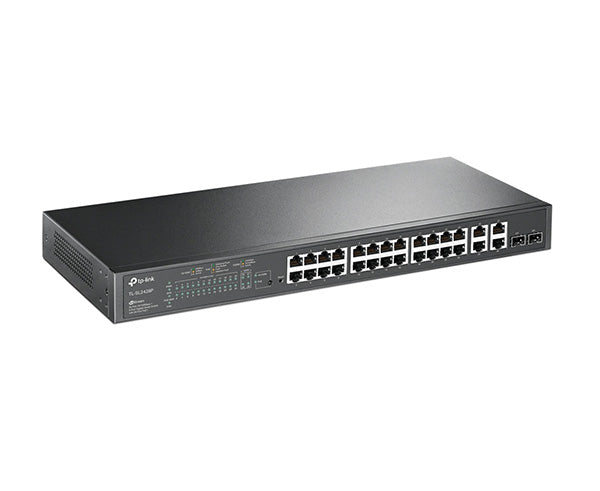

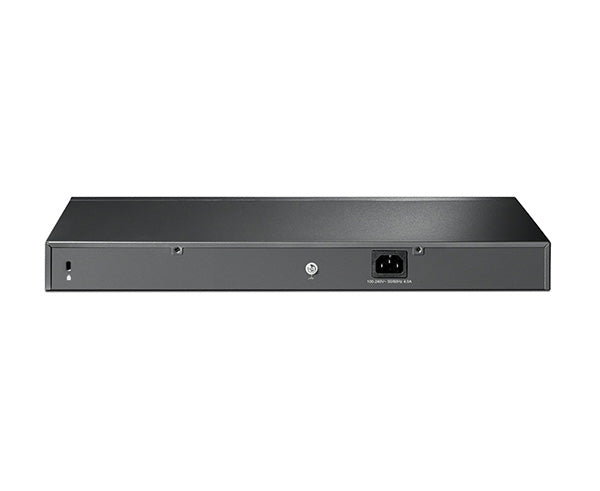

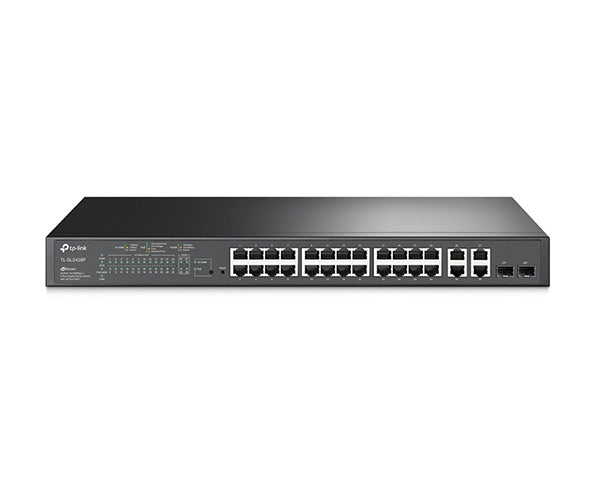

Omada 24-Port 10/100Mbps + 4-Port Gigabit Smart Switch with 24-Port PoE+

Advanced QoS Features

Administrators can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority, and DSCP Priority, to ensure that voice and video are always clear, smooth, and jitter-free. In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.

Storm Control

The Storm Control feature protects against broadcast, multicast, and unknown unicast Storm.

Abundant Layer 2 Features

The Jetstream TL-SL2428P V4 supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, port isolation, port mirroring, STP/RSTP/MSTP, link aggregation grouping, and 802.3x flow control. Advanced network maintenance features include loop back detection, cable diagnostics, and IGMP snooping. IGMP snooping ensures the switch intelligently forwards the multicast stream to only appropriate subscribers while IGMP throttling and filtering restrict each subscriber on a port level to prevent unauthorized multicast access.

Enterprise Level Management

The Jetstream TL-SL2428P V4 network switch supports various user-friendly standard management features, such as ab intuitive web-based Graphical User Interface (GUI) or standard Command Line Interface (CLI). SNMP v1/2/3 and RMON support enable the switch to be polled for valuable status information and send traps on abnormal events.

Switch Network Overview

Features

Features

  • 250 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*.
  • Gigabit Ports: 2× Gigabit RJ45 ports and 2× Combo Gigabit RJ45/SFP Ports provide high-speed connections.
  • Integrated into Omada SDN: Zero-Touch Provisioning**, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

Learn more about TP-LINK PoE technology >

Learn more about Omada Cloud SDN>

Specifications

Specifications

HARDWARE FEATURES
Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x,
IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x,
IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Interface

24 × 10/100Mbps RJ45 Ports (Auto-Negotiation/Auto-MDI/MDIX)
2 × 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto-MDI/MDIX)
2 Combo Gigabit Uplink RJ45/SFP Ports
Network Media

10BASE-T: UTP Cat 3/4/5 cable (max 100 m)
100BASE-TX/1000BASE-T: UTP Cat 5/5e+ cable (max 100 m)
1000BASE-X: MMF, SMF
Fan Quantity

2
Physical Security Lock

Yes
PoE Budget

250 W
Dimensions (W × D × H)

17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting

Rack Mountable
Max Power Consumption

18.8 W (220 V/50 Hz, no PD connected)
286.7 W (220 V/50 Hz, with 250 W PD connected)
Max Heat Dissipation

64.1 BTU/h (no PD connected)
977.6 BTU/h (with 250 W PD connected)
PERFORMANCE
Switching Capacity

12.8 Gbps
Packet Forwarding Rate

9.5 Mpps
MAC Address Table

8 K entries
Jumbo Frame

9216 Bytes
SOFTWARE FEATURES
Quality of Service

802.1p CoS/DSCP priority
8 priority queues
Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control (Port/Flow rating limit)
Smoother Performance
Actions for flows: Mirror, Redirect, Rate Limit, QoS Remark
Storm Control: Multiple modes (kbps/ratio/pps), Broadcast/Multicast/Unknown-Unicast Control
L3 Features

16 IPv4/IPv6 interfaces
Static Routing (48 static routes)
Static ARP (128 entries), 316 ARP entries, Proxy ARP, Gratuitous ARP
DHCP Server, DHCP Relay (interface & VLAN), DHCP L2 Relay
L2 Features

Link Aggregation (static & LACP, up to 8 groups/ports)
Spanning Tree (802.1D/STP, 802.1w/RSTP, 802.1s/MSTP + security)
Loopback Detection (port & VLAN)
Flow Control (802.3x, HOL prevention)
Mirroring (port, one-to-one, many-to-one, Tx/Rx/Both, CPU)
L2 Multicast

Supports 511 IGMP groups (v1/v2/v3)
IGMP Snooping, Querier, Fast Leave, Authentication
MLD Snooping (v1/v2), MVR, Multicast Filtering (256 profiles × 16 entries)
Advanced Features

Automatic Device Discovery
Batch Configuration & Firmware Upgrade
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
IPv6 Support

IPv4/IPv6 dual stack
MLD Snooping, ICMPv6, TCPv6/UDPv6
DHCPv6 Client, Ping6, Tracert6, Telnet6, IPv6 SNMP/SSH/SSL, HTTP/HTTPS, TFTP
VLAN

4 K VLAN groups, 802.1Q, MAC/Protocol/Private VLAN, QinQ (port/selective), GVRP, Voice VLAN
Access Control List

Time-based ACL, MAC/IP ACL (source/dest MAC, VLAN ID, user priority, EtherType),
IP ACL (source/dest IP, fragment, protocol, TCP/UDP port, DSCP/TOS, user priority),
Combined & Packet Content ACL, IPv6 ACL, Policies (mirror, redirect, rate limit, remark)
Security

IP-MAC-Port Binding (DHCP/ARP inspection, source guard)
IPv6-MAC-Port Binding (DHCPv6/ND inspection, source guard)
DoS defense, static/dynamic port security (64 MACs/port)
Storm control, IP/Port/MAC access control
802.1X (port/MAC auth, MAB, guest VLAN, RADIUS), AAA (TACACS+)
Port isolation, HTTPS/SSH CLI
MIBs

MIB II, Interface, Ethernet, Bridge, P/Q-Bridge, RMON1/2/3, Radius Auth/Acct,
Remote Ping/Traceroute, TP-Link private MIBs
MANAGEMENT
Omada App

Yes, via Omada Cloud Controller (not supported on v2),
OC300, OC200, Omada Software Controller
Centralized Management

Omada Cloud Controller, OC300, OC200, Omada Software Controller
Cloud Access

Yes, via Omada Cloud Controller, OC300, OC200, Omada Software Controller
Zero-Touch Provisioning

Yes (requires Omada Cloud Controller; not supported on TL-SG2428P v2)
Management Features

Web GUI, CLI (console/telnet), SNMPv1/v2c/v3, RMON, SDM Templates,
DHCP/BOOTP Client, Dual Image/Config, CPU Monitoring, Cable Diagnostics,
EEE, SNTP, System Log
OTHERS
Certification

CE, FCC, RoHS
Package Contents

TL-SL2428P
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
System Requirements

Windows 98SE/NT/2000/XP/Vista/7/8, Mac OS, NetWare, UNIX, Linux
Environment

Operating Temperature: 0 °C–50 °C (32 °F–122 °F)
Storage Temperature: –40 °C–70 °C (–40 °F–158 °F)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing

Additional Information

Additional Information

Ethernet Switch Accessories

An Ethernet network switch is a telecommunication device that receives data transmitted from a connected device and relays it to a specific device. Ethernet switches create separate collision domains per switch port, allowing for simultaneous data transfers to occur without interference. They also reduce the number of broadcast domains, and don't require heavy CPU usage. The Ethernet switch manages the flow of network traffic more efficiently and in a safer manner than repeater hubs. It allows for the flow of data between connected devices. Ethernet switches come in both managed and unmanaged varieties. Unmanaged switches are the easy to install, plug and play variety. To learn more about our switches please visit our overview page. Our Switches can be combined with a wide array of products.

What's in the box?

What's in the box?

  • Qty 1 - TL-SL2428P (24-Port Gigabit Smart Switch with 4 SFP Slots)
  • Qty 1 - Power Cord
  • Qty 1 - Installation Guide
  • Qty 1 - Rackmount Kit (includes mounting brackets and screws)
  • Qty 4 - Rubber Feet (for desktop placement)
