28-Port Gigabit Easy Smart Switch with 24-Port PoE+

by TP-Link
Sold out

FCC Logo   ROHS Logo PoE+ Capable


28-Port Gigabit Easy Smart Switch with 24-Port PoE+

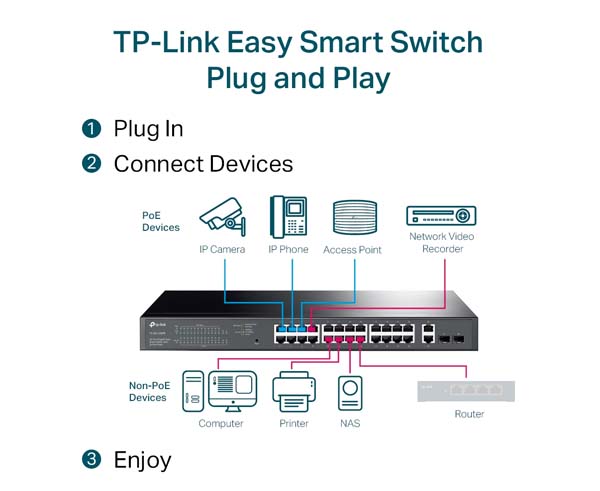

Multiple Application Scenarios

The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Switch Network Overview

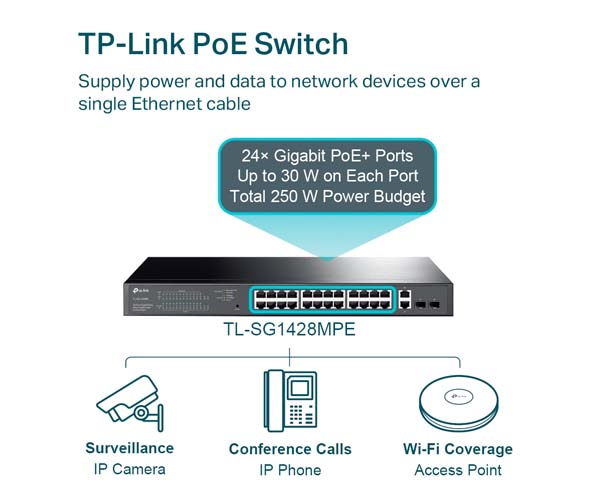

Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 24× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

Value-Added Features Bring Unexpected Experiences

  • QoS for a Lag-Free Experience Ensures smooth traffic for latency-sensitive applications, such as voice and video
  • IGMP Snooping for Multicast Optimization Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.
  • VLAN for Security Helps to create a network with higher security and better overall performance by dividing the network into smaller groups

  • Making Management Easy

    TL-SG1428PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

    Multiple Factors Guarantee Stable Operation

  • System Self-Healing with PoE Auto Recovery The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.
  • Intelligent Power Management to Prevent Power Overload Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation.
  • Great Compatibility with PD Detection Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

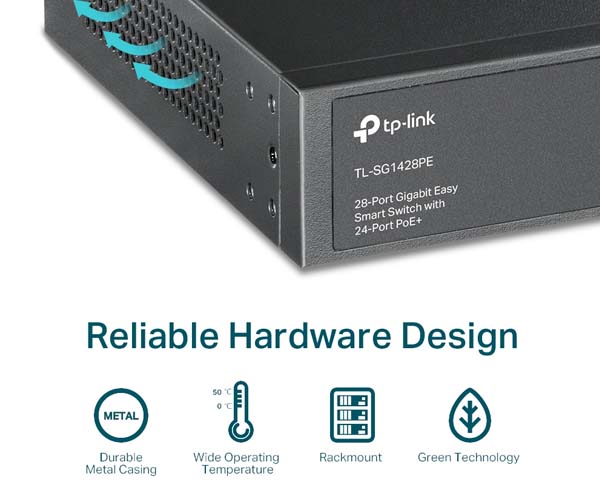

  • Wide Operating Temperature with Good Heat Dissipation

    Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.



    • 24 x 10/100/1000Mbps RJ45 PoE+ ports switch with 2 Ethernet copper and 2 SFP fiber uplink ports
    • PoE power budget is up to 250 W*, making it ideal for small to medium business surveillance systems
    • Priority Mode helps to guarantee the quality of sensitive application like video monitoring
    • PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
    • QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
    • Intelligent power management can protect the switch from overload



      26 x 10/100/1000 Mbps RJ45 Ports
      2 x Gigabit SFP Slots
    Fan Quantity  2 Fans
    Power Supply 100-240 V AC~50/60 Hz
    PoE + Ports(RJ45)

    Standard:802.3at/af compliant

    PoE+ Ports: 24 Ports

    Power Budget: 250 W

    Dimensions (W x D x H)

     17.3 x 8.7 x 1.73 in

    (440 x 220 x 44 mm)


    19" 1U Rack Mountable

    Max Power Consumption

    27 W (no PD connected)

    304.7 W (with 250W PD connected)

    Max Heat Dissipation

    179.1 BTU/hr (no PD connected)

    1656.2 n BTU/hr (with 250 W PD connected)

     Switching Capacity  54 Gbps
    Packet Forwarding Rate 41.7 Mbps
    Mac Address Table  8 K
    Packet Buffer Memory  4.1 Mbit
    Jumbo Frame 9 KB
    Certification CE, FCC, RoHS
    Package Contents


    Power cord

    Installation Guide

    Rackmount Kit

    Rubber Feet


    Operating Temperature: 0°C~50°C (32°F~122°F)

    Storage Temperature: -40°C~70°C (-40°F~158°F)

    Operating Humidity: 10% ~ 90% non-condensing

    Storage Humidity: 5%~90% non-condensing

    Additional Information

    Ethernet Switch Accessories

    An Ethernet network switch is a telecommunication device that receives data transmitted from a connected device and relays it to a specific device. Ethernet switches create separate collision domains per switch port, allowing for simultaneous data transfers to occur without interference. They also reduce the number of broadcast domains, and don't require heavy CPU usage. The Ethernet switch manages the flow of network traffic more efficiently and in a safer manner than repeater hubs. It allows for the flow of data between connected devices. Ethernet switches come in both managed and unmanaged varieties. Unmanaged switches are the easy to install, plug and play variety. To learn more about our Ethernet Switches please visit our overview page. Our Switches can be combined with a wide array of products such as:

    What's In The Box

    What's In The Box

    • TL-SG1428PE Switch
    • Power Cord
    • Quick Installation Guide
