Description

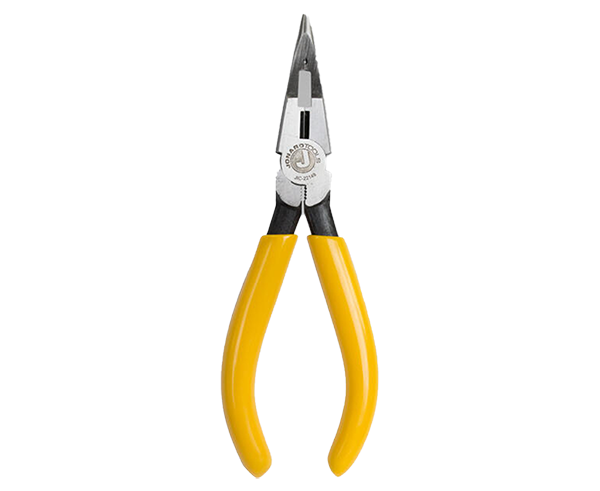

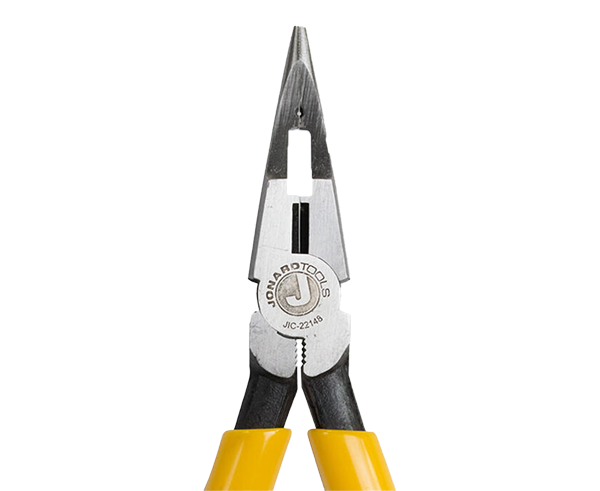

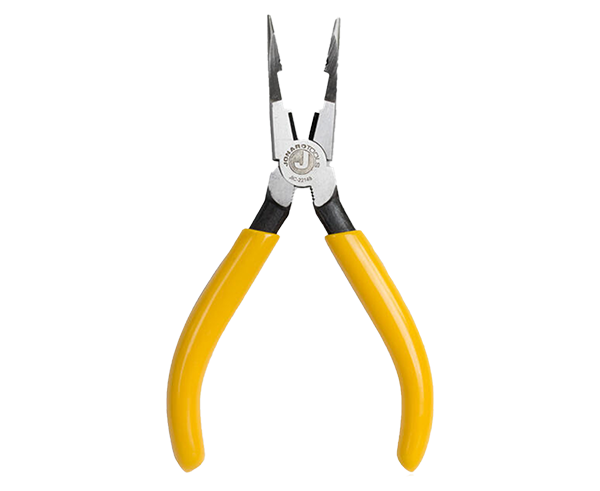

JIC-22148 | 5-in-1 Combo Crimper, Long Nose Pliers

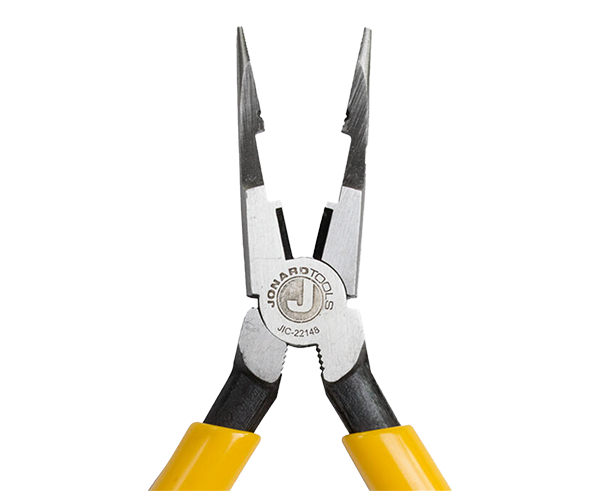

Jonard’s long nose pliers are made of heat treated chrome vanadium steel with induction-hardened cutting edges for maximum strength and durability.
Features
Features

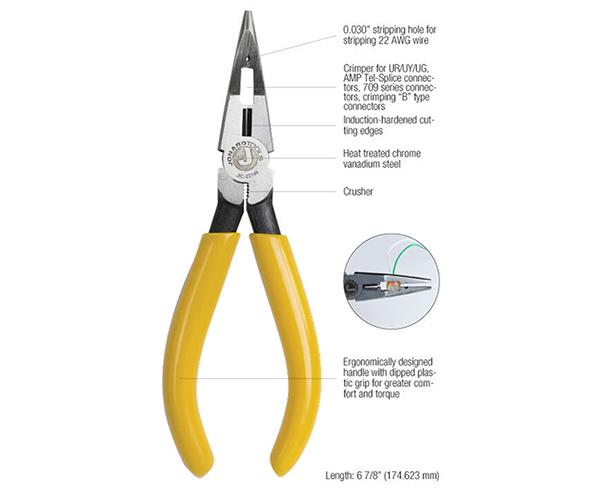

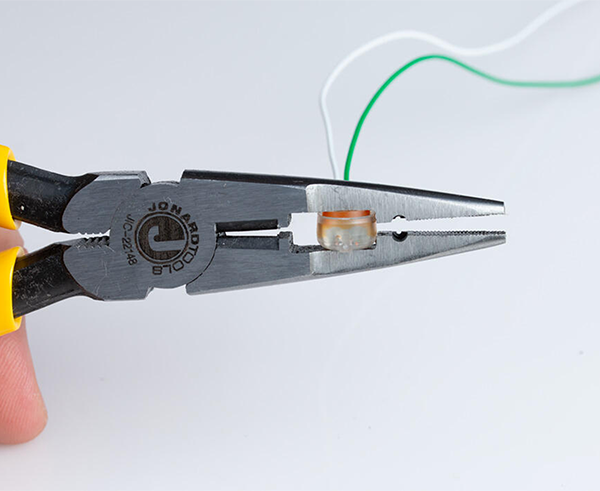

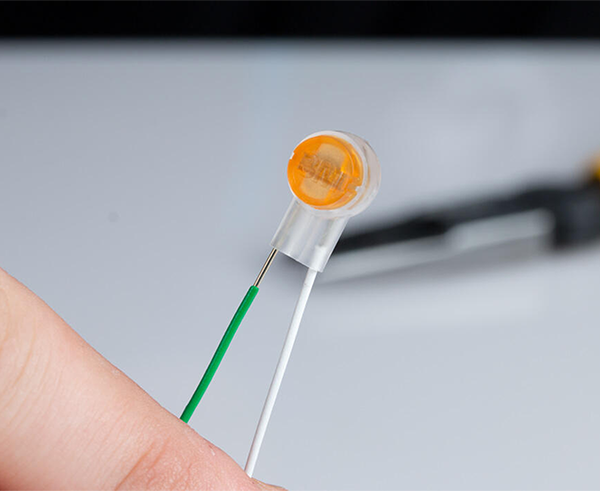

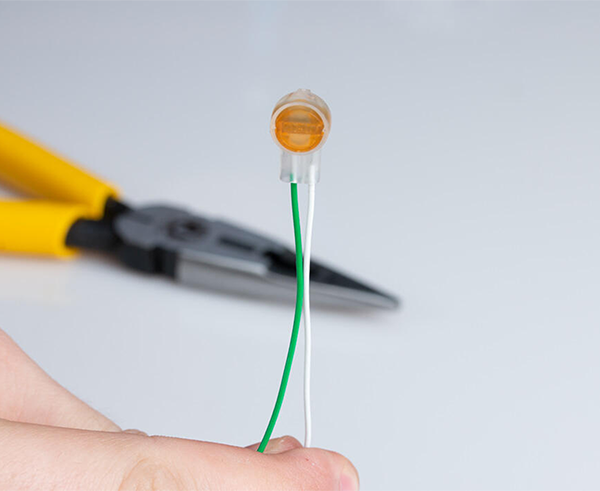

- 5-in-1 tool: crimper for UR/UY/UG, AMP Tel-Splice connectors, 709 series connectors, crimping “B” type connectors, and long nose pliers

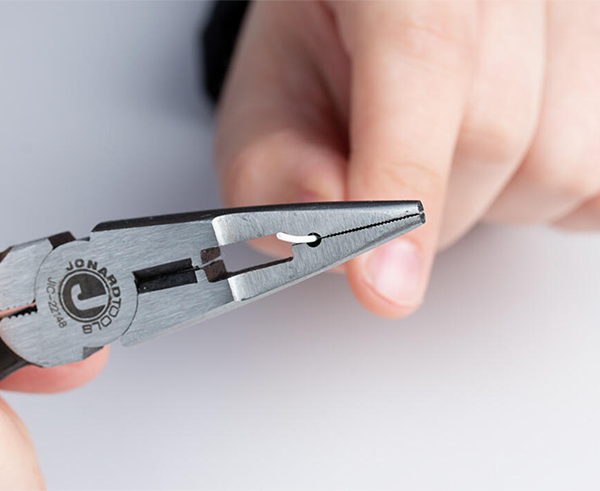

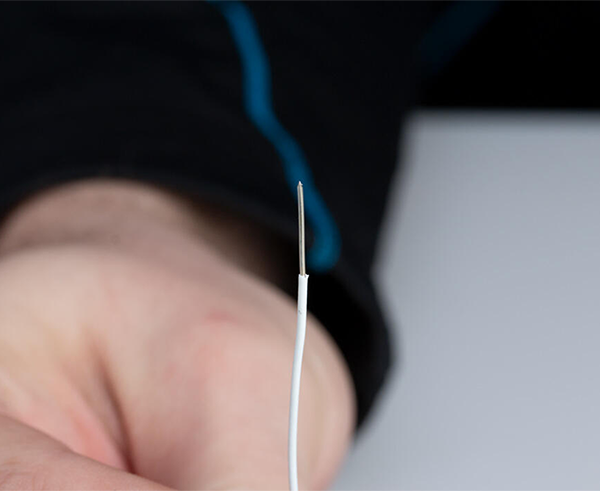

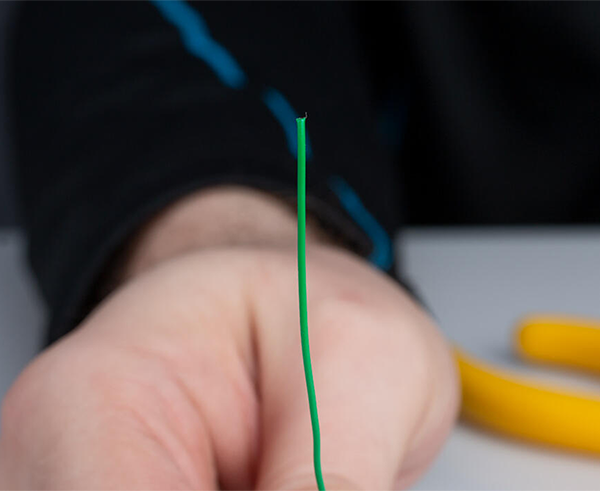

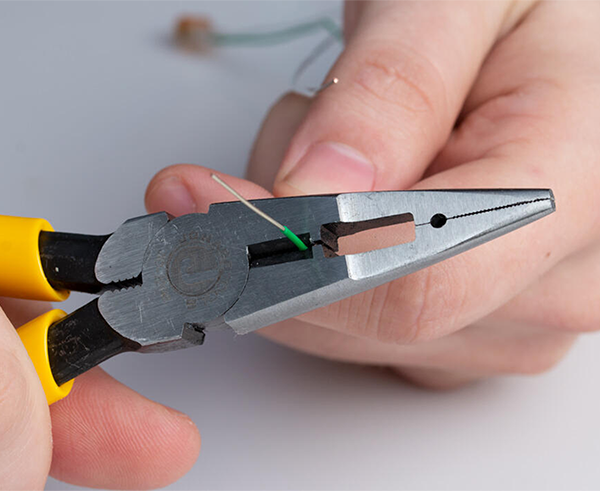

- Tool includes crusher, cutter, and 0.030” stripping hole for stripping 22 AWG wire
- Ergonomically designed handle with dipped plastic grip for greater comfort and torque
Specifications

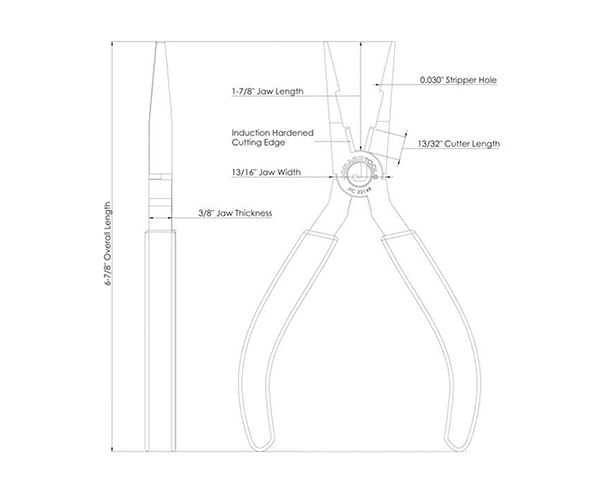

| TECHNICAL SPECIFICATIONS | |
|---|---|
| TOOL SPECIFICATIONS | |
| CUT TYPE | SIDE-CUT |
| CUTTER LENGTH | 13/32” (10.318 MM) |
| JAW LENGTH | 1-7/8” (47.63 MM) |
| JAW THICKNESS | 3/8” (9.53 MM) |
| JAW WIDTH | 13/16” (20.64 MM) |
| STRIPPING HOLE | 0.030” (0.76 MM) |
| MATERIAL | CHROME VANADIUM STEEL |
| PHYSICAL CHARACTERISTICS | |
| LENGTH | 6-7/8” (174.623 MM) |
| WEIGHT | 0.455 LBS (206.38 G) |
| IDENTIFICATION | |
| UPC # | 811490010710 |
Additional Information
| Jonard Tools Crimping Pliers (JIC-891 & JIC-22148) |
|---|
What’s In The Box
What’s In The Box
- Qty 1 - 5-in-1 Combo Crimper, Long Nose Pliers
