LANIDgiga Port Finder

$313.30
SKU: TL4-4472
Various lead times may apply to this product. Please contact us for more details.

Description

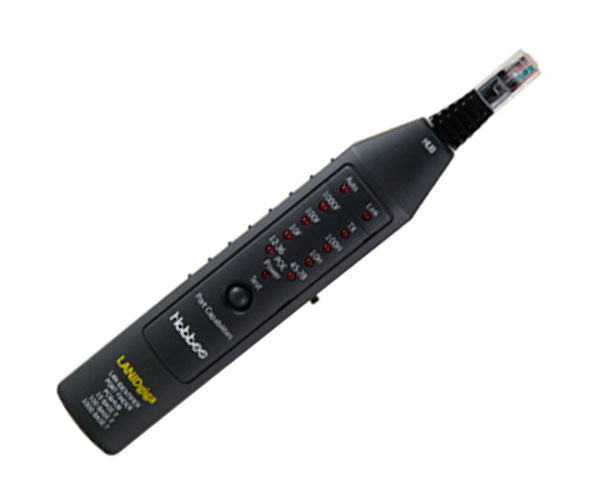

LANIDgiga Port Finder

The LANIDgiga port finder is an advanced edition of the LANID Pro with more capabilities . It is a high efficiency diagnostic tool for network installation and troubleshooting. With the LANIDgiga port finder, network administrators can quickly confirm status of an active port. It will diagnose the problems during the LAN installation or maintenance on LAN devices or wall ports. The unit indicates whether the LAN equipment being tested supports the following topologies and capabilities:

Applications

The unit indicates whether the LAN equipment being tested supports the following topologies and capabilities:

  • 1000 BASE–T full duplex
  • 10/100 auto negotiation
  • 100 BASE–Tx full duplex
  • 100 BASE–Tx half duplex
  • 10 BASE–T full duplex
  • 10 BASE–T half duplex

Also the unit integrated the POE function, it identifies the existence of POE and the type of the PSE (power sourcing equipment) on the entire networks. The unit is also equipped with a port-finder function. The port-finder feature helps to find out the workstation.

Specifications

Specifications
Port Type 2 x RJ-45 Ports
Battery 2 x AAA battery
Display LED Indication
Dimensions 215 x 38 x 36mm
Weight 120g
Operating Temperature 0℃ to 40℃

Additional Information

LANID giga also has an integrated PoE function to identify the existence of PoE and the type of PSE (power sourcing equipment) on the entire networks .

What's more, the LANID giga is also equipped with a port-finder feature that helps to determine the workstation's corresponding port: Just connect LANID giga to an unknown or unsure wall port and it will send a discontinuity 10/100 /1000 auto-negotiation signal to communicate with Switch/Hub. LANID giga is a high efficiency diagnostic tool for all your networking and troubleshooting needs.

What's in the Box

  • Qty 1 - LANIDgiga Port Finder
