LANsmart Pro - RoHS Compliant

$395.97
SKU: TL4-4981
Various lead times may apply to this product. Please contact us for more details.

Description

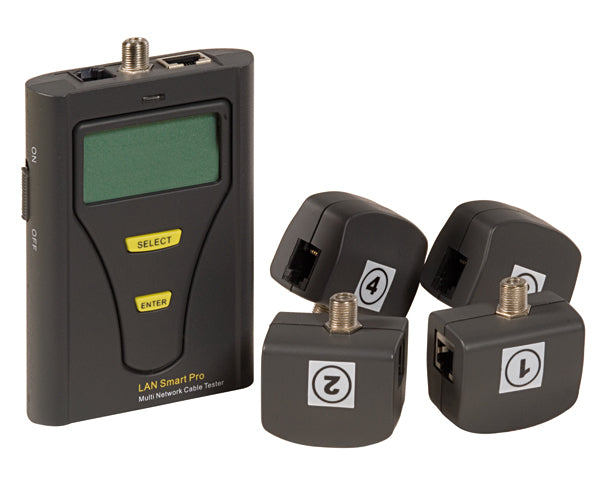

LANsmart Pro Link Tester for LAN, Telephone, and Coax Cable Testing

The LANsmart Pro version is the next generation of LANsmart, the most popular and versatile cable tester for technicians on the market. Link tester has all the same great functions as the original LANsmart (hand-held size, cable length meter, port-finder, etc.) This link tester also tests telephone and coaxial cables, not just LAN networks. The LANsmart Pro also incorporates both digital & analog tone generators and remote identifier functions.

Features

  • All-in-one tester: wire map, twisted mapping, short location, quick test, cable length test, tone generator and port finder
  • Wire map for opened, short, reversed, crossed, split pairs, mis-wire and shield continuity
  • Wire map results are displayed in pin-to-pin format
  • Indicates the I.D number of the remote identification
  • Short Location: locates short position whether short is in the near end or far end of the cable
  • Measures twisted pairs, map, and length of Cat5, Cat5E and Cat6 cables without remotes
  • Measures 2/4/6 pins telephone cable length and faults
  • Self–calibrating function allows for increased measuring accuracy when testing length of non–standard cables
  • Displays measurements in both meter and ft
  • Quick test function: memorizes a cable’s pin out
  • Port–finder function: locates corresponding socket on 10/100M hub/switch
  • With LCD and beeper indicator
  • RJ–45/RJ–11 port protection from damage due to high voltage from telephone line

Specifications

SPECIFICATIONS
Display 128x64 Dot Martrix LCD
Connector Type RJ-45/RJ-11/COAX (main and remote)
Accuracy

±2m less than 10m (±6.56 ft. less than 32.81 ft.)

±5% over 10m (32.81 ft.)

Test Range for Cable Length 1.2 to 300m (3.94 to 984 ft.)
Split Pairs Detection Minimum 1.2m (3.94 ft.)
Tone Generator 1kHz
Operating Temperature 0ºC to 50ºC (32ºF to 122ºF)
Storage Temperature -30ºC to 50ºC (–32ºF to 122ºF)
Humidity 10% to 90%
Master Dimensions 120 x 80x 33mm
Remote Dimensions 44 x 42 x 28.5mm
Battery DC 6V; AAA Alkaline batteries x 4

What's In The Box

  • Qty 1 - LANsmart Pro - RoHS Compliant
