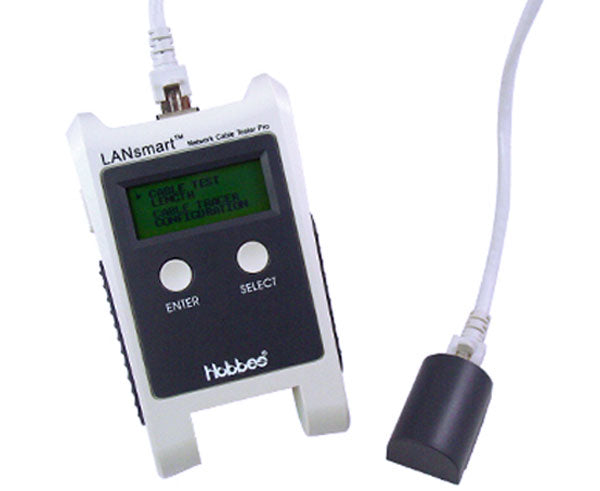

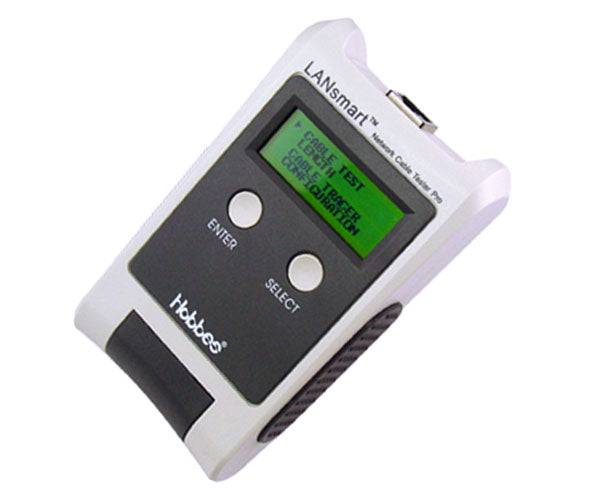

LANsmart TDR Network Cable Tester
The LANsmart is a hi-tech, multifunctional network cable tester. In addition to detecting basic wire faults like open, short, miss-wired and split pairs, it can also measure the cable length using TDR (Time Domain Reflectometers) technology in real time. The LANsmart network cable tester displays the results in pin-to-pin format. When there is any open/short faults in the cable, the LANsmart will detect, locate, and display the faults.
Features
Features
- Incorporates TDR technology
- Tests for shorts, opens, miswires, reversals, split pairs, and shield continuity
- Built-in PORTfinder to locate corresponding sockets on hub/switch
- Measures length of UTP and STP cable without remotes
- Calibrated velocity propagation ability for non-standard cables to increase measuring accuracy
- Tone generator sends signals to either all or selected pin conductor

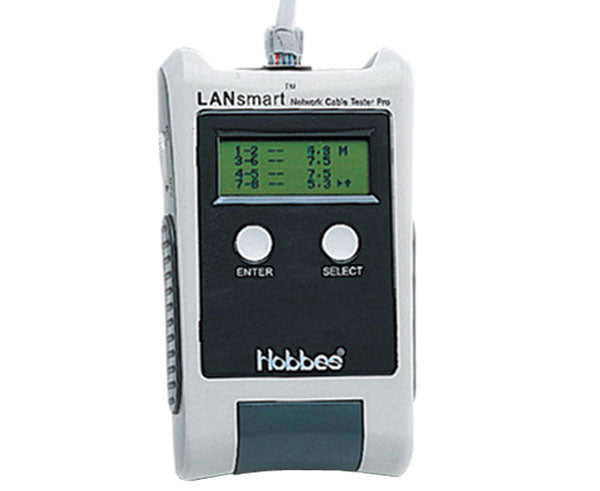

- Test results displayed in pin-to-pin/wiremap format
- Compatible with any twisted pair of category 3/4/5 and 6 cables
Specifications
Specifications
| SPECIFICATIONS | |
|---|---|
| Display | 122x32 (56 x 29mm) LCD |
| Connector Type | RJ-45 |
| Accuracy |
±2m＜10 m (± 6.56 Ft. < 32.81 ft.) ± 5%> 10m 32.81 ft.) |
| Test Range for Cable Length | 1.2 to 300m (3.94 to 984ft.) |
| Split Pairs Detection | Minimum1.2 m (3.94 ft.) |
| Tone Generator | 1 kHz |
| Operating Temperature | 0ºC to 50ºC (32ºF to 122ºF) |
| Storage Temperature | 30ºC to 50ºC (–22ºF to 122ºF) |
| Humidity | 10% to 90% |
| Master Dimensions | 138 x 82 x 32mm |
| Remote Dimensions | 40 x 28 x 24mm |
| Master Weight | 154 g |
| Remote Weight | 15 g |
| Power Source | 1.5V AAAx3 |
What's In The Box
What’s In The Box
- Qty 1 - LANsmart TDR, Network Cable Tester - RoHS Compliant
