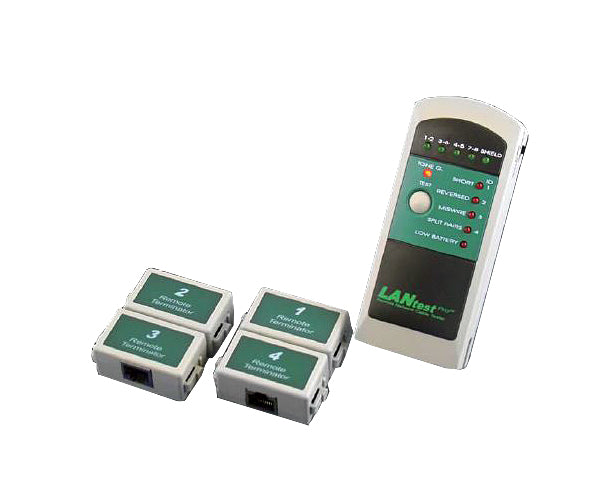

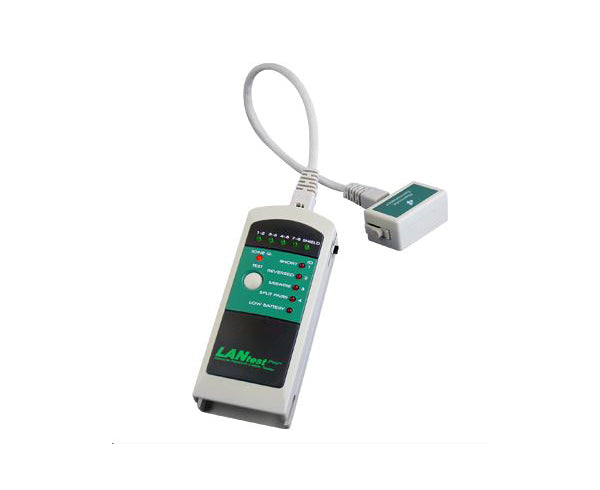

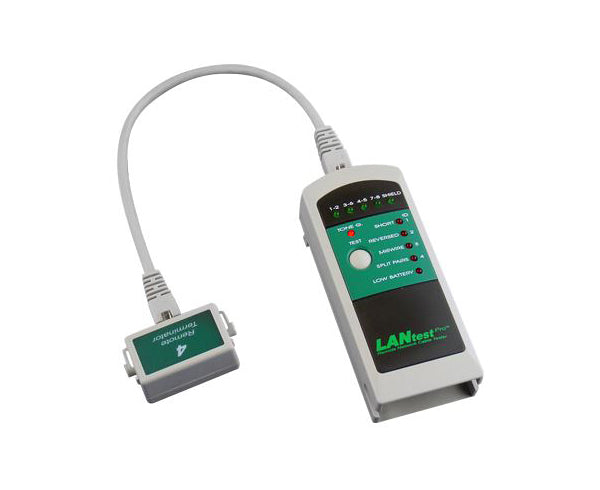

LANtest Pro, Lan Tester with 4 Remotes

$122.33
SKU: TL4-1187
Various lead times may apply to this product. Please contact us for more details.

Description

LAN Tester, LANtest Pro with 4 Remotes

The LANtest Pro is a small hand held LAN tester that enables the user to quickly read the status of Ethernet twisted pair cables. It tests for faults such as open circuit, shorts, crossed pairs, reversed pairs and split pairs in seconds. The Tone Generator function of this LAN tester can send a signal through your installed cables and the probe can then trace to locate the fault.

Features

  • Tests for wiring faults of open, short, reversal, crossed and split pairs
  • Split pair fault detection at minimum 40cm cable length
  • Verification of shield integrity
  • Specially designed remote units that enables one person to test installed cables
  • Easy to read fault display and high speed testing
  • Debug mode and detailed fault identification results
  • Auto sleep mode and power off switch to decrease power
  • Low battery indicator

Specifications

SPECIFICATIONS
Display LED
Connector Type RJ-45
Operating Temperature 0 to 40ºC
Storage Temperature –20 to 60ºC
Humidity 95% relative humidity (non-condensing)
Master Dimensions 124 x 55 x 30mm
Remote Dimensions 29 x 55 x 22mm
Master Weight 90 g
Remote Weight 90 g
Power Source 1.5VAAAx4

What's In The Box

  • Qty 1 - LANtest Pro, Lan Tester with 4 Remotes
