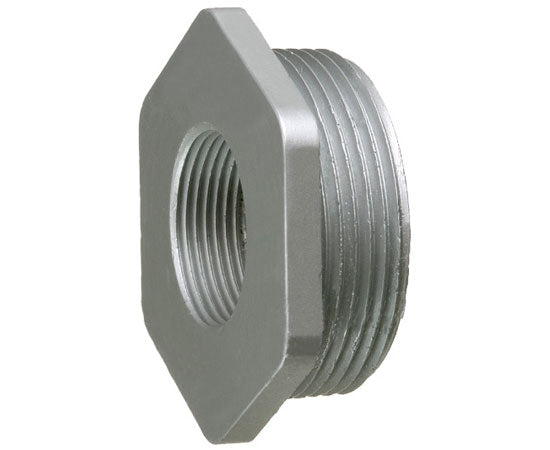

Larger Reducing Bushings Zinc die-cast 2"-1/2" x1-1/4" to 4" x 3-1/2"

$18.18
SKU: 1274
Trade Size
Various lead times may apply to this product. Please contact us for more details.

Description

Description

Reducing bushings, unlike reducing washers, maintain grounding path and are able to pass UL high current testing. These Bushings are made of zinc die-cast and are available in multiple dimensions.

Specifications

Specifications

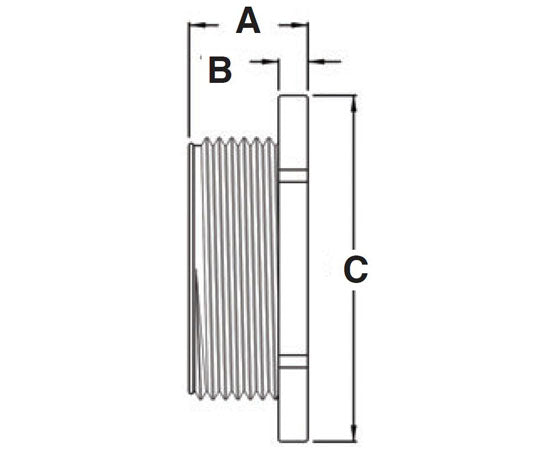

Larger Reducing Bushings Zinc die-cast  2"-1/2" x1-1/4" to 4" x 3-1/2" diagram

Part Number Trade Size Dim A Dim B Dim C
NPNB-1274 2-1/2" x 1-1/4" 2.090 .430 2.845
NPNB-1275 2-1/2" x 1-1/2" 1.125 .430 2.820
NPNB-1276 2-1/2" x 2" 1.200 .300 3.485
NPNB-1283 3" x 1" 1.785 .500 4.075
NPNB-1284 3" x 1-1/4" 2.100 .410 3.445
NPNB-1285 3" x 1-1/2" 2.020 .440 3.460
NPNB-1286 3" x 2" 2.000 .400 3.380
NPNB-1287 3" x 2-1/2" 1.390 .375 4.395
NPNB-1296 3-1/2" x 2" 1.905 .565 4.575
NPNB-1297 3-1/2" x 2-1/2" 2.020 .450 3.945
NPNB-1298 3-1/2" x 3" 1.385 .380 4.920
NPNB-1307 4" x2-1/2" 2.070 .570 5.250
NPNB-1308 4" x 3" 1.775 .500 5.250
NPNB-1309 4" x 3-1/2" 1.400 .375 5.420

Reducing bushings are rain tight in threaded hubs. Also, reducing bushings, unlike reducing washers, maintain grounding path and are able to pass UL high current testing.

What's in the box?

What's in the box?

  • Qty 1 - Larger Reducing Bushings Zinc die-cast 2"-1/2" x1-1/4" to 4" x 3-1/2"
