LED, LCD & Plasma Flat Ceiling TV Mount 32" to 55" Tilt

SKU: PP6-7203-CM
Various lead times may apply to this product. Please contact us for more details.

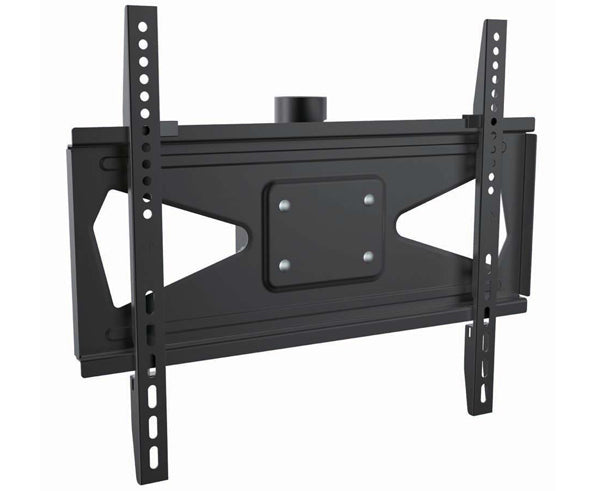

LED, LCD & Plasma Flat TV Ceiling Mount 32" to 55" Tilt

This TV mount ceiling bracket is designed to mount one LCD or LED TV on 1-1/2" NPT (National Pipe Thread) standard pipe. Applicable screen size is 32" to 55", and it can be tilted down to 12 degrees. Maximum load capacity is 110 pounds. Comes with a cable management port to hide cables.



  • For 32" to 55" screen size LCD or LED TV

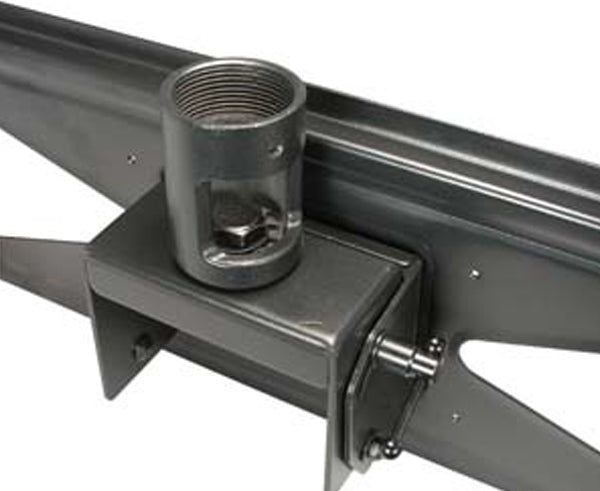

  • Designed for 1.5" NPT pipe mount
  • Tilt angle: 5 degree up ~ +12 degree down
  • Max Load Capacity: 110lbs (50kg)
  • Universal mounting pattern
  • VESA hole pitch: Max: 400 x 400mm (15.75" x 15.75")
  • Design and construction: Solid toughened steel construction
  • Durable scratch resistant finish in black
  • Cable management port
  • Mounting hardware included
  • RoHS compliant

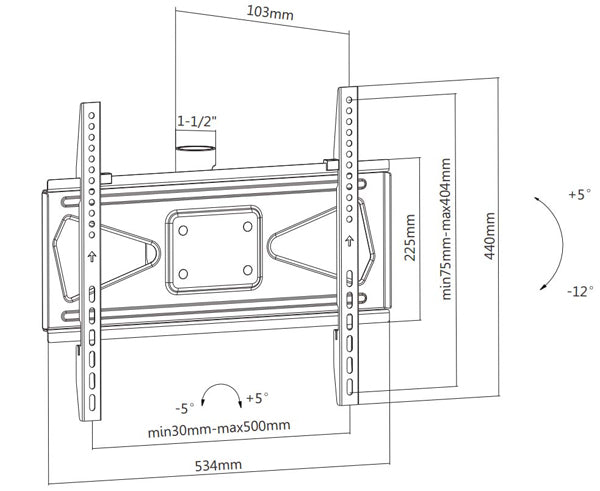

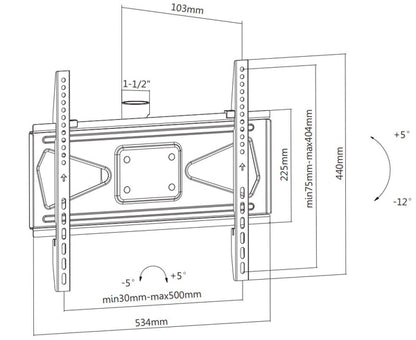

Note: Supported screen size is provided as a reference only. Please check bracket dimensions above, and make sure overall bracket size does not exceed TV.



Additional Information

Installation Instructions
