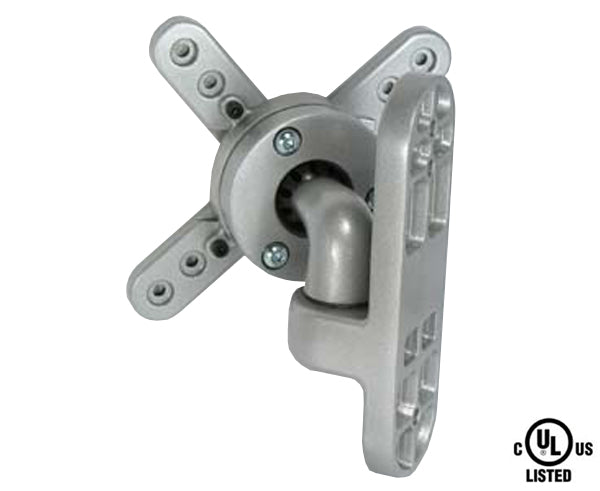

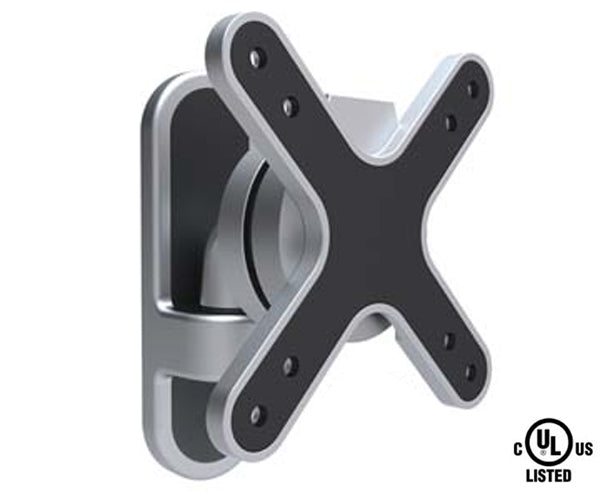

LED, LCD and Plasma Flat TV Wall Mount 13" to 27" Tilt and Swivel, 2.6" Arm
Note: Supported screen size is provided as a reference only. Please check bracket dimensions in the specifications tab below, and make sure the overall bracket size does not exceed your TV.
Description
LED, LCD & Plasma Flat TV Wall Mount 13" to 27" Tilt and Swivel, 2.6" Arm

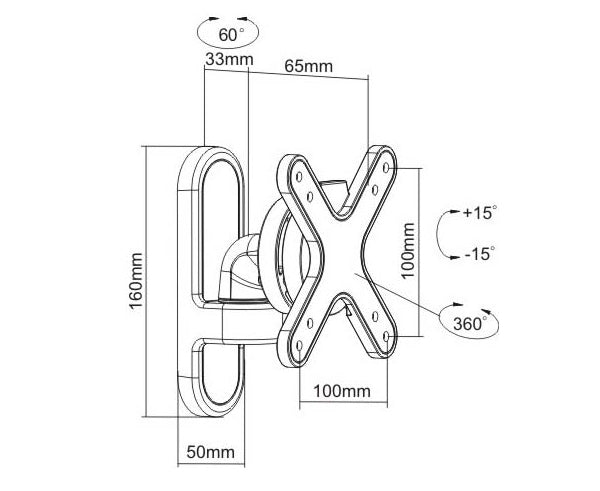

This is an articulating light duty mid size bracket for 13" to 27" screen sizes with a 33 lbs. weight capacity. It can swivel plus/minus 90 degrees, and tilt plus or minus 15 degrees (up or down). The mounting plate extends 97mm (3.8") from the wall.
Features
Features
- UL listed
- For 13" to 27" screen LCD/LED TV
- Tilt: -15º ~ +15º
- Swivel: 180º
- Load Capacity: 33lbs (15kg)
- TV to Wall: 97mm (3.8")
- VESA: 75x75mm, 100x100mm
- Die cast aluminum
- Mounting Hardware included
- RoHS compliant
Note: Supported screen size is shown as a guide. It may be larger or smaller as long as the weight is within the limit.
Specifications
Specifications

Additional Information
Installation Instructions
To learn more about our home theater cables, mounts and more here is a link to a page containing more information on our premium Home Theater Cables, Mounts, and More.
To learn more about our LCD Mounts here is a link to a page containing more information on our premium LCD Mounts.
What's in the box?
What's in the box?
- Qty 1 - Flat TV Mount Bracket 13" to 27" Tilt and Swivel, 2.6" Arm Silver
