Description
Note: Supported screen size is provided as a reference only. Please check bracket dimensions in the specifications tab below, and make sure the overall bracket size does not exceed your TV.
Description

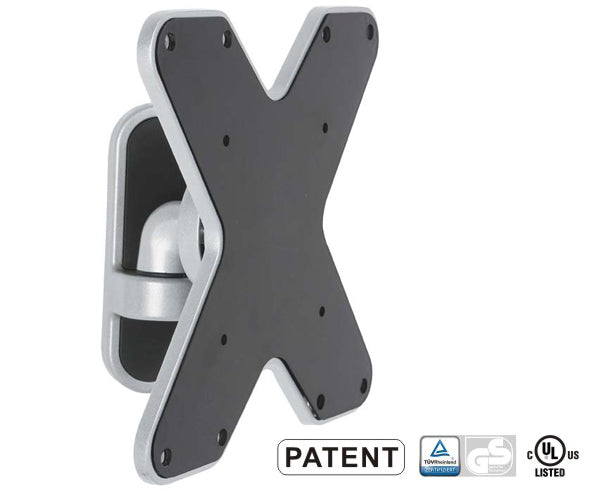

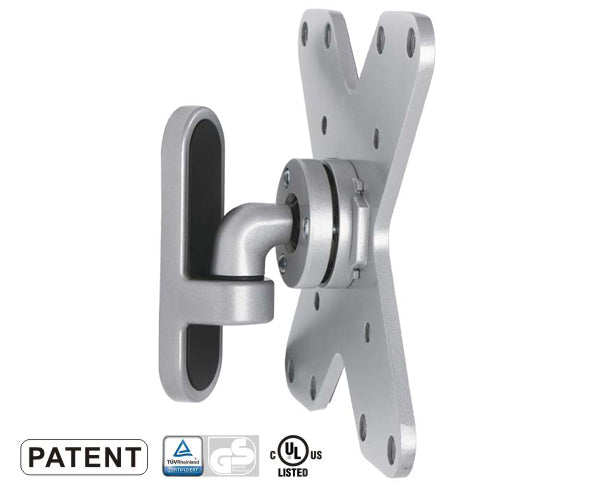

LED, LCD & Plasma Flat TV Wall Mount 23" to 42" Tilt and Swivel, 2.6" Arm
Introducing a versatile articulating mid-size bracket designed for screen sizes between 23" and 42", supporting up to 33 lbs. This mount allows for a swivel range of plus/minus 80 degrees and a tilt range of plus or minus 15 degrees (up or down). With a mounting plate extending 3.8" (97mm) from the wall, it offers flexible positioning options.

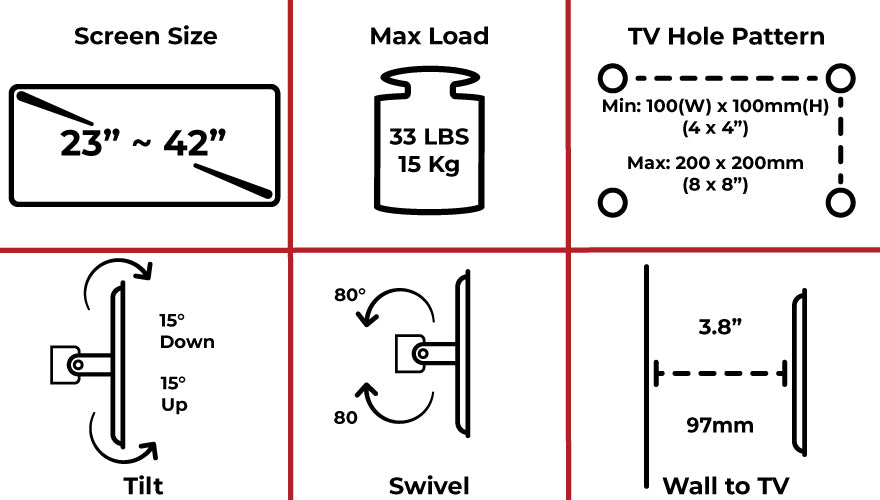

Features
Features
- UL listed
- For 23" - 42" screen LCD/LED TV
- Tilt: -15º ~ +15º
- Swivel: 80º
- Load Capacity: 33lbs (15kg)
- TV to Wall: 97mm (3.8")
- VESA: 100x100mm / 200x100mm / 200x200mm
- Die cast aluminum
- Mounting hardware included
- RoHS compliant
Note: Supported screen size is shown as a guide. It may be larger or smaller as long as the weight is within the limit.

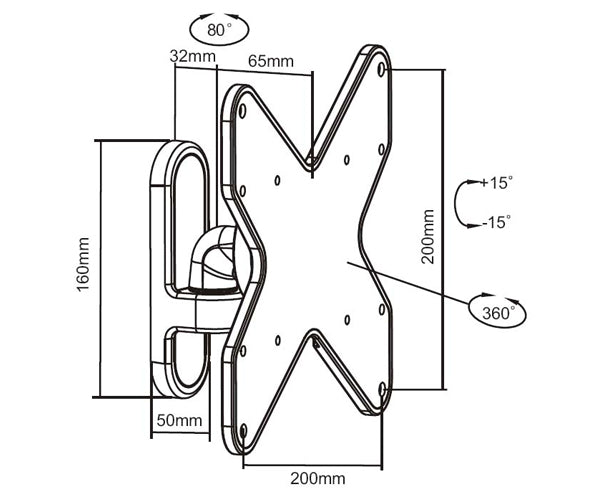

Specifications
Specifications
Additional Information
Additional Information
Installation Instructions
To learn more about our home theater cables, mounts and more here is a link to a page containing more information on our premium Home Theater Cables, Mounts, and More.
To learn more about our LCD Mounts here is a link to a page containing more information on our premium LCD Mounts.
What's In The Box
What's In The Box
- Qty 1 - Flat TV Mount Bracket 23" to 42" Tilt and Swivel, 2.6" Arm Silver
