This item is final sale and is not eligible for return, exchange, refund, or order cancellation. Please review product details carefully.
Note: Supported screen size is provided as a reference only. Please check the bracket dimensions in the specifications tab below and make sure the overall bracket size does not exceed the TV.
Description

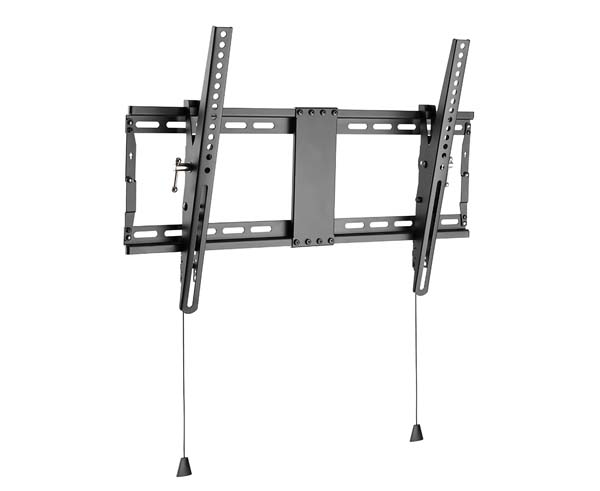

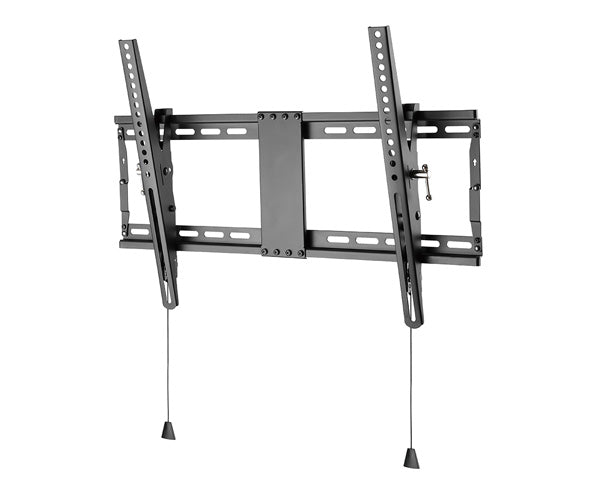

Flat Screen TV Mount for 37" to 80" size Televisions, Lockable & Tilt
This lockable tilt-angle adjustable wall bracket is perfect for hotel rooms or public place installations. Supporting most 37" to 80" flat TVs weighing up to 154 lbs, it positions the display 1.9 inches (49mm) off the wall when set straight up. Hardware is provided for wood studs or concrete wall mounting.
Features
Features
- For 37" to 80" Screen
- Tilt Angle: +3 ° to -12°
- Max Load Capacity: 154lbs (70kg)
- Universal Mounting Pattern
- VESA Hole Pitch: Max: 600mm x 400mm
- TV to Wall: 1.9" (49mm)
- Design and Construction: Solid Toughened Steel Construction
- Durable Scratch-Resistant Finish in Black
- Mounting Hardware Included
- Pad Lock Not Included
Note: The supported screen size is provided as a reference only. Please check the bracket dimensions above, and make sure the overall bracket size does not exceed your TV.
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| MATERIAL | STEEL |
| COLOR | MATTE BLACK |
| SURFACE FINISH | POWDER COATING |
| COMPATIBLE SCREEN SIZE* | 37" ~ 80" |
| MAX VESA | 600 × 400MM |
| WEIGHT CAPACITY | 154 LBS (70KG) |
| PROFILE | 1.9" (49MM) |
| TILT RANGE | -12° ~ +3° |
| INSTALLATION | SOLID WALL, DOUBLE STUD (406 / 450 / 600MM) |
| PANEL TYPE | DETACHABLE PANEL |
| WALL PLATE TYPE | FIXED WALL PLATE |
| BUBBLE LEVEL | HOOK-ON BUBBLE LEVEL (INCLUDED) |
| CABLE MANAGEMENT | NO |
| ANTI-THEFT | YES |
| FITS CURVED TV | YES |
Additional Information
To learn more about our home theater cables, mounts, and more, here is a link to a page containing more information on our premium Home Theater Cables, Mounts, and More.
To learn more about our LCD Mounts, here is a link to a page containing more information on our premium LCD Mounts.
What's In The Box
What's In The Box
- Qty 1 - Flat Wall TV Mount
- Qty 1 - Hardware Bag
