Low Voltage/LED Switching Device

by GRI
$92.00
SKU: LEDSD
Style
Various lead times may apply to this product. Please contact us for more details.

These products are all Made to Order

Which means they are non-cancelable and non-refundable

Description

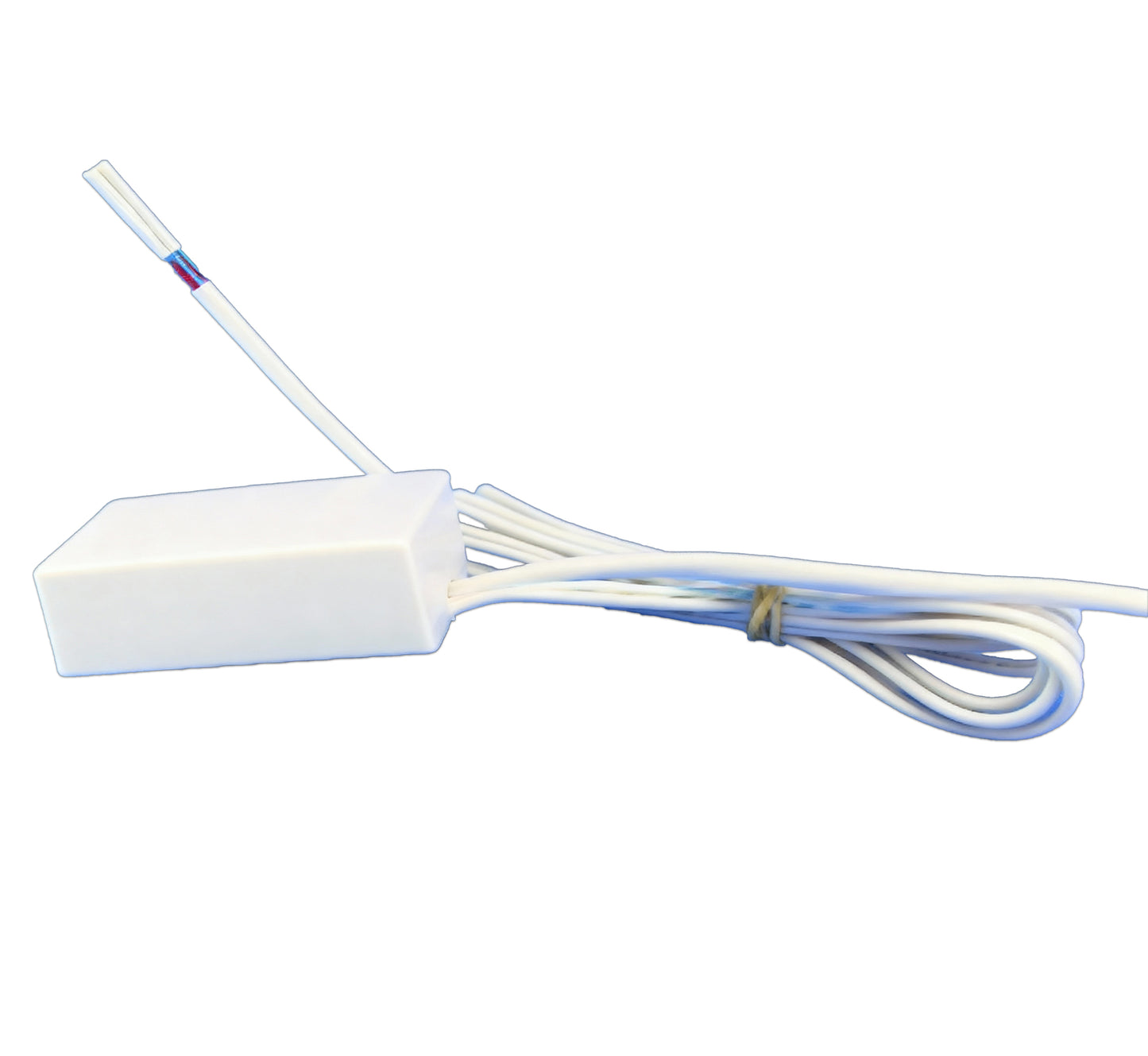

Low Voltage Switching Device

Is a 2 AMP 12/24 VDC controller with connecting wires for connecting to a DC Power Source, a DC Load and a Dry Contact Switch. ThisController is designed to Switch up to 2 Amps of DC power with a form C relay that will power devices such as small motors, relays, fans, sirens, strobes and LED lights, and capable of switching from long distances using small Ga wire and most any proximity switch or dry contact device. Open loop switch required, not included. We have a complete line of open loop switches to meet your applications.

LED Switching Device

is a 2 Amp 12/24 VDC controller with 2.1mm x 5.5mm connectors for use with LED Lighting (puck, rope, strip, track and more). Ideal for cabinets and display cases, CCTV cameras, closets, pantries etc. Includes 3030-T. An open loop switch is required

Features

  • 2 Amps switching
  • Light gauge wires
  • 12 or 24 Volt DC switching
  • Water resistant
  • Programming Options Available

Specifications

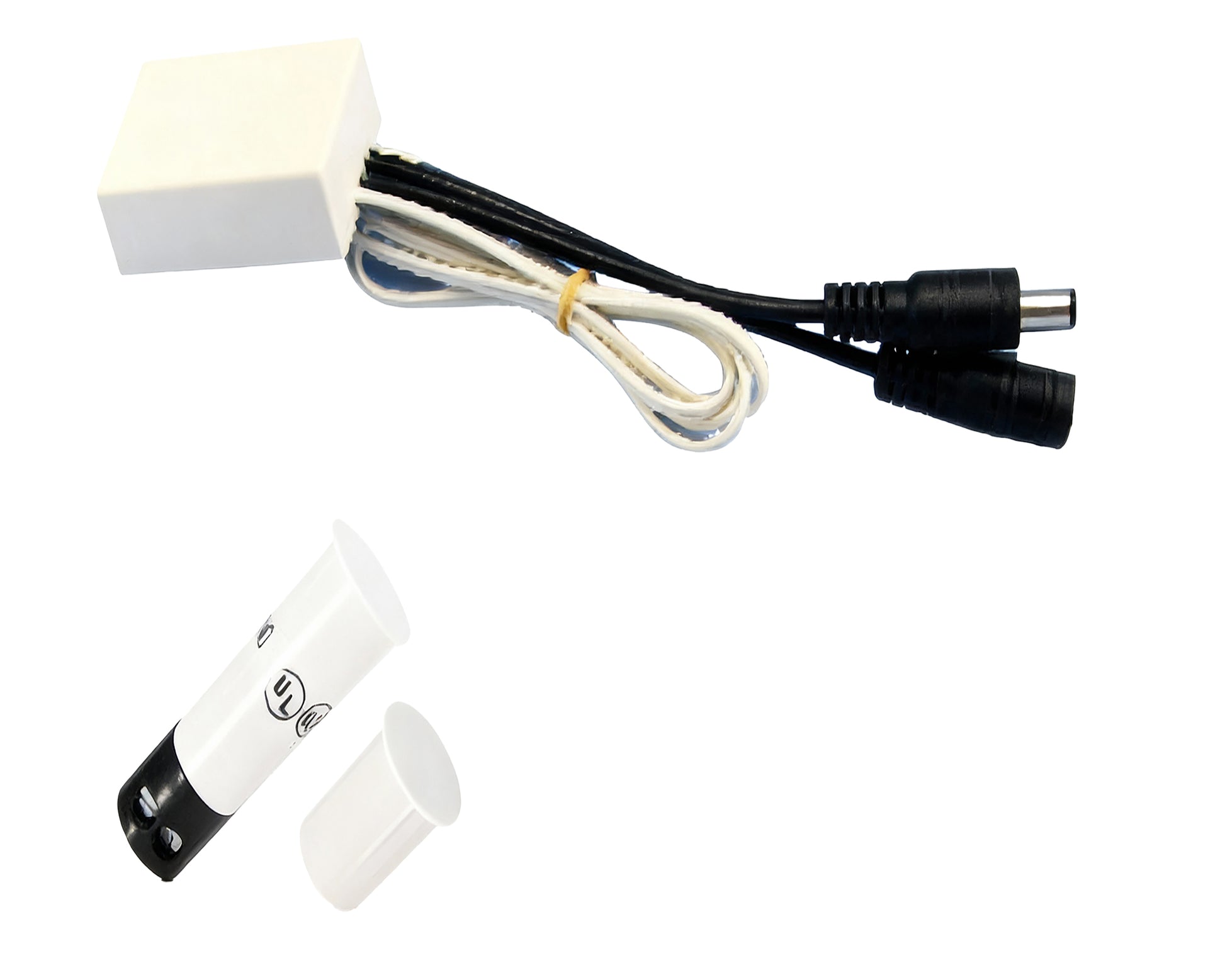

What's in the Box

  • (1) - Low Voltage or LED Switching Device
  • (1) - 2.1mm x 5.5mm connectors
  • (1) - Open loop contact switch
