Weatherproof Outlet Box - IN-and-OUT Design
Outdoor Weatherproof IN-and-OUT Outlet box
Our outdoor weatherproof low profile outlet box with In-and-Out design offers superior coverage to outlets when in use and not. The In-and-Out design is a proprietary design that makes the outlet cover a low profile when the plugs are not in use. When the plugs are in use the cover extends out to provide a deeper cavity for plugs to retain weather protection.
When power cords are plugged into the power outlets on this cover there are holes at the bottom of the box that allows the cords to stay connected to the power holes while the cover is closed. When the cover is in the IN position the holes are sealed to keep bugs out. This cover fits over all boxes or openings in new and existing projects.
- Low profile when not in use - weatherproof-while-in-use
- IN position provides a sealed box to keep bugs out
- Extends quickly and easily into the OUT position to accommodate a plug
- Fits over all boxes or openings in new or existing projects
- Installed gaskets

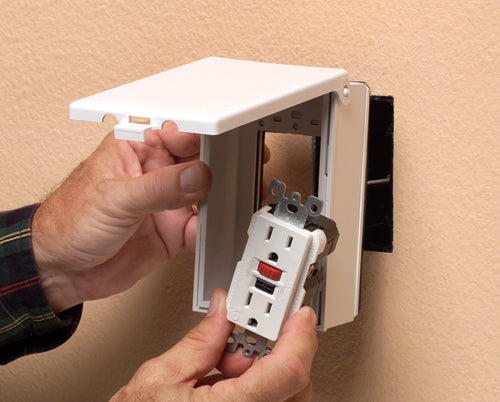

- Install option: Cover is removable for easier device installation
- Vertical and horizontal styles
- Two sizes: Standard to fit over a regular size outlet or FS box and oversized, with a one-piece base plate/gasket combination that fits larger openings or a 3.5" round outlet box

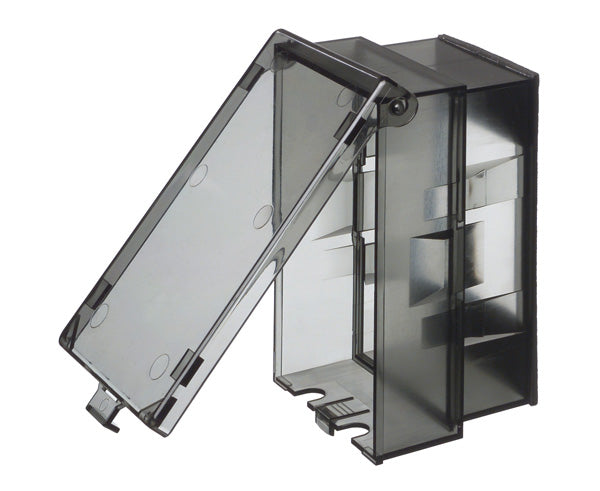

- Colors: Paintable white or clear
- UL Listed weatherproof while in use installation

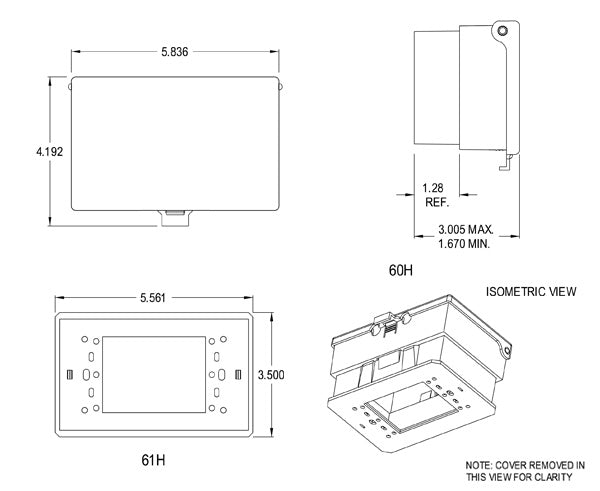

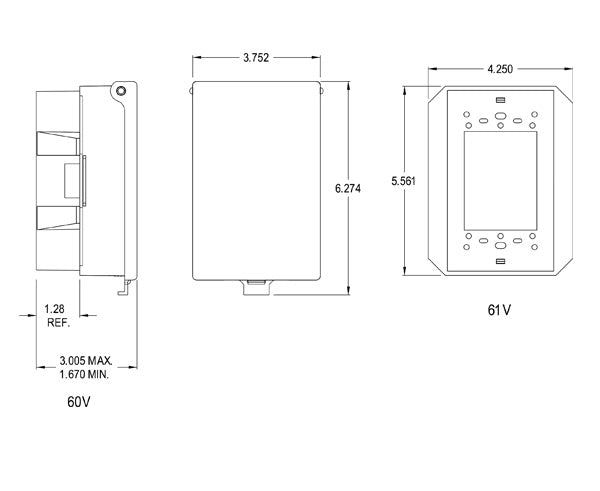

|CATALOG NUMBER||ORIENTATION / COVER COLOR||DIM A||DIM B||DIM C IN||DIM C OUT||DIM D||DIM E|

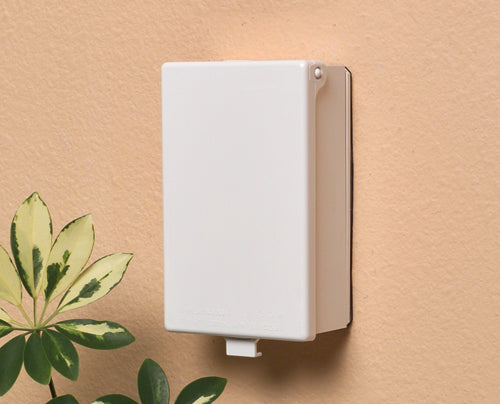

|60VC||Vertical / Clear||6.274||3.752||1.670||3.005||-||-|
|60VW||Vertical / White||6.274||3.752||1.670||3.005||-||-|
|61VC||Vertical / Clear||6.274||3.752||1.670||3.005||5.561||4.250|
|61VW||Vertical / White||6.274||3.752||1.670||3.005||5.561||4.250|

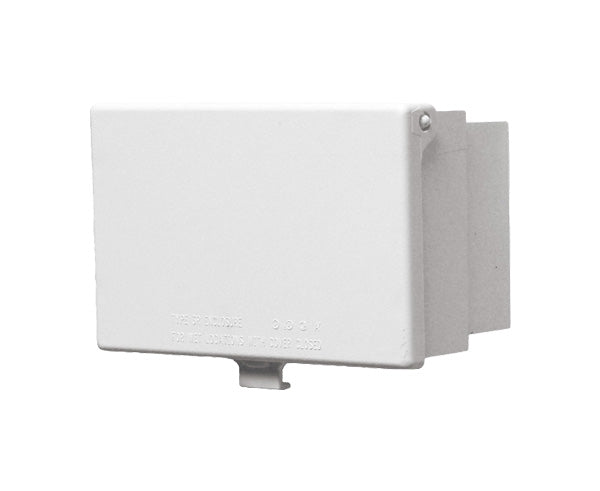

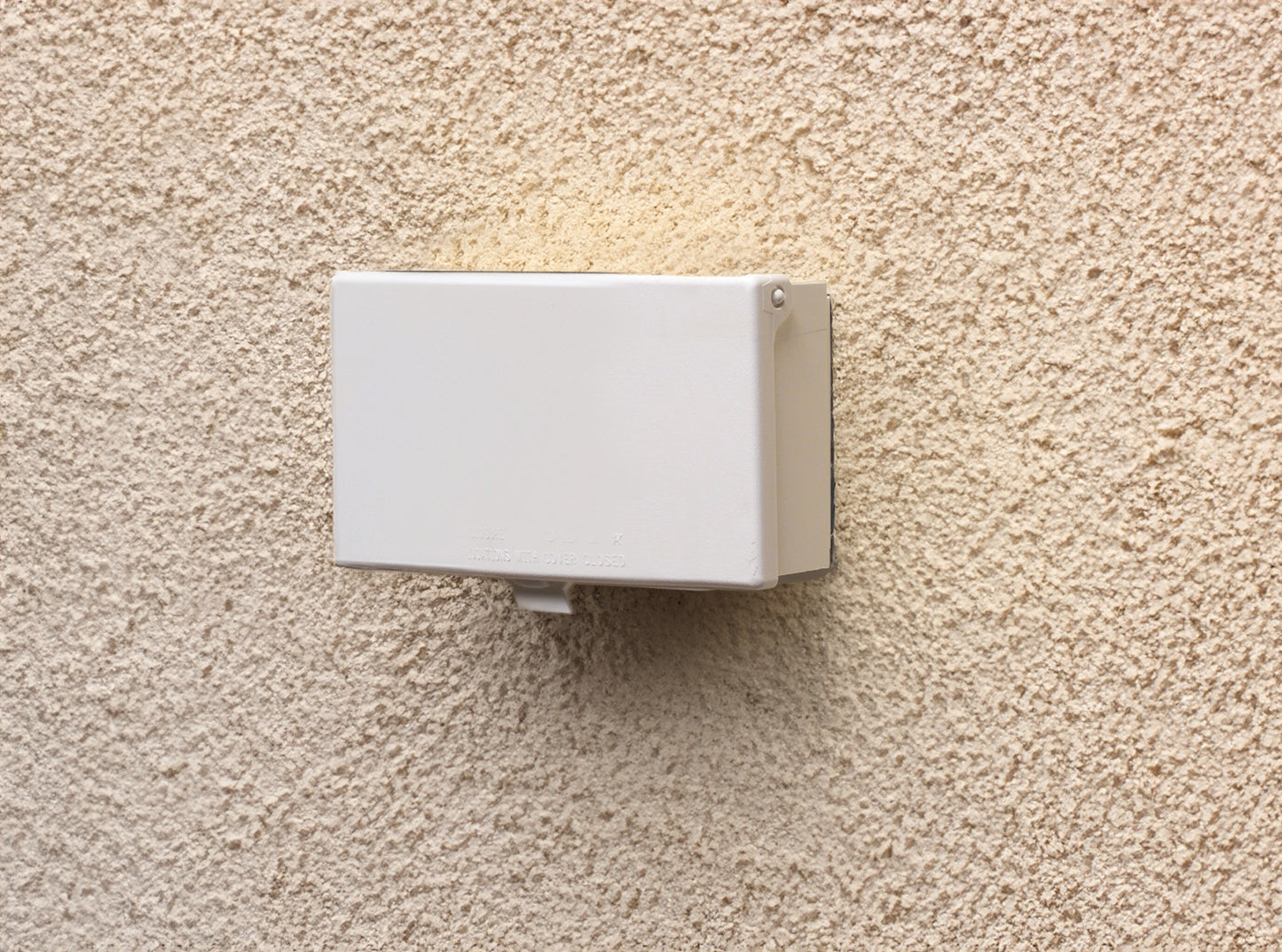

|60HC||Horizontal / Clear||4.192||5.836||1.670||3.005||-||-|

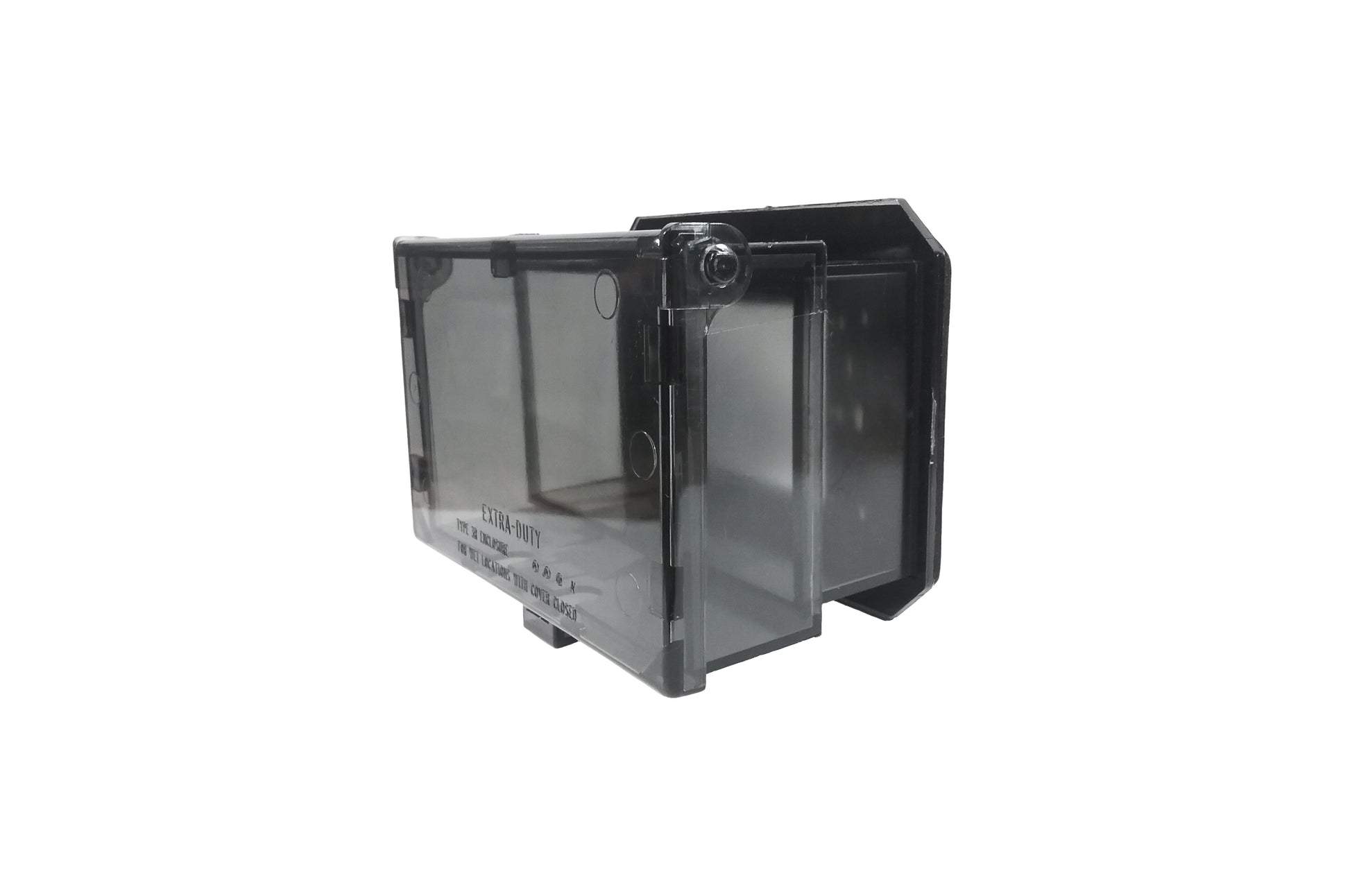

|61HC||Horizontal / Clear||4.192||5.836||1.670||3.005||4.250||5.561|
Low Profile Outdoor Weatherproof IN-and-OUT Outlet Box Instructions
What's In The Box?
What's In The Box?
- Qty 1 - Weatherproof Outlet Box - IN-and-OUT Design
