Description

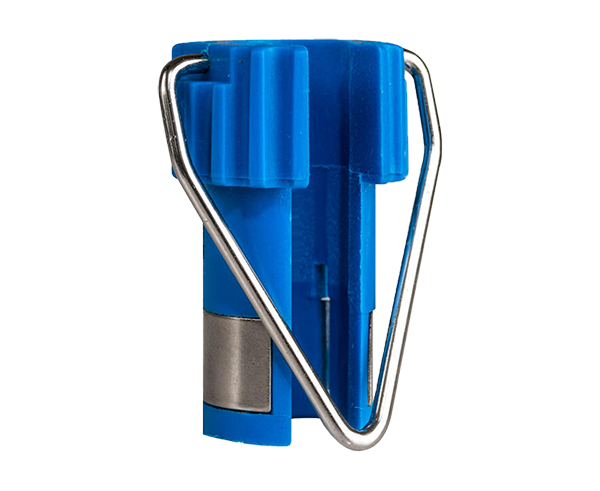

Low Torque Termination Tool

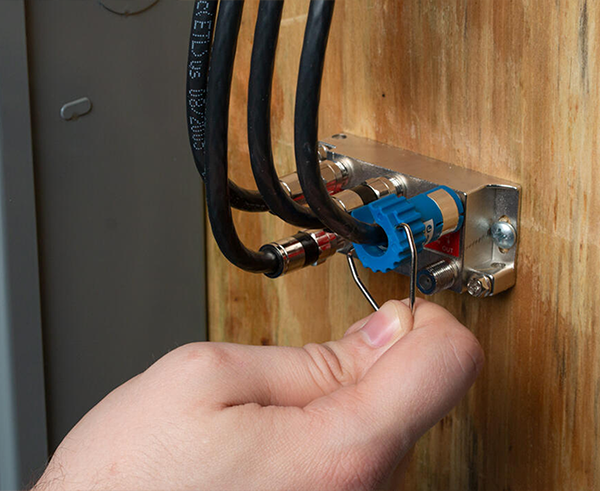

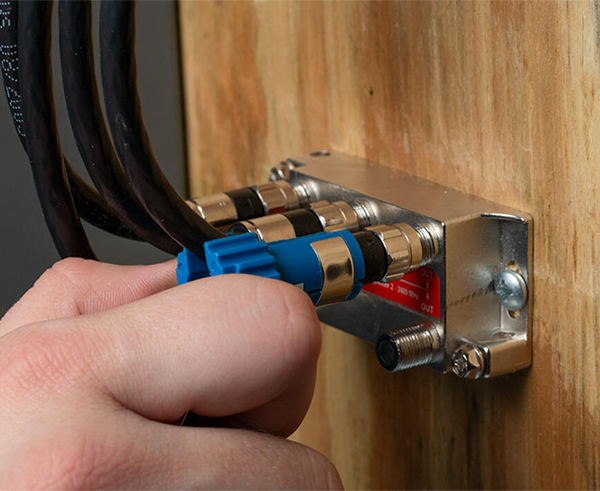

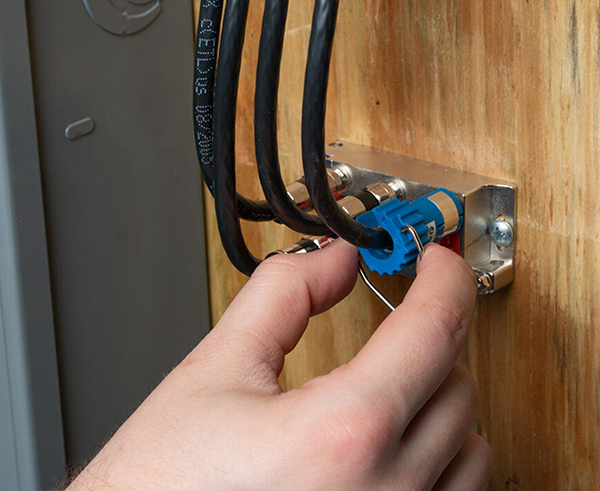

This indoor torque tool is designed specifically for tightening F Connectors, ensuring precise torque application when connecting COAX connectors to consumer electronic devices.
Features
Features
- Small and compact for getting into tight spaces: 1 3/8” tall and 7/8” diameter
- Glass-filled nylon material “work hardens” with use, meaning the applied torque does not decrease over time
- Tightens F connectors to 8 to 12 in-lbs of torque, while tightening with fingers only produces 1 to 3 in-lbs of torque)
- Consistent torque applied, regardless of the installer
- Prevents over-tightening of connectors, eliminating damage to equipment
- Prevents service truck rolls caused by loose connectors
- Helps prevent signal loss, ingress/egress
- Patented design
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| TOOL SPECIFICATIONS | |
| Head Type | Full |
| Size | 7/16” (11.11 mm) |
| Torque | 12 inch-lbs (1.36 N-m) |
| PHYSICAL CHARACTERISTICS | |
| Diameter | 7/8” (22.23 mm) |
| Height | 1 3/8” (34.93 mm) |
| Weight | 0.035 lbs (15.87 g) |
| IDENTIFICATION | |
| UPC NO. | 811490017306 |
| Patent No. | 7347129 |
What’s In The Box
What’s In The Box
- Qty 1 - Low Torque Termination Tool
