Low Voltage Mounting Bracket, 1 - 4 Gang

$1.36
SKU: LV1
Size
UL Listed CSA logo Made in USA

Some items may require minimum order quantities which can be changed in your shopping cart.

Description

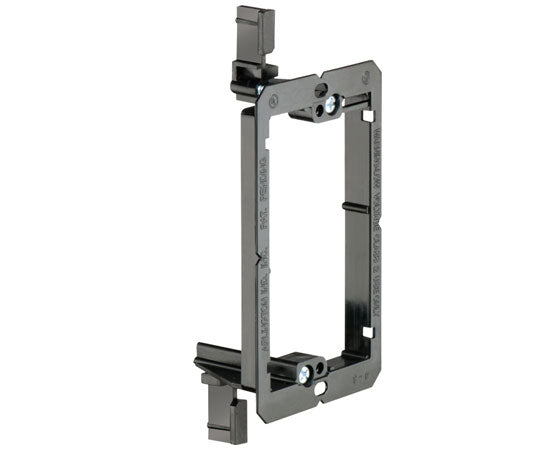

Low Voltage Single-Gang Mounting Bracket

Our Single-Gang low voltage mounting bracket is used to save money and time when installing class 2 communications, computer, and cable TV wiring into existing walls. This product has extra-long screws for use with finished wall surfaces from 1/4" to 1-1/2" thickness. When installed correctly, this bracket will seat a wall plate flush into a wall.

Features

Features

  • Non-metallic - better than metal and costs less too!
  • For communications, cable TV, computer wiring
  • Adjusts to fit 1/4" to 1" thick wallboard, paneling, or drywall

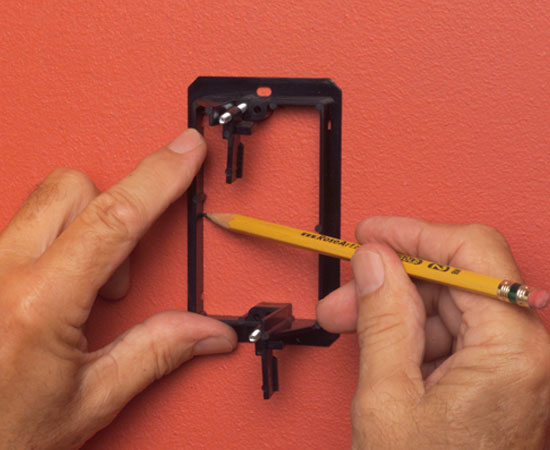

  • Bracket is its own template for cut out
  • Mounting wings hold bracket securely against wall when screws are tightened
  • UL Listed
  • Recessed Screw Hole
  • Thin Front Lip seats wall plate flush with wall surface
  • Oval Hole allows final shifting, straightening of device
  • Works For Low Voltage Fire Alarm Installations too!

Specifications

Specifications

Single Gang

Low Voltage Mounting Bracket; 1 - 4 Gang
Adjusts to fit wall thickness Number of mounting wings gangs
1/4" to 1" 2 Single (1)
Dimension "A" Dimension "B" Dimension "C" Dimension "D" Dimension "E"
5.460 4.250 2.500 1.690 1/4"-1"

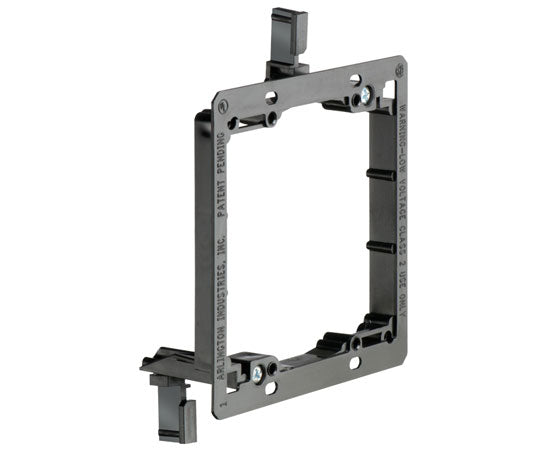

Double Gang

Low Voltage Mounting Bracket, 1 - 4 Gang
Adjusts to fit wall thickness Number of mounting wings gangs
1/4" to 1" 2 Two (2)
Dimension "A" Dimension "B" Dimension "C" Dimension "D" Dimension "E"
5.460 4.250 4.185 1.750 1/4"-1"

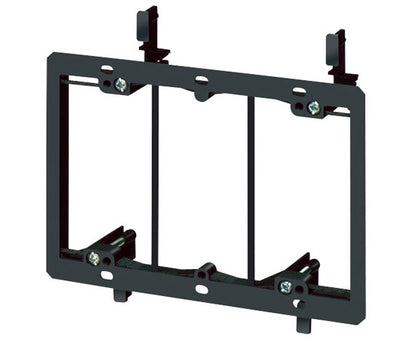

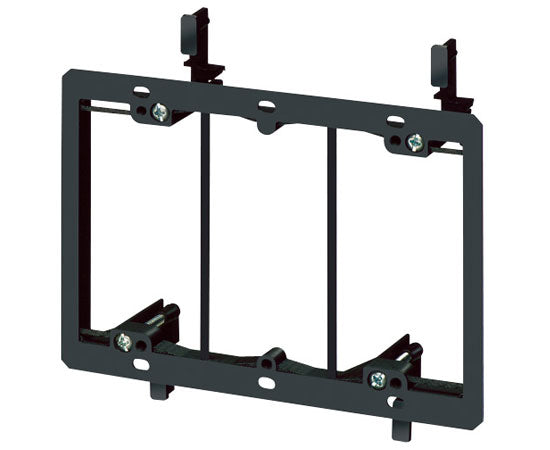

Three Gang

Adjusts to fit wall thickness Number of mounting wings gangs
1/4" to 1" 3 Three (3)
Dimension "A" Dimension "B" Dimension "C" Dimension "D" Dimension "E"
5.570 4.250 6.000 1.700 1/4"-1"

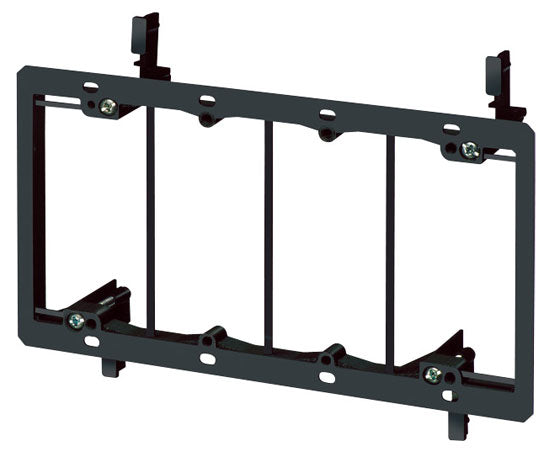

Four Gang

Adjusts to fit wall thickness Number of mounting wings gangs
1/4" to 1" 4 Four (4)
Dimension "A" Dimension "B" Dimension "C" Dimension "D" Dimension "E"
5.570 4.250 7.810 1.700 1/4"-1"

What's in the Box

What's in the Box

  • 1 - Low Voltage Non-Metallic Drywall Mud-Ring Mounting Bracket with Mounting Wings
