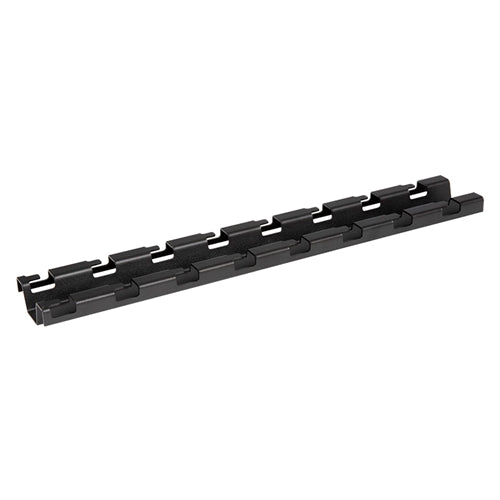

M-Type Cross Bar

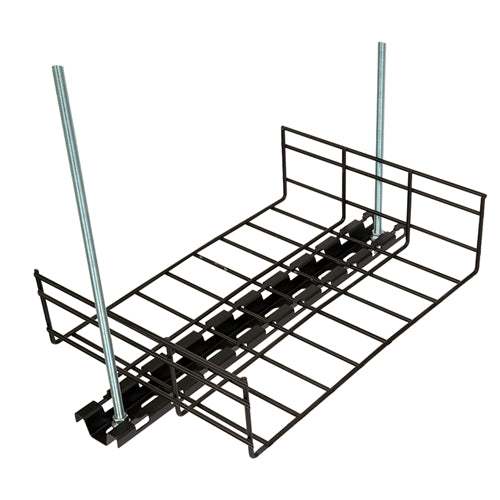

M-type cross bars provide additional strength when suspending high capacity basket tray from the ceiling.
Features
Features
- Compatible with threaded rod up to 3/8” diameter (not included)
- Secures basket tray without screws or clamps
- For use with 4” (100mm) to 24” (600mm) wide basket tray
- Black powder coat finish
- Complies with IEC 61537
- Sold individually
Specifications
Specifications
| Width (in) | Weight/Pc (lb) | Dimensions (LxWxH) | Availability |
| 4 | 0.42 | 7.1" x 2.5" x 0.8" | Special order |
| 8 | 0.69 | 11" x 2.5" x 0.8" | Special order |
| 12 | 0.99 | 15" x 2.5" x 0.8" | Stocked |
| 16 | 1.29 | 18.9" x 2.5" x 0.8" | Stocked |
| 20 | 1.59 | 22.8" x 2.5" x 0.8" | Special order |
| 24 | 1.89 | 26.8" x 2.5" x 0.8" | Special order |
What's in the Box
What's in the Box
- Qty 1 - M-Type Cross Bar
