Mainline-to-Service Connector – 3-Way, Direct-Bury Tracer Wire Connection

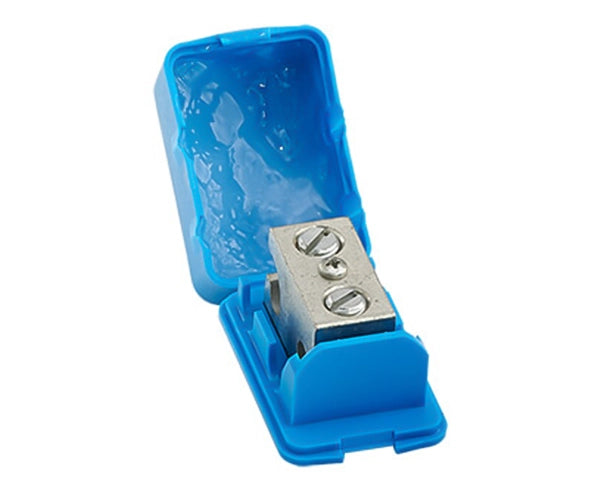

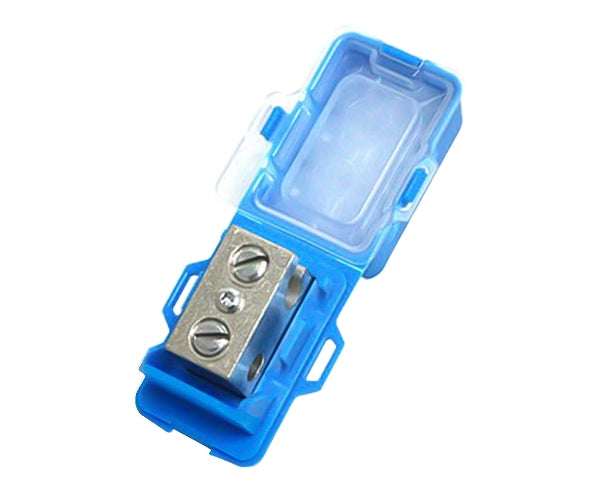

The Copperhead Mainline-to-Service Connector (Standard) delivers a fast, secure, and waterproof 3-way connection between mainline and service lateral tracer wires—without cutting or stripping the mainline. Its rugged housing locks down in three places and is pre-filled with dielectric silicone sealant for reliable corrosion protection. Designed for direct burial, each connector allows straightforward installation in utility locating projects.
Made in the USA. BABA compliant.

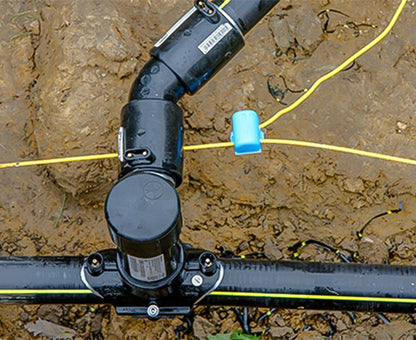

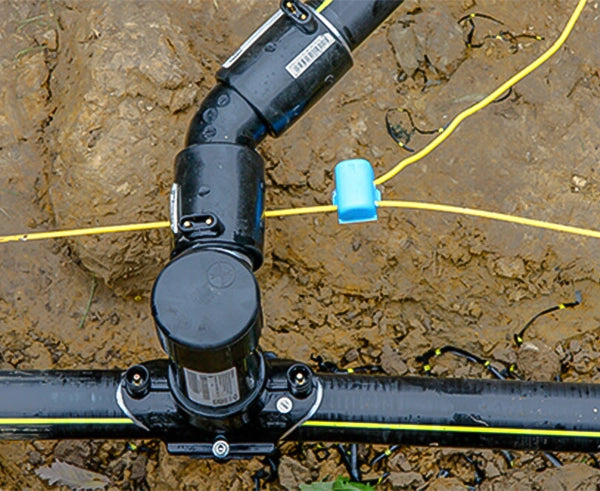

- Connects service lateral tracer wire to mainline tracer wire without cutting or stripping the mainline
- 3-way direct-burial connector, waterproof and corrosion-resistant
- Sealed with non-hardening dielectric silicone for lifetime protection
- One-piece, tool-assisted installation with set screws for secure contacts
- Outer lid locks down, keeping the connection free from contaminants
- For use with copper-clad steel or solid copper wire (14-10 AWG)
- Blue color, 10 connectors per package
Features
Features
- No Mainline Cutting – Maintains signal integrity and prevents pull-back
- Three-Way Connection – Joins mainline and lateral or branch service seamlessly
- Dielectric Silicone Sealant – Never hardens, fully protects against water and corrosion
- Housing Locks in Three Places – Prevents contaminant intrusion and ensures a permanent install
- Direct-Burial Rated – Built for long-term underground performance
- Easy, One-Piece Install – Tool-assisted (set screws), quick and mess-free
Specifications
Specifications
| Max Voltage | 50V |
| Wire Range | 14–10 AWG (copper-clad steel, solid copper) |
| Connector Color | Blue only |
| Housing Material | High impact polypropylene |
| Lug | Tin plated, high-conductivity aluminum |
| Screws | Zinc plated steel |
| Sealant | Non-hardening viscous dielectric silicone |
| Sealant Temp. Range | -45°F to 400°F |
| Connector Dimensions | 1.14" × 1.62" × 1.93" |
| Package Quantity | 10 per bag |
| Part Number | 3WB-01 |
| Country of Origin | USA |
| Compliance | BABA |
Additional Information
Additional Information
Installation Steps
- Make a small slit in the mainline jacket—do not remove insulation or cut conductor
- Strip the ends of both mainline and service wires

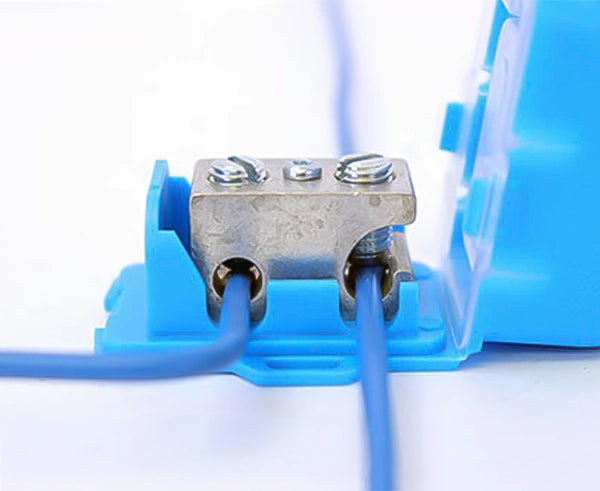

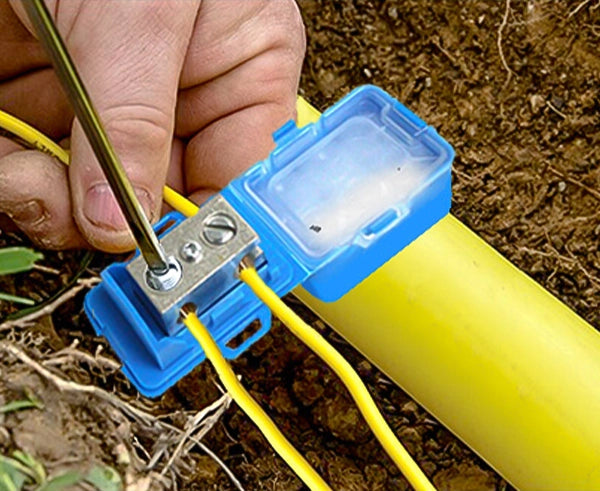

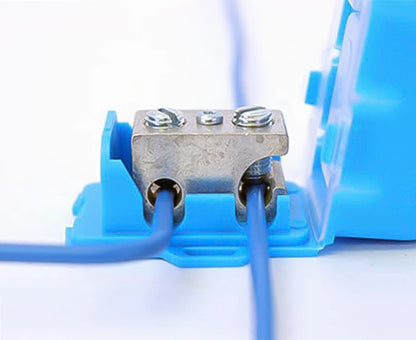

- Place the mainline tracer wire into open throat A; tighten the set screw until contact is made, then give 1/4 turn more
- Place service tracer wire into hole B; tighten the set screw until contact is made, then give 1/4 turn more
- Remove the sealant cover and discard it
- Close housing and align conductors until the lid latches shut
- Wipe excess sealant from around wires; do not reuse the connector
What's in the Box
What's in the Box
- Standard Mainline-to-Service Connectors (3WB-01, 10-pack, blue)
- Printed installation instructions
