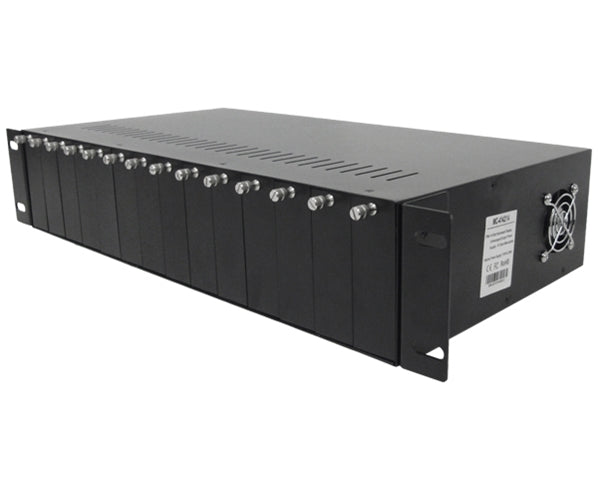

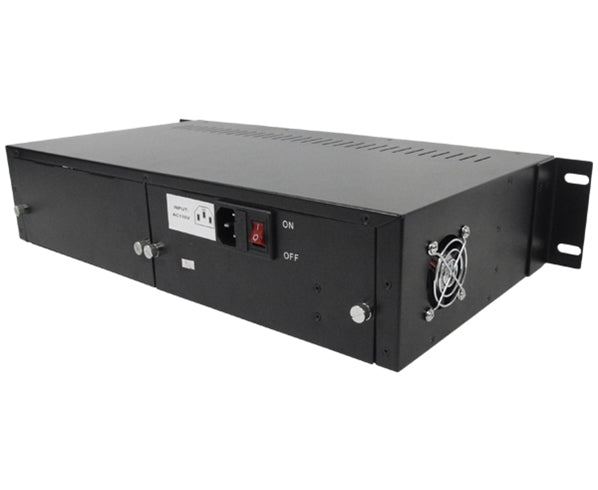

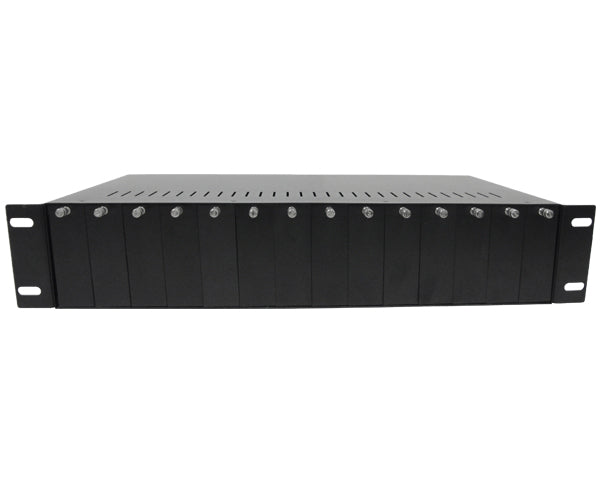

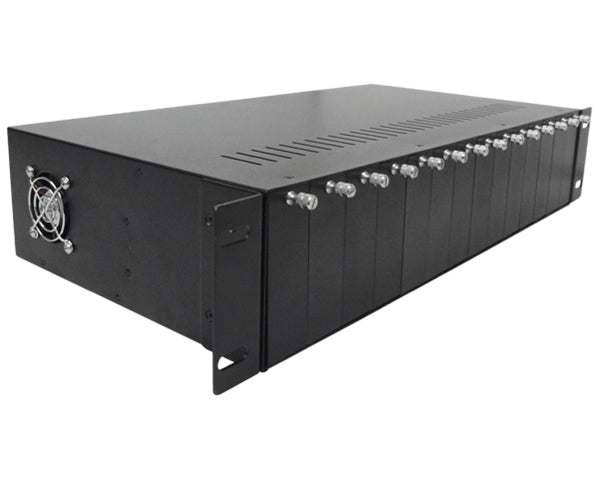

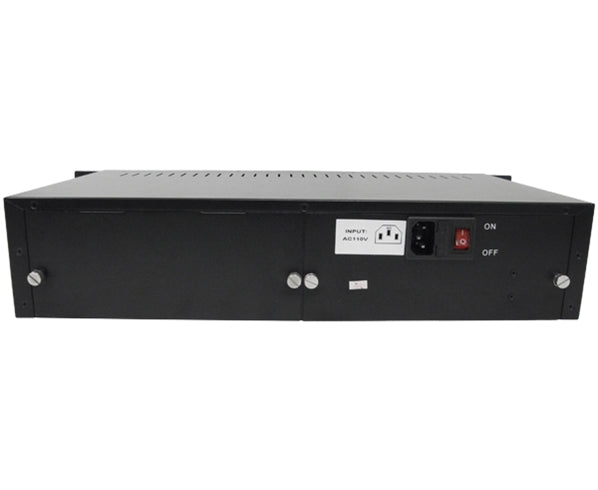

Media Converter Rackmount Chassis with Power Supply, 14 Slots

$224.99
SKU: MC-4142/14
Update

Includes one (1) power cord and all hardware to mount media converters to chassis.

Description

14 Port/Slot Unmanaged Fiber Converter Chassis, Single Power Supply, 19" Rack Mountable

The 14 Slot Rack-Mount Chassis is specially designed to accommodate our media converters and supports plug-and-play media converter installation. Continuous operation is of great importance to fiber communication, so the chassis is equipped with optional redundant power supply and Hot-Swapping function which allows installing/removing the converter/power supply without powering off the chassis. Moreover, to stabilize the performance and extend the lifetime, two cooling fans are installed internally. Together with our MC series Gigabit / Fast Ethernet media converters is the ideal solution for your media conversion network.

This chassis has the option of using a redundant power supply (sold separately).

Features

  • 14 bays/ports can house up to 14 media converters
  • Plug-And-Play media converter installation
  • Standard 19-inch rack-mountable with, 2U height
  • Optional redundant power supply to ensure non-stop reliable operation.
  • Provides hot-swapping of media converters and redundant power supplies

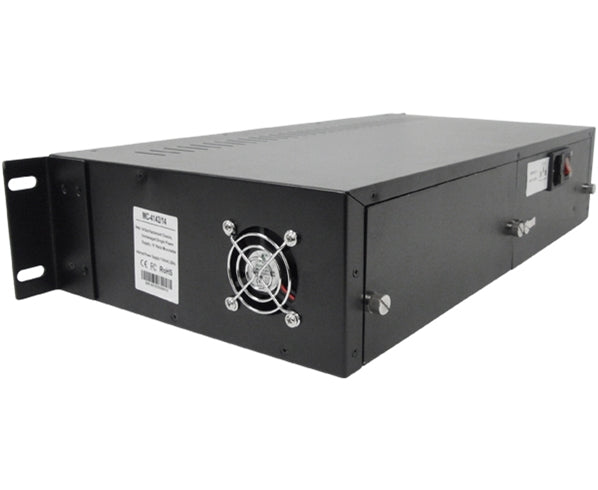

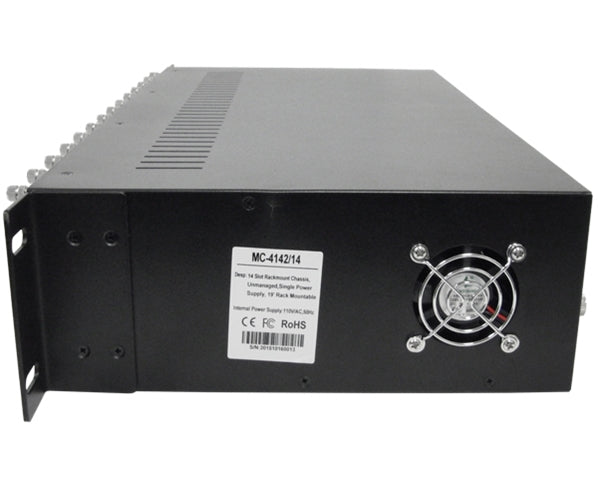

  • Two cooling fans (internal) mounted at the rear panel for system cooling
  • Media converter power isolation for electrical isolation from each bay
  • Offers over-voltage and over-current protections.

Specifications

Number Of Slots 14
Media Converters Adapted 10M; 100M; 1000M; 10/100M; 10/100/1000M
Power In AC 100 V~260 V; or DC 48V
Power Out DC 5V, 12A
Diameter of DC plug 2.5/5.5 mm
Ripple ≤ 50Mv
Noise ≤ 50Mv
Protection of Power Supply Circuit-breaker when over voltage; circuit-breaker when overflow; circuit-breaker when short circuit
Operating Temperature 0∘C~50∘C
Storage Temperature -20∘C~85∘C
Humidity 5%~95%
Dimensions Width: 19 Inches
Height: 2U
Depth: 9.5 inches

Fault and Maintenance of Media Converters

Fault Description Cause Description Maintenance
Power LED
Lamps are off
Haven't connected the power cord or it doesn't have a good connection. Make sure the power cord is connected correctly and make sure there is a good connection.
Link/Act LED
Lamp is off
1. Haven't Connected the electrical cables to the electrical port or it doesn't have a good connection. Make sure the power cord is connected correctly and make sure there is a good connection.
2. Used the wrong electrical cables for electrical connection. Used the wright electrical cables for electrical connection.
3. Any fault with the NIC and the terminal of Ethernet Make sure the NIC and the Ethernet port are working correctly
FX & FX-Link/Act LED
Lamps are off
1. There may be a fault with the optical devices Check the fiber optical devices and the fiber connection to see of they are working correctly.
2. The optical fiber has broken down or there is a bad connection.
3. The optical fiber is over-loss
TX and FX LED
Lamps are normal
but the data can not be transmitted
1. The Connection between the optical fiber and devices is not valid, this will cause the TX power not to work correctly. Check the fiber connectors and make sure the connections between optical fibers and devises are valid.
2. The system only gets power for a moment. If there are any changes in the network it may take a little while for media converters to adapt. If it still is not working after waiting a few minutes and all connections have been completed correctly, then turn off the power and unplug the power cord, wait for a few minutes and then reconnect the power cord turn device back on and try again.

What's in the Box

  • 1 - 14 Port/Slot 2U 19" Rackmount Media Converter Chassis
  • 1 - Power Cord
  • 14 - Blank Port/Slot Covers with Mounting Screws
  • 14 - Media Converter Mounts with Attached Mounting Screws
  • 1 - User Manual
