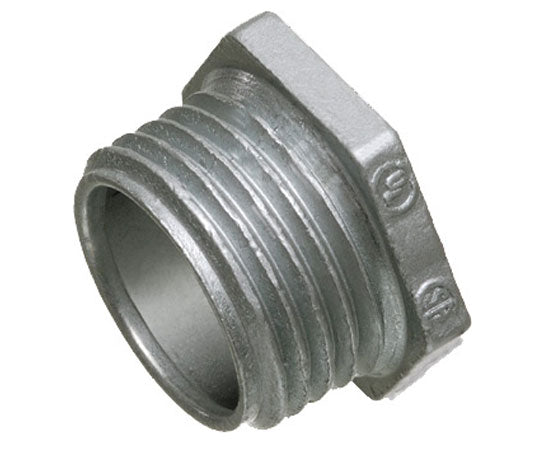

Metal Conduit Nipples Cap - Zinc Die-Cast

$98.93
SKU: NPNB-507
Trade Size
Various lead times may apply to this product. Please contact us for more details.

Description

Description

Metal Conduit Nipple Caps along with a rigid coupling to terminate a run of threaded conduit into an enclosure box. This zinc encased nipple is rated for both indoor and outdoor use and is corrosion resistant.

Specifications

Specifications

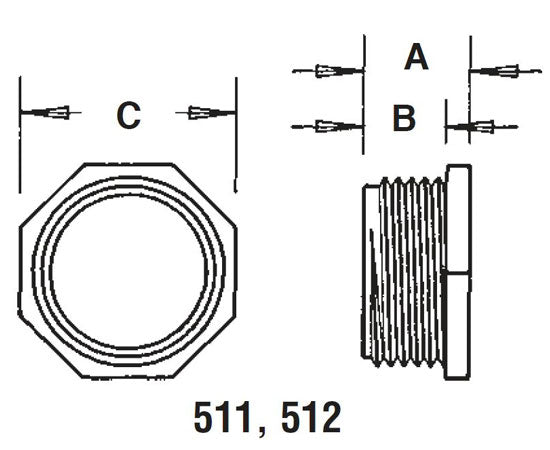

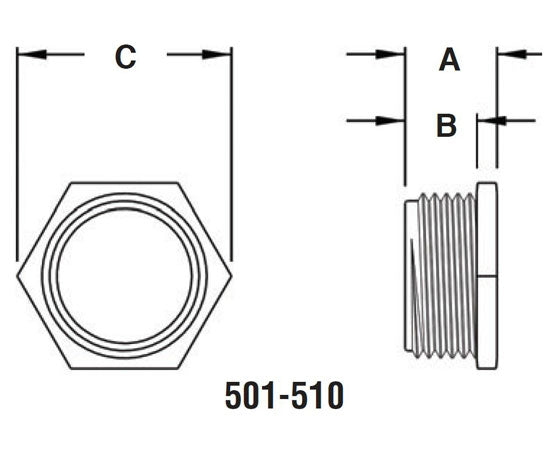

Metal Conduit Nipples Cap - Zinc Die-Cast DiagramMetal Conduit Nipples Cap - Zinc Die-Cast Diagram

Part Number Trade Size Dim A Dim B Dim C
NPNB-501 1/2" .585 .425 1.050
NPNB-502 3/4" .614 .514 1.310
NPNB-503 1" .654 .518 1.616
NPNB-503 1" .654 .518 1.616
NPNB-504 1-1/4" .810 .578 1.978
NPNB-505 1-1/2" .835 .613 2.410
NPNB-506 2" .888 .676 2.945
NPNB-507 2-1/2" 1.200 .876 3.555
NPNB-503 3" 1.375 1.008 4.390
NPNB-509 3-1/2" 1.375 1.008 4.925
NPNB-510 4" 1.375 1.011 5.420
NPNB-511* 5" 1.700 1.232 5.812
NPNB-512* 6" 2.000 1.500 7.000
* Malleable

What's in the box?

What's in the box?

  • 501 - 100 Pack - Metal Conduit Nipples Cap - Zinc Die-Cast
  • 502 - 50 Pack - Metal Conduit Nipples Cap - Zinc Die-Cast
  • 503 - 25 Pack - Metal Conduit Nipples Cap - Zinc Die-Cast
  • 504 - 10 Pack - Metal Conduit Nipples Cap - Zinc Die-Cast
  • 505 - 10 Pack - Metal Conduit Nipples Cap - Zinc Die-Cast
  • 506 - 10 Pack - Metal Conduit Nipples Cap - Zinc Die-Cast
  • 507 - 10 Pack - Metal Conduit Nipples Cap - Zinc Die-Cast
  • 508 - 10 Pack - Metal Conduit Nipples Cap - Zinc Die-Cast
  • 509 - 10 Pack - Metal Conduit Nipples Cap - Zinc Die-Cast
  • 510 - 5 Pack - Metal Conduit Nipples Cap - Zinc Die-Cast
  • 511 - 1 Pack - Metal Conduit Nipples Cap - Zinc Die-Cast
  • 512 - 1 Pack - Metal Conduit Nipples Cap - Zinc Die-Cast
