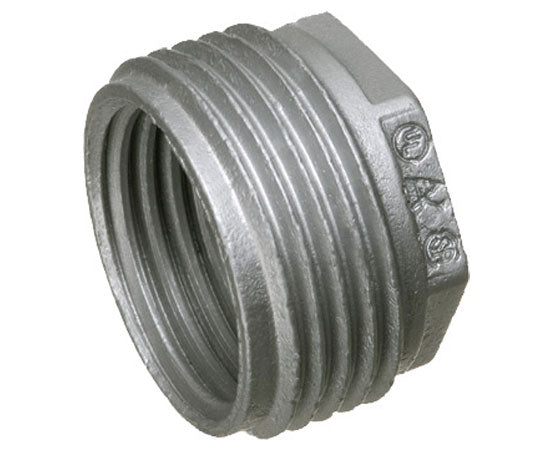

Metal Conduit Reducing Bushing - Zinc Die-Cast

$1.30
SKU: NPNB-522
Trade Size
Various lead times may apply to this product. Please contact us for more details.

Description

Description

Conduit reducing bushing for 3/4 to 1/2 inch rigid/IMC conduit. Reducing bushing is zinc die cast.

Specifications

Specifications

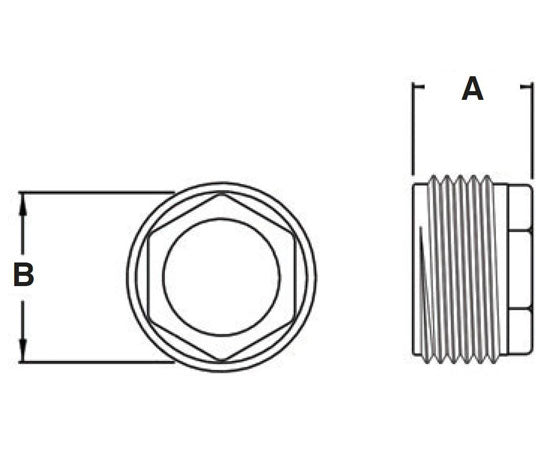

Metal Conduit Reducing Bushing - Zinc Die-Cast Diagram

Part Number Trade Size Dim A Dim B
NPNB-522 3/4" x 1/2" .650 .920
NPNB-523 1" x 1/2" .715 1.125
NPNB-524 1" x 3/4" .715 1.125
NPNB-525 1-1/4" x 1/2" .820 1.470
NPNB-526 1-1/4" x 3/4" .820 1.470
NPNB-527 1-1/4" x 3/4" .820 1.470
NPNB-528 1-1/2" x 1/2" .850 1.700
NPNB-529 1-1/2" x 3/4" .850 1.700
NPNB-530 1-1/2" x 1" .850 1.700
NPNB-531 1-1/2" x 1-1/4" .850 1.700
NPNB-532 2" x 1/2" .970 2.230
NPNB-533 2" x 3/4" .970 2.230
NPNB-534 2" x 1" .970 2.230
NPNB-535 2" x 1-1/4" .970 2.230
NPNB-536 2" x 1-1/2" .970 2.230

What's in the box?

What's in the box?

  • Qty 1 - Metal Conduit Reducing Bushing - Zinc Die-Cast
