Micro-Distribution Plenum Fiber Optic Cable, Multimode 10 Gig OM3, Corning Fiber, Indoor
(We do not offer credits or returns for this item.)
Minimum and Maximum Order Lengths for Non-Freight Shipments:
|12 Fibers||24 Fibers||48 Fibers||72 & 96 Fibers|
|Min.||500ft. (152m)||500ft. (152m)||500ft. (152m)||Call For Quote|
|Max.||12,000ft. (3658m)||1,700ft. (518m)||1,500ft. (457m)||Call For Quote|
Note: Call or email us for a quote for all 12, 24, 48, 72 & 96 OM3 fibers.
To request a quote email us or give us a call.
If you would like to inquire about our custom fiber cable options such as longer lengths, custom cut lengths, terminated ends, or pull eyes please call or email us.
Micro-Distribution 10G MultiMode OM3 Plenum OFNP Fiber Optic Cable

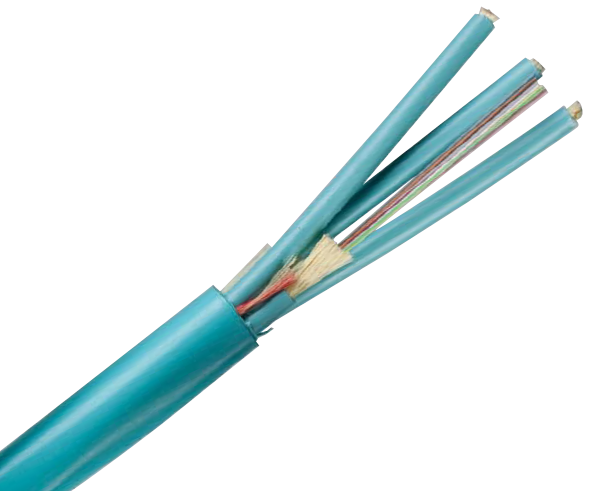

These 12-96 strand riser micro distribution fiber cables are composed of single tube or two to eight sub units, an optional central member, aramid yarn, an aramid ripcord, and a PVC outer jacket. Each sub-unit consists of up to 12 colored glass fibers surrounded by aramid yarn with a PVC jacket 2.95mm in diameter. All component materials meet the EU RoHS and REACH Directive standards. Sub-units can be color-coded or sequentially numbered upon request.
Micro-Distribution cable combines high fiber counts with a compact, space saving design. 2 to 12 colored bare fibers with aramid yarn are positioned in a 3 mm jacket. 6 tubes of 12 fibers are combined to make up to 72 fibers. Each subunit is numbered for ease of installation with riser and plenum rated construction available.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
- 250um colored bare fibers.
- Smaller outer diameter for tight spaces.
- UL1666(Riser) and NFPA262(Plenum)
- Riser and plenum constructions
- Meets the application requirement of national Electric Code (NEC) Article 770 and is OFNR rated for riser cable and OFNP rated for plenum cable.
- Data centers.
- Ready for MTP connectors.
- High density installations.
- Ready to ribbonize.
Multimode Fiber Information
Multi-Mode cable commonly has a diameter in the 50-to-100 micron range (typical multimode fiber core diameters are 50 or 62.5 micrometers). Multimode fiber gives you high bandwidth at high speeds (10 to 100MBS - Gigabit to 275m to 2km) over medium distances. Light waves are dispersed into numerous paths, or modes, as they travel through the cable's core typically 850 or 1300nm. However, in long cable runs (greater than 3000 feet [914.4 meters), multiple paths of light can cause signal distortion at the receiving end, resulting in an unclear and incomplete data transmission so designers now call for single mode fiber in new applications using Gigabit and beyond.
