Description

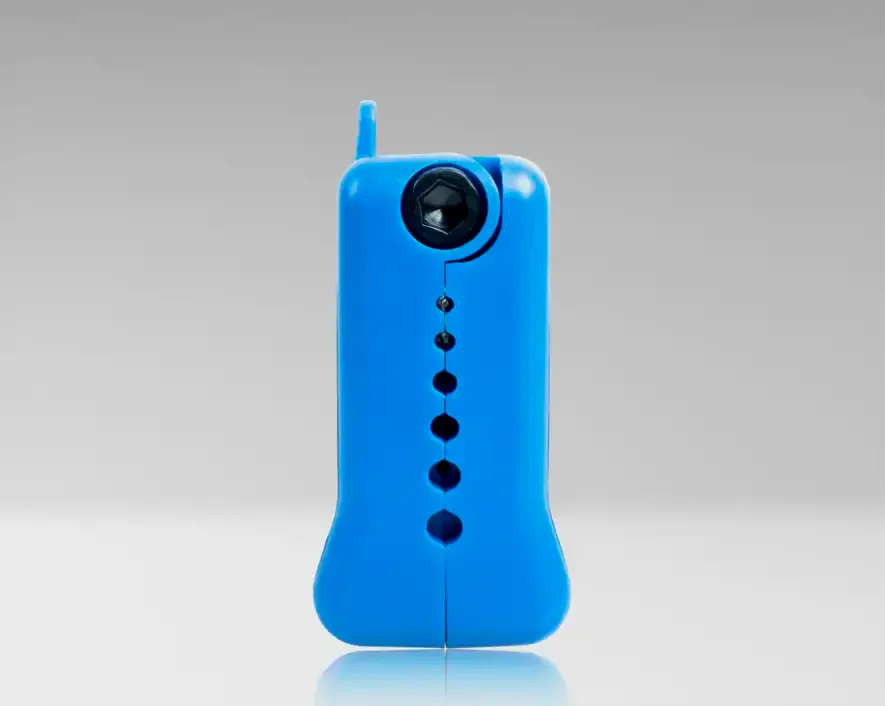

Mid Span Slitter for ABF Cables (0.90 - 1.50 mm)

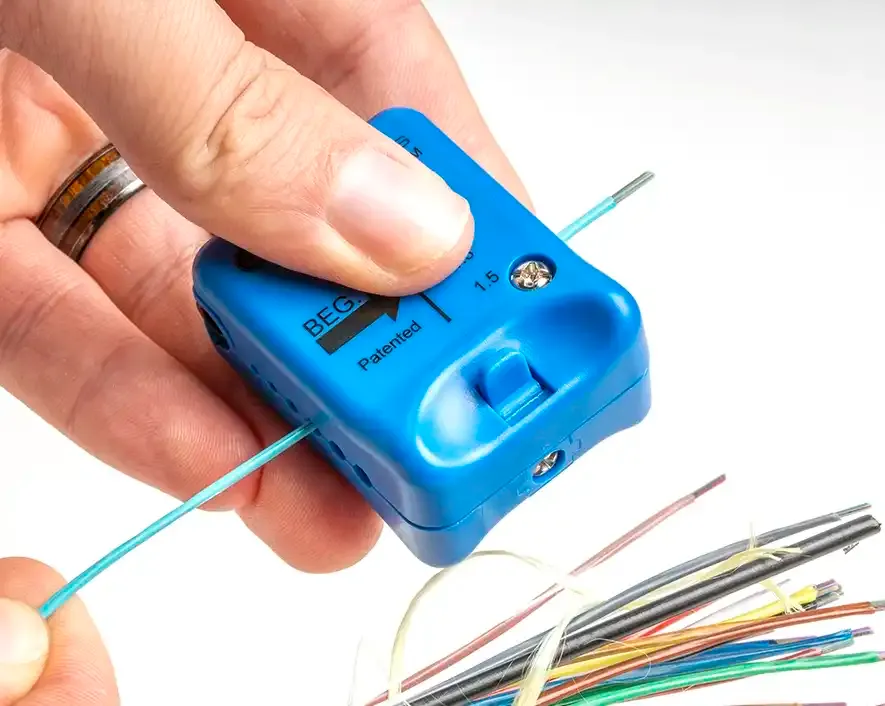

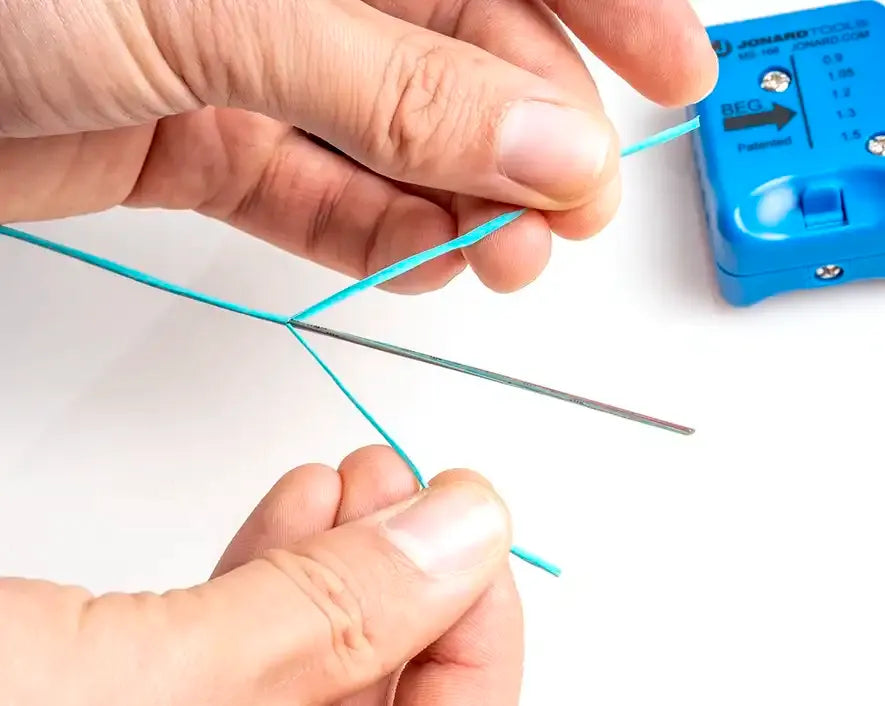

Designed with 5 precision grooves and blades, this mid span slitter is perfect for slitting the cable sheathes off 0.90 mm - 1.50 mm diameter Air Blown Fiber cable without damaging the fiber inside.
Features
Features
This mid span slitter also features the following:

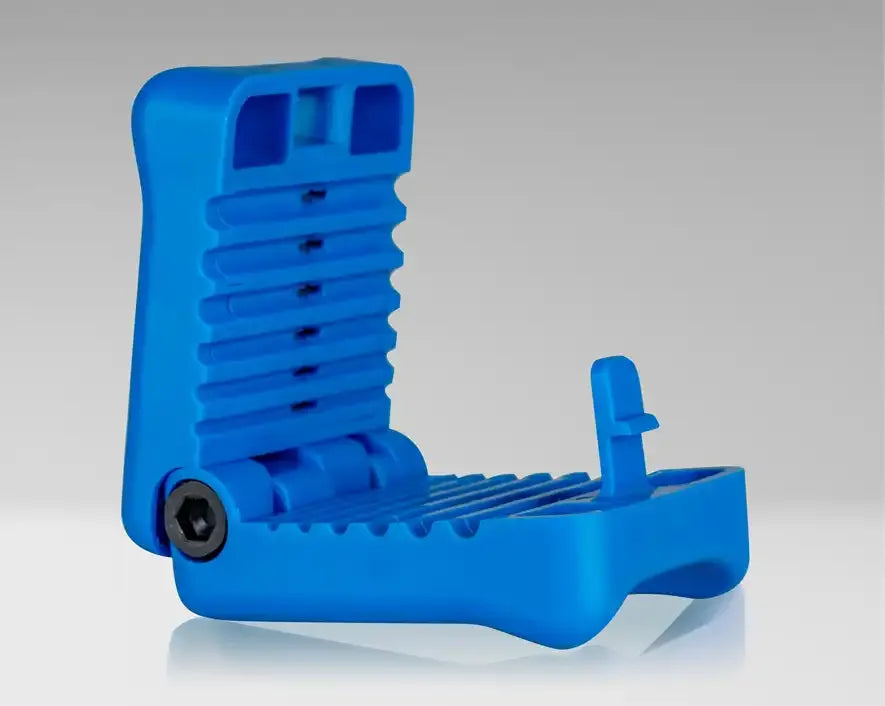

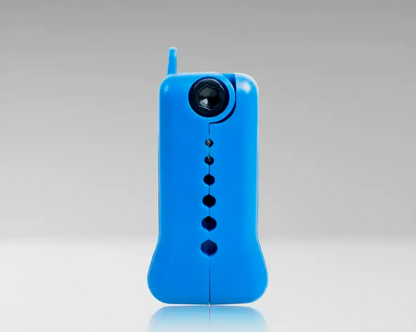

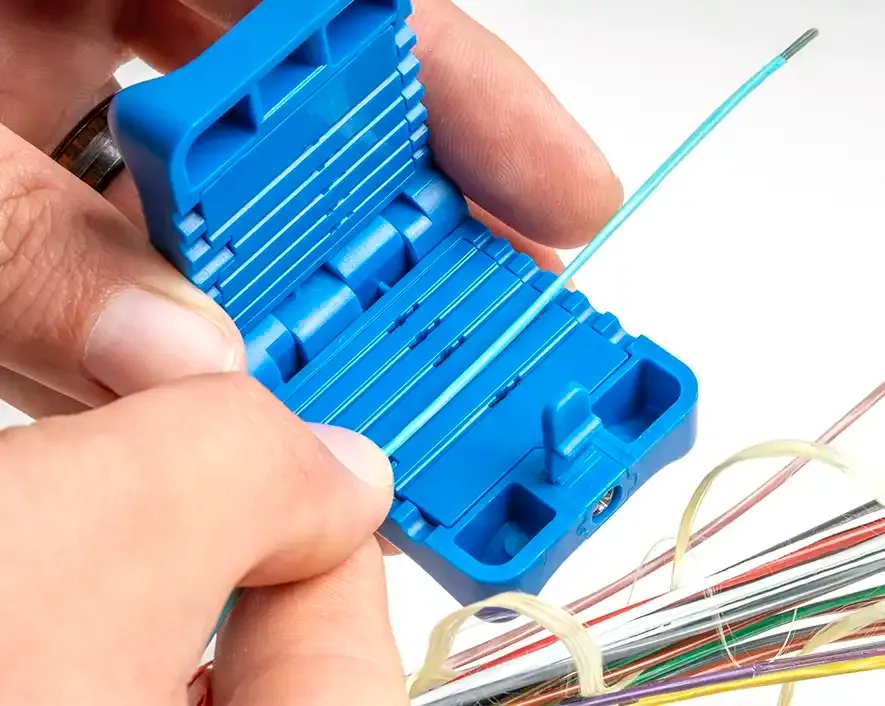

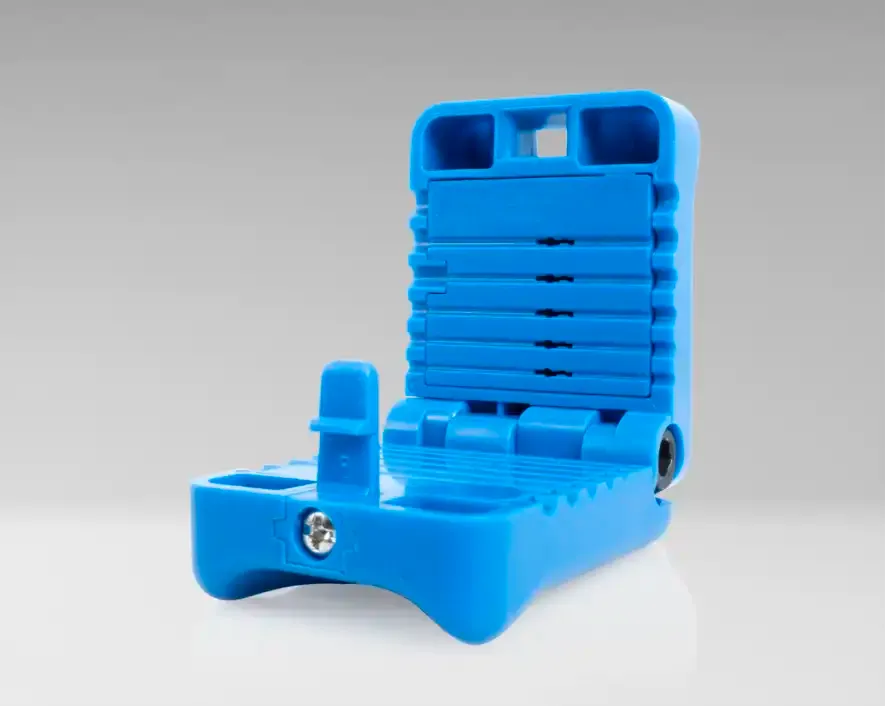

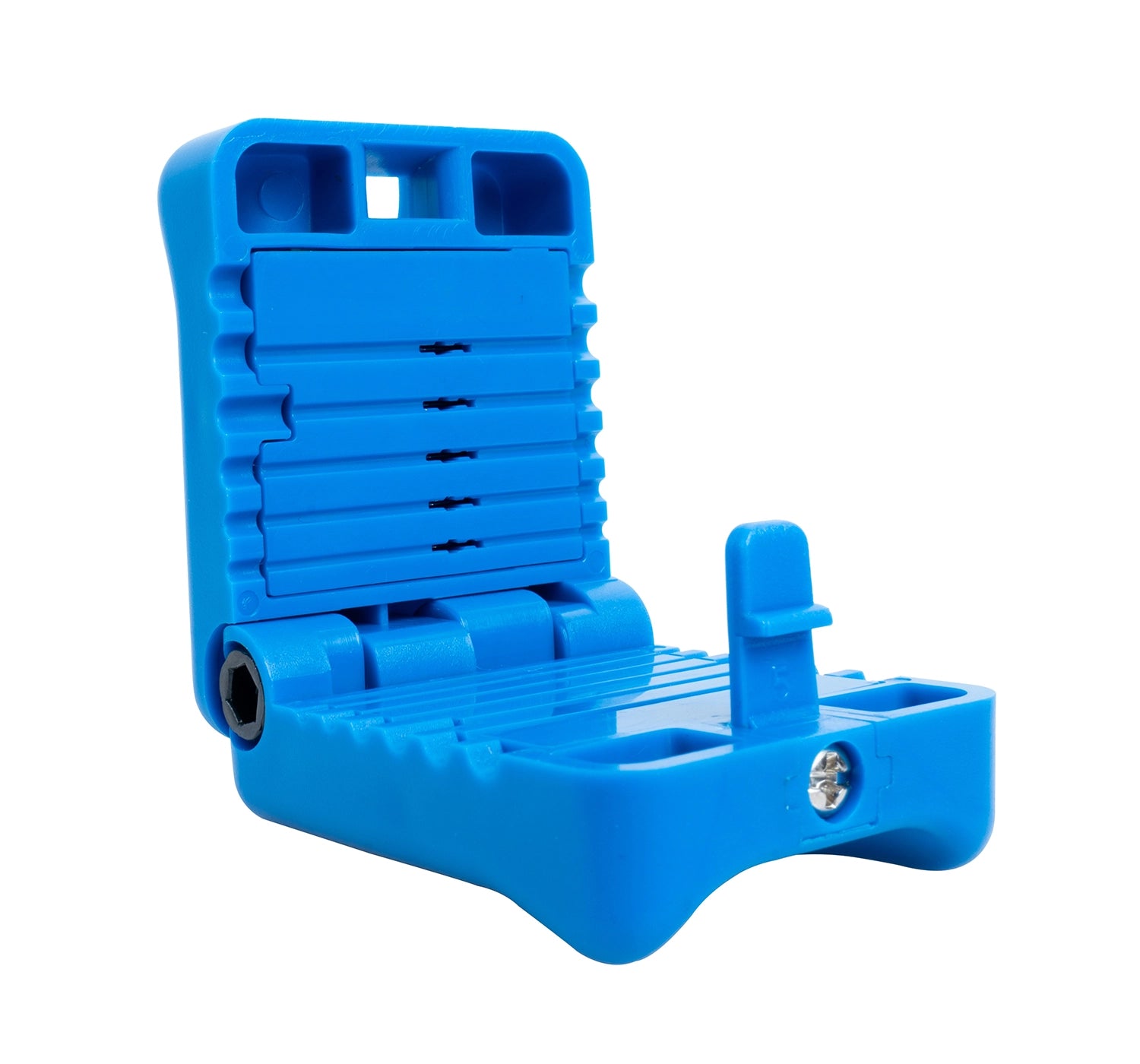

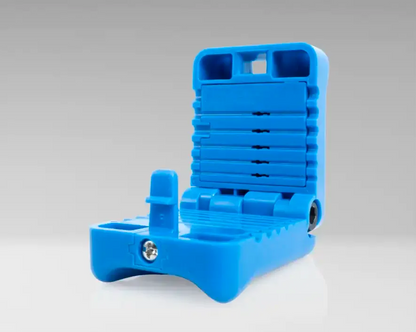

- Consists of 5 precision slitting grooves ranging in size from 0.9 mm to 1.5 mm, each with blade depths of 0.25 mm to prevent damage to internal fibers

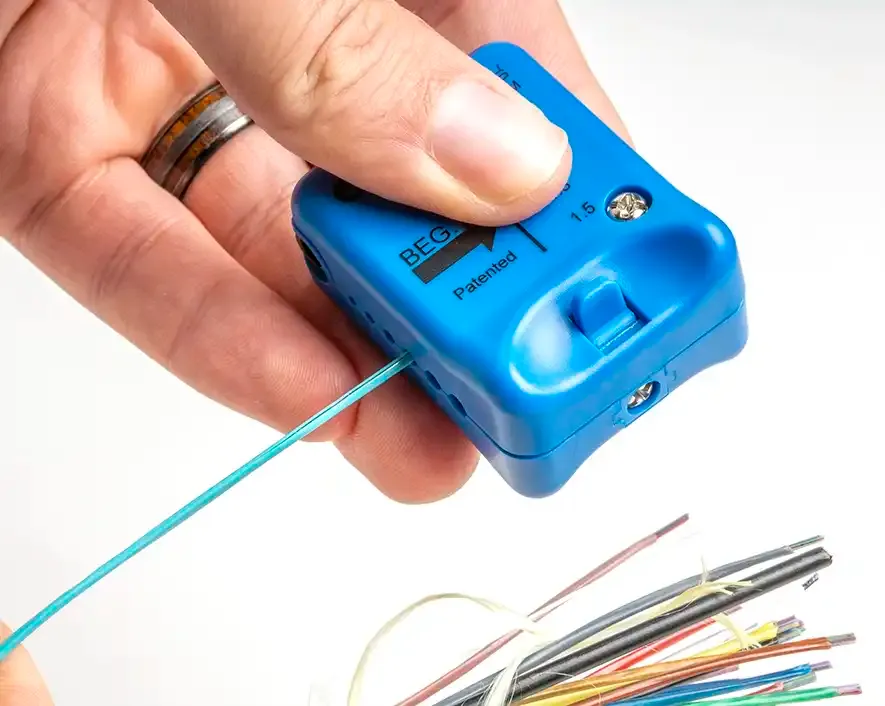

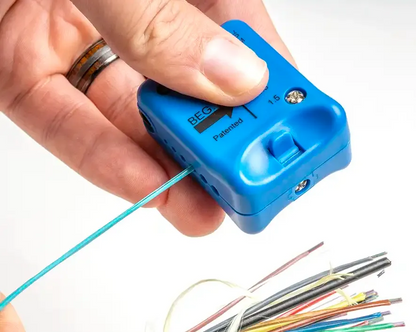

- Perfect for slitting Air Blown Fibers and other similarly sized fiber cables

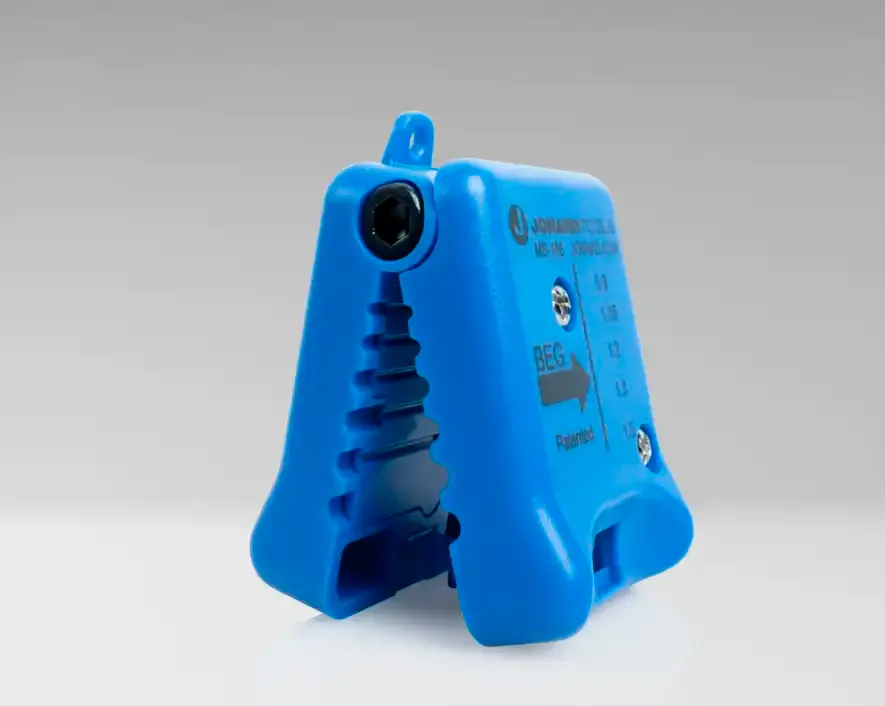

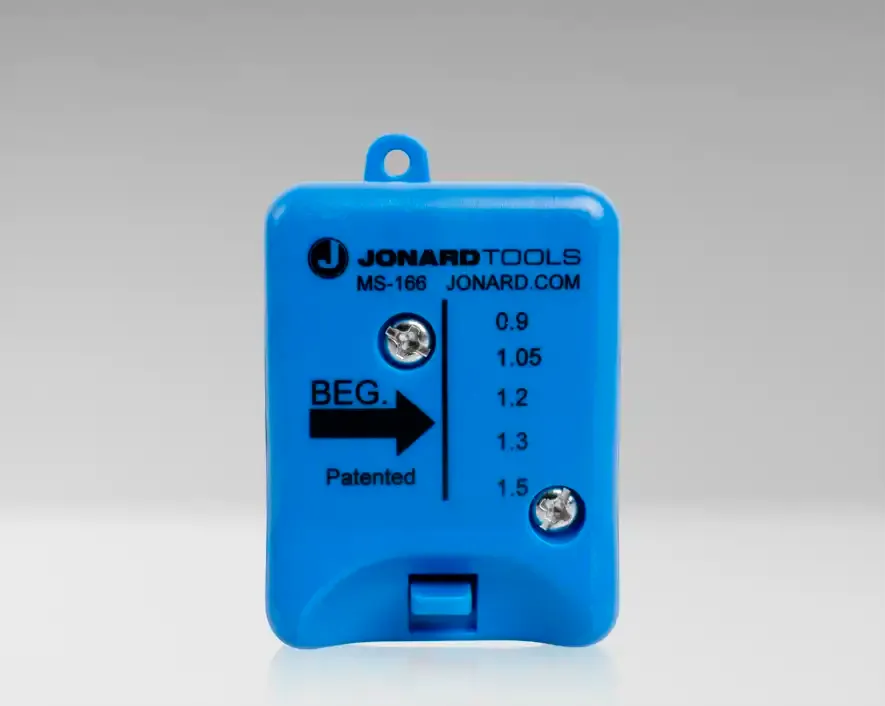

- Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringing

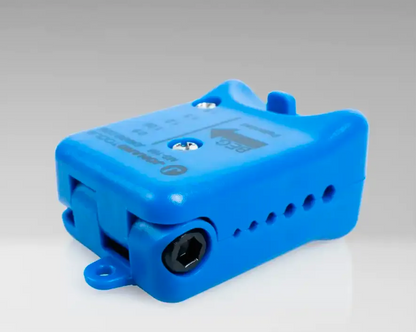

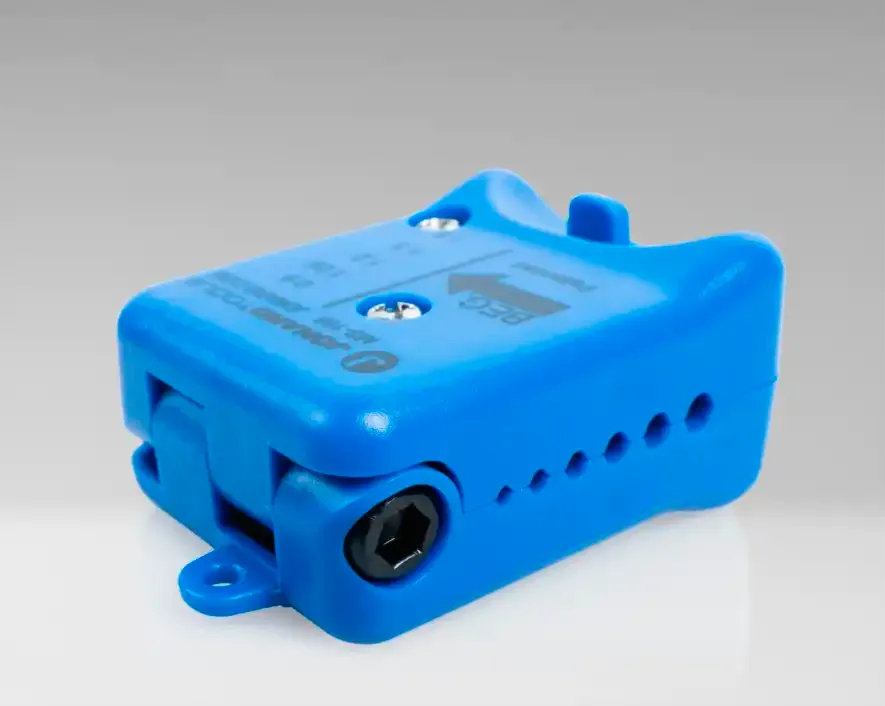

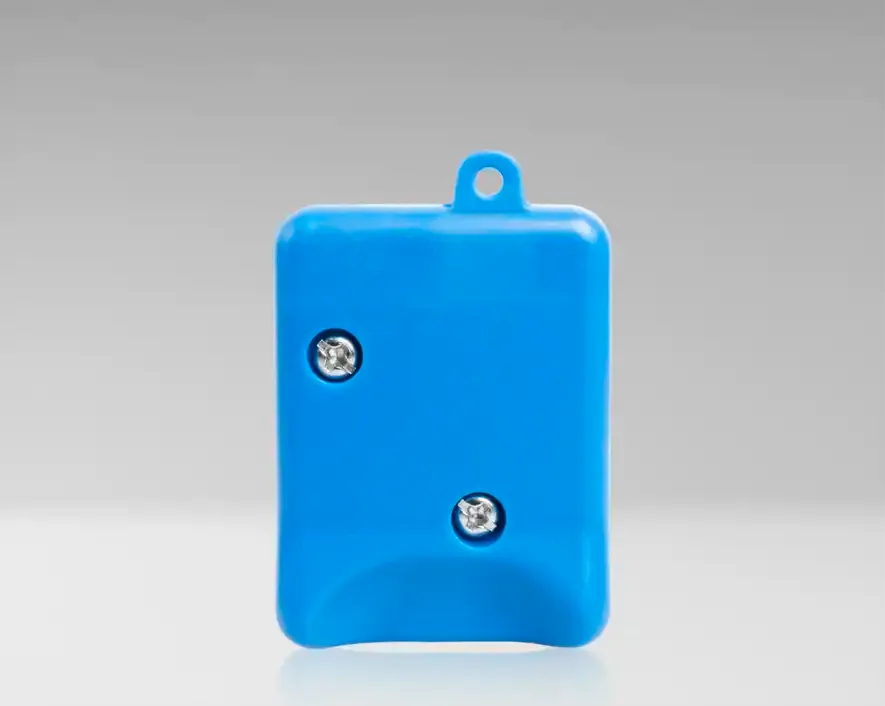

- Compact design weighing less than 2.5 oz with included tethering hole makes it perfect to use in tight spaces or on the go
- Replacement blade set available, part number: MS-166RB
- Blades last for 5,000 slits/cuts
Groove Sizes: 0.90 mm | 1.05 mm | 1.20 mm | 1.30 mm | 1.50 mm
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| CUT TYPE | Slit |
| NUMBER OF SLITTING GROOVES | 5 |
| CABLE TYPE | Air Blown Fiber |
| CABLE DIAMETER | 0.9 mm - 1.5 mm (0.035” - 0.059”) |
| BLADE DEPTH | 0.25 mm (0.0098”) |
| DIMENSIONS | 2.2” x 1.5” x 1” (5.59 cm x 3.81 cm x 2.54 cm) |
| WEIGHT | 0.13 lb (59 g) |
| UPC # | 810132439315 |
Additional Information
| Product Videos | |
|---|---|
HOW TO REPLACE THE BLADES ON A MID SPAN SLITTER FOR ABF CABLES (MS-166RB) - JONARD TOOLS |
JONARD TOOLS MID SPAN SLITTER FOR ABF CABLES (MS-166) PRODUCT VIDEO
|
What's In The Box
What's In The Box
- Mid Span Slitter for ABF Cables (0.90 - 1.50 mm)
