Military Tight Buffer Distribution Polyurethane Fiber Optic Cable, Multimode OM1, Outdoor Tactical

by OCC
$0.87
SKU: D-002CWST5KM
Strand Count
Various lead times may apply to this product. Please contact us for more details.
Made in USA

(We do not offer credits or returns for this item.)

To order this cable, please see the Product Options tab below and choose the strand count and length needed.

If you would like to inquire about our custom fiber cable options such as terminated ends, pulleyes, and custom cut lengths, please call or email us.

Description

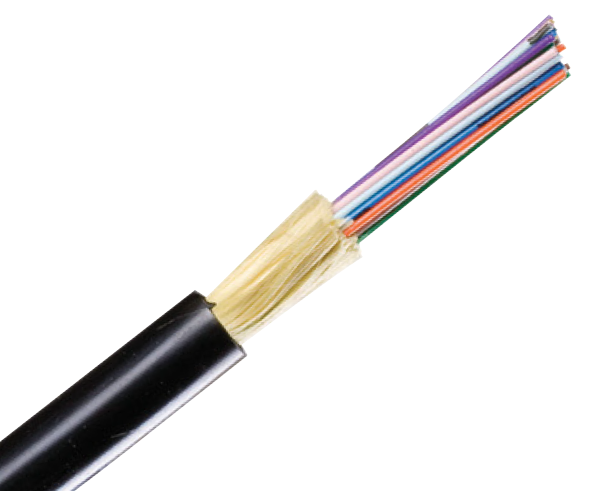

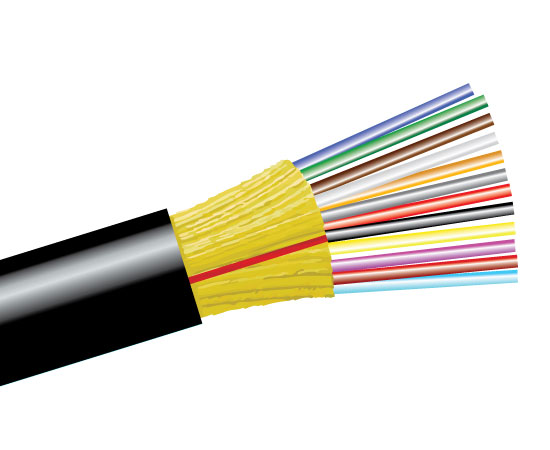

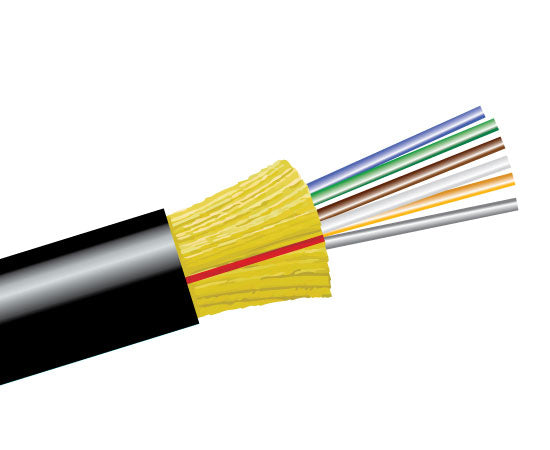

Military Tight Buffer Fiber Optic Cable, Multimode 62.5/125 OM1, Outdoor Tactical Distribution, Polyurethane

This Multimode OM1 62.5/125 Military Tactical Distribution Cable is ideal for outdoor applications where deployment and retrieval for reuse is required. Having an extremely strong, lightweight and rugged design, the mil tac multimode OM1 cable is designed for military tactical field use and commercial applications. These tactical distribution fiber cables have been tested for and are currently in use in military data communication applications worldwide.

With options to be prespooled on deployable reels for a ready-to-use product and pre-terminated with single fiber or ruggedized multichannel connectors, these military tactical cables can be customized to your specific application.

Features

  • Extremely strong, lightweight, rugged, survivable tight-buffered cables designed for military tactical field use and commercial applications
  • Compact, round cable design for ease of transportation and deployment
  • Core-locked jacket for improved mechanical performance
  • Designed for use in adverse environments where reduced size and weight are important
  • Helically stranded cable core for flexibility, deployment survivability and exceptional mechanical protection for the optical fibers
  • Cables have been tested and are in use in military data communications applications worldwide
  • Can be used outdoors for temporary deployment directly on the ground in all terrains, including severe environments
  • Suitable for industrial, mining and petrochemical environments - chemical resistant
  • Crush-resistant and resilient with a thick layer of aramid strength members
  • Polyurethane jacketed for abrasion, cut and chemical resistance
  • Most commonly used with ruggedized multiway military tactical field connectors, for maximum connector retention (400lbs.)
  • Tactical Polyurethane (C) outer jacket material is standard; Flame-Retardant Tactical (V) and Low-Smoke Zero-Halogen (G) outer jacket materials are available
  • Ultra-Fox Plus Fiber (500um) used for environmental and mechanical protection

Applications

  • Ground-tactical cable that is ideal for use in harsh environments where deployment and retrieval for reuse is required

Provided Options

  • Mil-Tac cables pre-spooled on deployable reels for a ready-to-use product
  • Mil-Tac cables can be pre-terminated with single-fiber or ruggedized multichannel connectors upon request

Specifications


Jacket Characteristics

  • Operating Temperature: -55ºC to +85ºC
  • Storage Temperature: -70™C to +85™C
  • Crush Resistance: 440 N/cm (EIA/TIA-455-41A military requirements)
  • Impact Resistance: 200 impacts (EIA/TIA-455-25A military requirements)
  • Flex Resistance: 2,000 cycles (EIA/TIA-455-104A military requirements)
