Mini Display Port Male to HDMI Female Adapter

$7.99
SKU: AV5-5415
Various lead times may apply to this product. Please contact us for more details.

Description

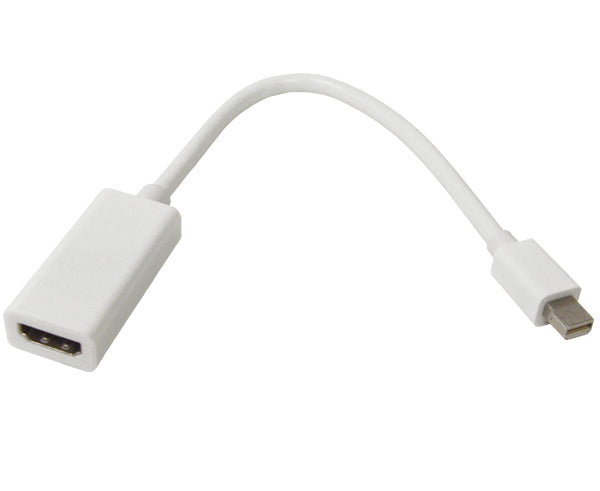

Mini Display Port Male to HDMI Female Adapter

MacBooks, MacBook Pros, and MacBook Airs all have Mini Display Ports that allow you to connect an external display or projector by just using an adapter. Use an external display as your main workspace or to extend your desktop, and work in mirrored mode with a projector, so that you can easily view what your audience sees.

Features

Features

  • Compliance with Display Port Specification V1.1a at 1.62/2.7Gbps data rate (Low bit rate/High bit rate)
  • Supports DPCD Rev.1.1 & Supports HDCP 1.3 with HDCP key embedded
  • Resolution up to 1920X1200 / 1080p
  • Connector DP male to HDMI female
  • Gold plated connector

Specifications

Specifications

Mini Display Port to HDMI Adapter Diagram

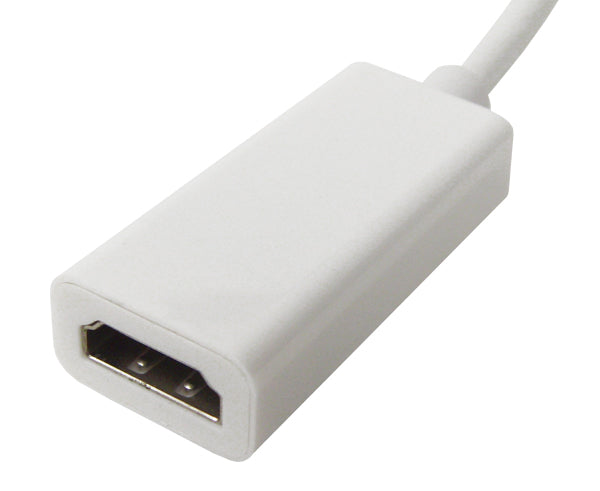

HDMI Housing Connector Dimensions

Length 1-3/4"
Width 1"
Height 5/8"
Material Gold-Plated Terminal, Nickel Plated Connector
Housing Color White

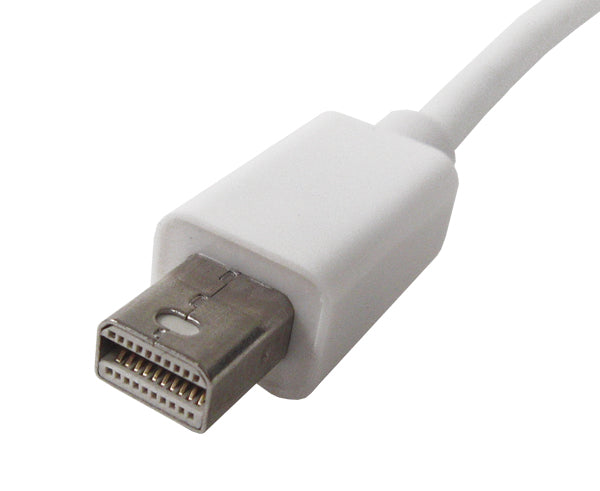

Display Port Housing Connector Dimensions

Length 1"
Width 1/2"
Height 3/4"
Material Gold-Plated Terminal, Nickel Plated Connector
Housing Color White

Cable Specifications

Cable Length 3-3/4"
Total Length (Connector End-to-End) 6-3/4" inch
OD 5.0mm
Jacket Material 45P PVC
Jacket Color White

Additional Information

Additional Information

HDMI adapters provide a means for converting DVI signals to HDMI signals for computer monitors and televisions. ##STORENAME## supplies both DVI to HDMI adapters and HDMI adapters for linking video cables. Need to run audio/video cables in tight spaces around your entertainment center? Reduce necessary clearance with one of our 90 degree HDMI adapters.

To learn more about our DVI / VGA / HDMI Adapter Accessories please visit our overview page. ##STORENAME## HDMI Adapter can be combined with a wide array of products such as:

What's in the Box

What's in the Box

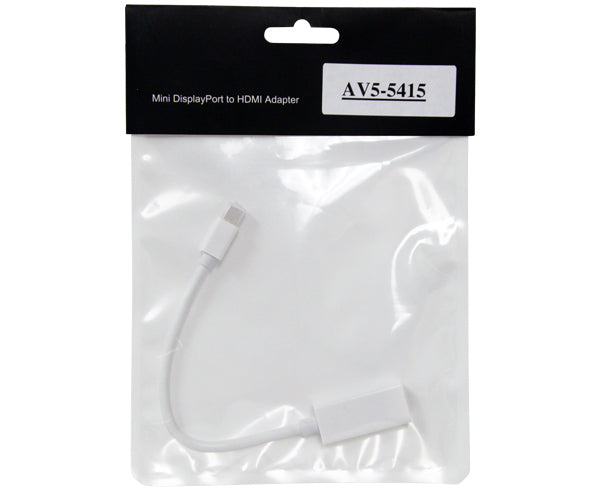

  • Qty 1 - Mini Display Port Male to HDMI Female Adapter
