Description
Introducing the mini OTDR tester, a powerful, easy-to-use multifunction tester for both twisted pair and fiber optic cables – the essential tester for field technicians and network engineers.
The mini OTDR tester provides a simple to setup and easy to use solution for OTDR testing. Includes a 5.5 inch OLED touch screen for easy viewing of cable tests and can save and export your OTDR tests. This unit will perform OTDR tests, OPM, VFL and laser source functionality for fiber optic cable, and will also perform continuity testing and TDR for Category cable
Features
Features
- Auto Testing with Event Map
- OTDR Test Range 3m - 105km
- Laser Source, OPM and VFL Functionality
- OTDR tests exportable as SOR or PDF files
- Includes RJ45 remote for copper cable testing
- Multiple adapters for fiber optic cables included
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| SIZE & DISPLAY | 5.55 INCH OLED SCREEN, 1280×720 RESOLUTION |
| NETWORK PORT | 10/100/1000M AUTO ADAPT (OPTIONAL) |
| MAX TESTING LENGTH (TDR) | 600M / 1668FT |
| MAX TESTING LENGTH (OTDR) | 105KM / 65 MILES |
| NETWORK TEST | IP SCAN, PPPOE, PORT FLASHING, PING TEST (OPTIONAL) |
| WAVELENGTH | 1310 / 1550 NM |
| DYNAMIC RANGE | 28 / 26 DB |
| PULSE WIDTH | 5–20000 NS (FULL RANGE) |
| TESTING RANGE | ≤105 KM |
| EVENT BLIND ZONE | ≤1.6M |
| ATTENUATION BLIND ZONE | ≤8M |
| LINEARITY | ±0.05 DB/DB |
| LOSS THRESHOLD | 0.05 DB |
| LOSS RESOLUTION | 0.01 DB |
| MIN DISTANCE RESOLUTION | 0.05M |
| SAMPLING POINT | 32–128 K |
| DISTANCE UNCERTAINTY | ±(1M + 5×10⁻⁵ × DISTANCE + SAMPLING INTERVAL) |
| DISTANCE SCOPE | 0.5, 1, 2, 5, 10, 25, 50, 100, 200 KM |
| REAL-TIME REFRESH | 1 SECOND |
| FILE FORMAT | SOR / PDF / EXCEL |
| MEASUREMENT DURATION | 5 SEC – 3 MIN (SELECTABLE) |
| STORAGE | FLASH (EMMC) 8G + TF CARD |
| INTERFACE TYPE | SC‑UPC |
| POWER SUPPLY | TYPE‑C 5V (2A) |
| BATTERY | BUILT‑IN 3.7V 4000MA LI‑ION |
| RECHARGEABLE | 3.5H CHARGE → 5H WORKING TIME |
| AUTO OFF | 5–30 MIN |
| WORKING TEMPERATURE | -10ºC TO +50ºC (14ºF TO 122ºF) |
| WORKING HUMIDITY | 30%–90% |
| DIMENSIONS / WEIGHT | 183×110×36.5MM / 0.45KG — 7.20×4.33×1.43IN / 1LB |
What's in the Box
What’s in the Box

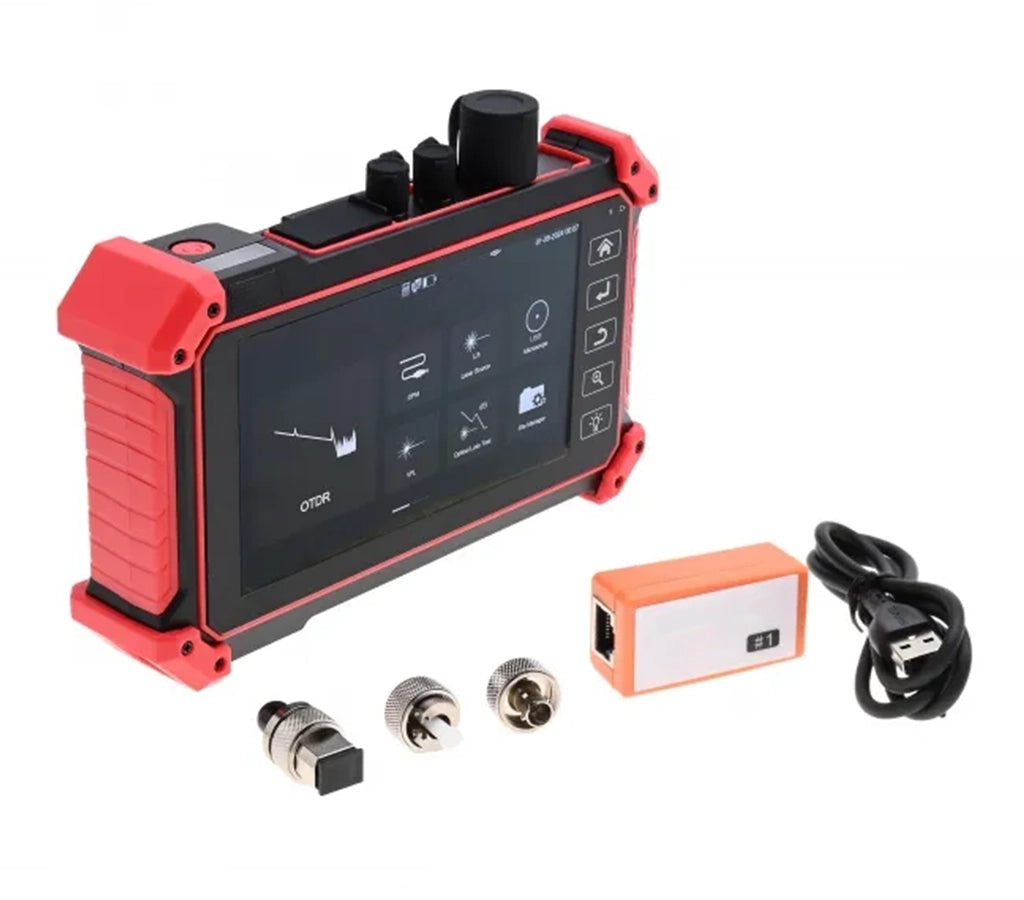

- Qty 1 - mini OTDR for 1550/1310 nm (28/26dB)
