Miniature Aluminum Commercial Surface Mount Switch Set - 4460 Series, 10/pack

by GRI
$224.80
SKU: 4462A
Gap
Loop Type
Style
Various lead times may apply to this product. Please contact us for more details.

These products are all Made to Order

Which means they are non-cancelable and non-refundable

Description

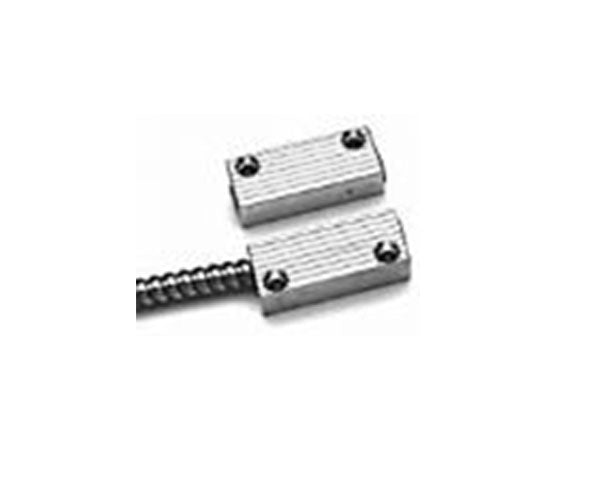

Miniature Aluminum Commercial Surface Mount Switch Set - 4460 Series

The 4460 Series is a compact, nice looking and extremely rugged switch set offered with or without armored cable that looks like it belongs when installed and not added as an after thought. These switches are resistant to nuisance vandalism and will blend in to the friendlier and more decorative atmosphere of today’s institution whether it be health care or an educational facility.

A robust working gap and mounting versatility makes this switch a top choice, where good looks and adaptation to a rough environment are required.

Features

  • Wide Gap Standard 1"+

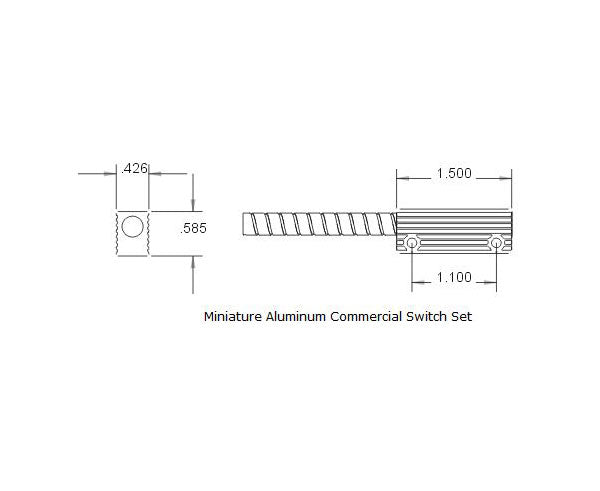

  • Miniature Size 1.5" L x 5/8" W
  • Heavy Duty Extruded Aluminum
  • Available with 18" Jacketed Or Armored Cable
  • Closed Loop, Open Loop, SPDT
  • Recommended For Institutional Use
  • Made In U.S.A

Specifications


Installation Instructions

The 4460 series of contacts are miniature, low profile, extruded aluminum switches intended for installations in commercial and industrial applications where a rugged, encapsulated wide gap contact is required. Ideal for institutional use such as hospitals, schools, minimum detention facilities, etc. The 4460 and 4460A both offer the installer a 1”+ working gap for loose fitting doors, gates, etc. Available in Closed Loop, Open Loop, SPDT and DPDT, this series of contacts can be purchased with 18” of jacketed wire leads or armored cable. Since the 4460 series is polarity sensitive, the poles are printed on the magnet case to indicate mounting direction. Mounting hardware and spacers provided with switch set. Optional S-44 mounting bracket sold separately.

WARRANTY: Lifetime warranty against workmanship, material and factory defects.

What's In The Box

  • 1 pack (10pcs) - Miniature Aluminum Commercial Switch Set + Mounting Hardware + Spacer
