1000Base-BX WDM Bi-Directional SFP Module
What This Product Does
The TL-SM311 series Fiber Module Cards are introduced to extend transferring distance. Installed in our managed/smart switches, they can extend the distance to even tens of kilometers, which satisfies the distance requirement of LAN. Users can choose the fiber modules according to specific demands.
Features
Features
- Up to 20 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Hot-Pluggable with maximum flexibility
- Commercial Product Operating Temperature Range: 0-70°C
Specifications
Specifications
| HARDWARE FEATURES | |
|---|---|
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| MEDIA CONVERTER & MODULES | |
|---|---|
| Standards and Protocols | IEEE 802.3z |
| Wavelength | 1310 nm |
| Power Supply | 3.3 v |
| Safety & Emission | FCC, CE |
| Cable | Single-Mode Fiber |
| Fiber Type | 9/125 μm Single-Mode |
| Max. Cable Length | 20 km |
| Data Rate | 1.25 Gbps |
| Port Type | LC Duplex |
| Environment | Operating Temperature: 0–70 °C (32–158 °F) Storage Temperature: -40–85 °C ( -40–185 °F) Operating Humidity: 10–90% RH, Non-Condensing Storage Humidity: 5–90% RH, Non-Condensing |
What's in the box
What's in the box
Package includes

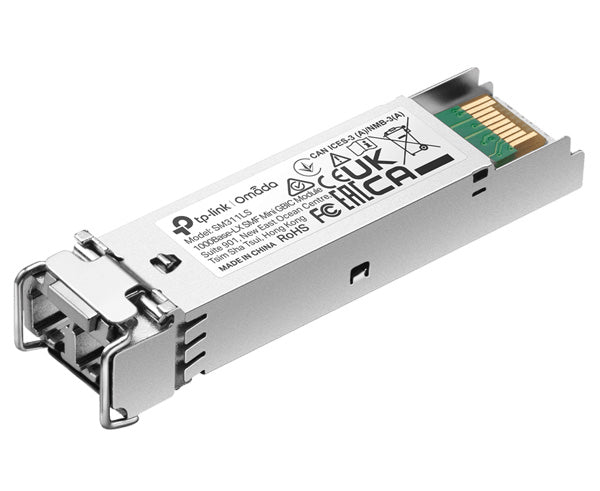

- Qty 1 - SFP Module TL-SM311LS
- Qty 1 - Installation Guide
