No exchanges or refunds.
All MTP/MPO Cables are custom made and have up to a 10 day lead time.
Description
Description

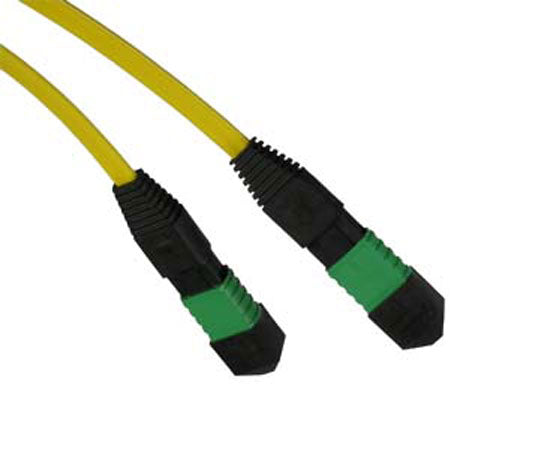

Plenum MTP™/MPO Fiber Optic Cables, Single-Mode 9/125 OS2, 12 Strand, Female to Female
These high speed Single-Mode 9/125um OS2 Polarity Type B Fiber Cables are terminated with MTP fiber optic connectors on both ends (MTP-MTP). The MTP ("Multifiber Termination Push-on") connector is a multifiber connector developed by USConec that contains up to twelve optical fibers within a single ferrule. Each one of the MTP cables contain 12 fibers channels in a connector smaller than most duplex connections in use today. MTP fiber cables are designed as a high-performance version of the MPO style cable and will interconnect with MPO connectors.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
Available in three polarity types:
- Type-A (Straight Through)
- Type-B (Cross, Flipped)
- Type-C (Cross Pair, Rollover)
Features
Features
MTP™/MPO Plenum Fiber Optic Cables, Single-Mode 9/125 OS2, 12 Strand, Female to Female Features
- High speed plenum Single-Mode 9/125um OS2 fiber cables
- Terminated with MTP fiber optic connectors on both ends (MTP-MTP)
- APC Polish Type
- Available in multiple lengths from 1 Meter to 50 Meters
- Method B Polarity (Cross, Flipped)
What's in the Box
What’s in the Box
- Qty 1 - MTP Female to MTP Female 12 Fiber Single Mode OS2 Trunk Cable, Type B Polarity, APC to APC Polish, Plenum OFNP Rated, Yellow Jacket
