MTP Breakout Harness Cable, Female MTP-LC, Multimode OM3 50/125, 10G, 12-Fiber, Plenum, Type A

Call for Pricing
SKU: FB44-####-12-OM3-A
This is a custom cable and is non-cancellable and non-returnable.

Custom MTP® breakout cables including polarity, custom lengths, jacket colors and other options are available upon request. To find out more information, please call us or email us.

Description

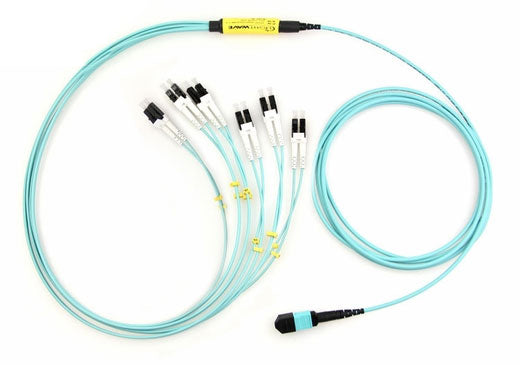

MTP® Breakout Harness Cable, MTP® to LC, Multimode 50/125 10 Gig OM3, 12 Fiber, Plenum, Type A

These high speed multimode 50/125um OM3 MTP® breakout cables are terminated with female MTP® fiber optic connectors on one end that breaks out to 12 fiber LC connectors on the other end. The MTP® ("Multifiber Termination Push-on") connector is a multifiber connector developed by USConec that contains up to twelve optical fibers within a single ferrule.

Each one of the MTP® cables contain 12 fibers or 6 duplex channels in a connector smaller than most duplex connections in use today. MTP® fiber cables are designed as a high-performance version of the MPO style cable and will interconnect with MPO connectors.

Called Lucent Connectors, Little Connectors or Local Connectors, these LC snap-in connectors are typically used for high density connections and are compatible with plug-and-play devices such as SFP modules and XFP transceivers.

Features

  • OM3 Multimode 50/125 type Fiber
  • Single 12 fiber female MTP® to 6 duplex (12 fibers) LC Connectors
  • Standard Polarity is Type A (Type B is available upon request)
  • 24" breakout length (Custom lengths are available upon request)
  • Plenum OFNP Rated
