MTP® Harness/Breakout Cable, MTP-LC, Multimode OM3 50/125, 10G, 72-Fiber, Plenum
This is a custom cable and is non-cancellable and non-returnable.
Custom MTP® breakout cables including custom lengths, jacket colors and other options are available upon request. To find out more information, please call us or email us.
MTP® Fanout Cable, MTP to LC, Multimode 50/125 10 Gig OM3, 72 Strand, Plenum
These high speed multimode 50/125um OM3 MTP breakout cables are terminated with MTP® fiber optic connectors on one end with one connector for every 12 strands and breakout to LC connectors on the other end. The MTP® ("Multifiber Termination Push-on") connector is a multifiber connector developed by USConec that contains up to twelve optical fibers within a single ferrule.
Each one of the MTP® cables contain 12 fibers or 6 duplex channels in a connector smaller than most duplex connections in use today. MTP® fiber cables are designed as a high-performance version of the MPO style cable and will interconnect with MPO connectors.
Called Lucent Connectors, Little Connectors or Local Connectors, these LC snap-in connectors are typically used for high density connections and are compatible with plug-and-play devices such as SFP modules and XFP transceivers.

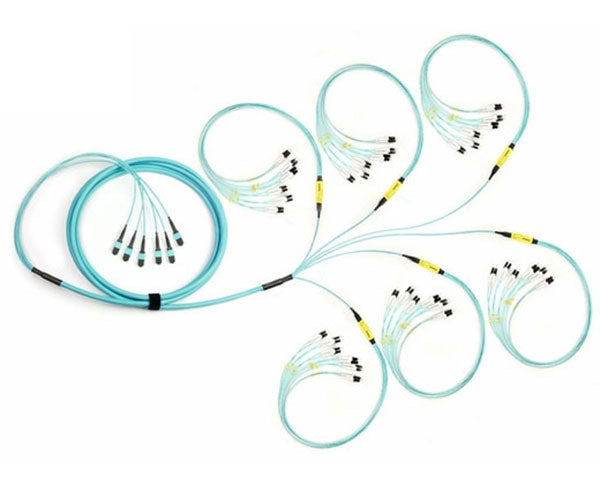

This 72 strand MTP® breakout cable will have six 12 fiber MTP® connectors on one end and 72 LC connectors on the other end.
