MTP® Harness/Breakout Cable, MTP/APC-LC, Single-Mode OS2 9/125, 10G, 12-Fiber, Plenum
This is a custom cable and is non-cancellable and non-returnable.
Custom MTP® breakout cables including custom lengths, jacket colors and other options are available upon request. To find out more information, please call us or email us.
MTP® Fanout Cable, MTP® to LC, Single Mode 9/125, 12 Strand, Plenum
These high speed single mode 9/125um breakout cables are terminated with MTP® fiber optic connectors on one end with one connector for every 12 strands and breakout to LC connectors on the other end. The MTP® ("Multifiber Termination Push-on") connector is a multifiber connector developed by USConec that contains up to twelve optical fibers within a single ferrule.
Each one of the MTP® cables contain 12 fibers or 6 duplex channels in a connector smaller than most duplex connections in use today. MTP® fiber cables are designed as a high-performance version of the MPO style cable and will interconnect with MPO connectors. The MTP/MPO Connector end is an APC ferrule polish type.
Called Lucent Connectors, Little Connectors or Local Connectors, these LC snap-in connectors are typically used for high density connections and are compatible with plug-and-play devices such as SFP modules and XFP transceivers.

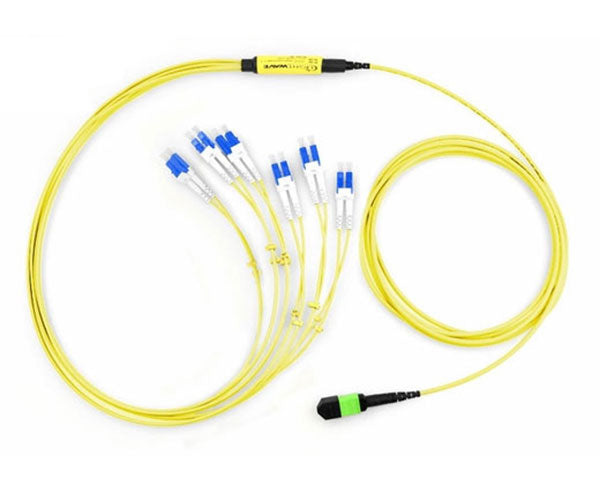

This 12 strand MTP® breakout cable will have one 12 fiber MTP® connector on one end and 12 LC connectors on the other end.
