Description
Multi-Function OTDR
Jonard Tools’ Mini Pro OTDR is the perfect all-in-one handheld device for evaluating FTTx and access network construction and maintenance, identifying fiber breakpoints, measuring cable length, and calculating relative optical power losses.
Features
Features

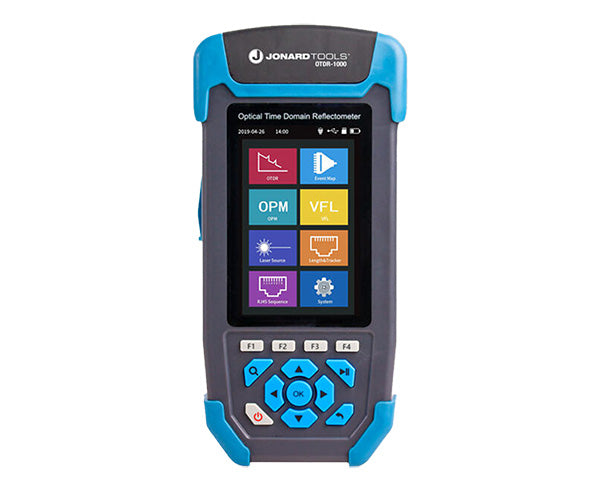

- Includes 8 different functions for testing and evaluating fiber optic and network cables

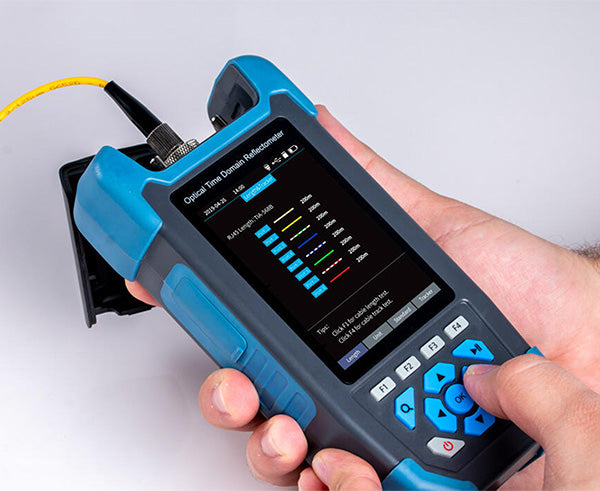

- Bright 3.5” color LCD screen makes it quick and easy to evaluate data

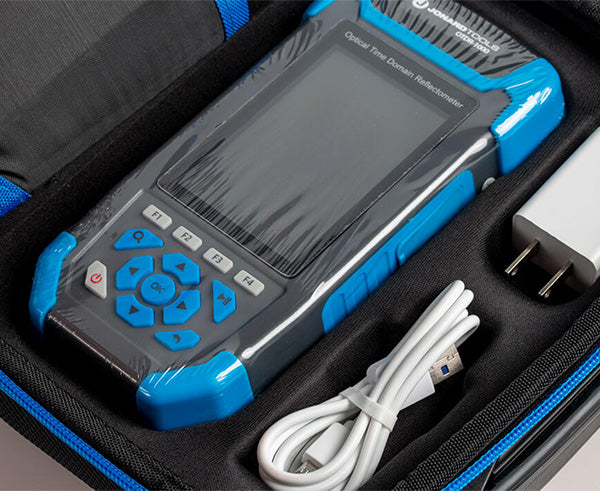

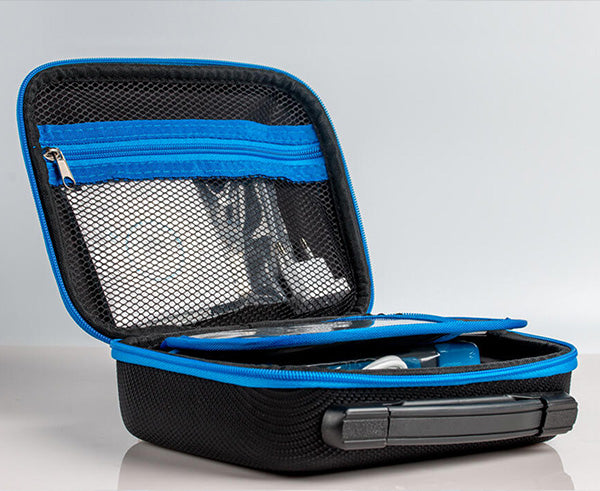

- Rubberized hard plastic case is shock-proof and drop-proof for maximum durability

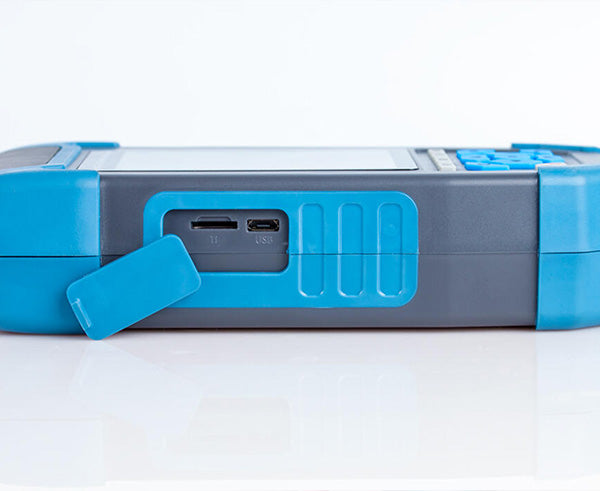

- 600 MB Internal storage with MicroSD/TF card slot for additional memory
- Built-in rechargeable lithium ion battery provides power on-the-go
- Can be charged or connected to a computer for data transfer via included micro-USB cable

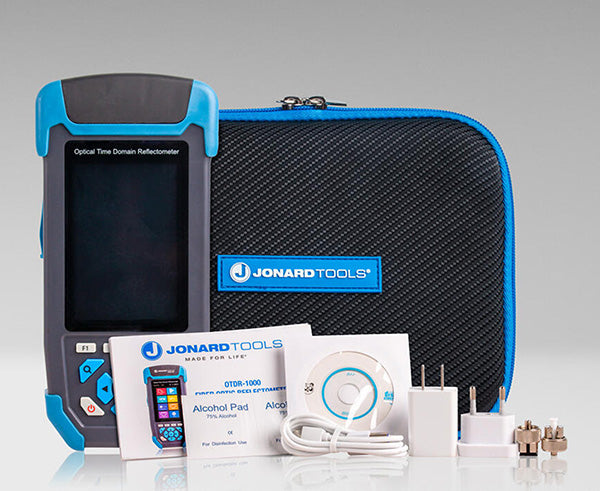

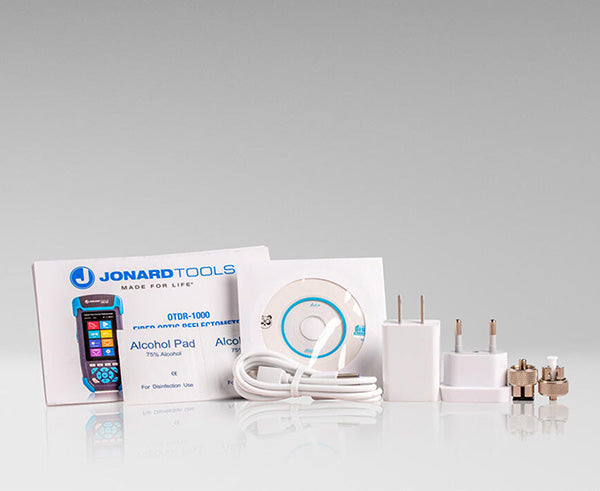

- Includes FC, SC, and LC (PC/UPC) OTDR adapters for fiber optic cables, downloadable software (also featured in the download section of this product page), power cord with plug adapters, alcohol wipes, and instruction manual
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| TOOL SPECIFICATIONS | |
| Wavelength | 1310 nm / 1550 nm ± 20 nm |
| Fiber Type | G.652 SM Fiber |
| Dynamic Range | 24 dB / 22 dB |
| Event Blind Zone | 3 m |
| ATT Blind Zone | 8 m |
| Test Range | 500 m ~ 60 km |
| Pulse Width | 3 ns ~ 10 us |
| Ranging Accuracy | ±(1 m + Sampling Interval + 0.005% × Test Distance) |
| Loss Accuracy | ±0.2 dB/dB |
| Sampling Points | 16k ~ 128k |
| Sampling Resolution | 0.05 m ~ 8 m |
| Reflection Accuracy | ±3 dB |
| Laser Safety Level | Class II level |

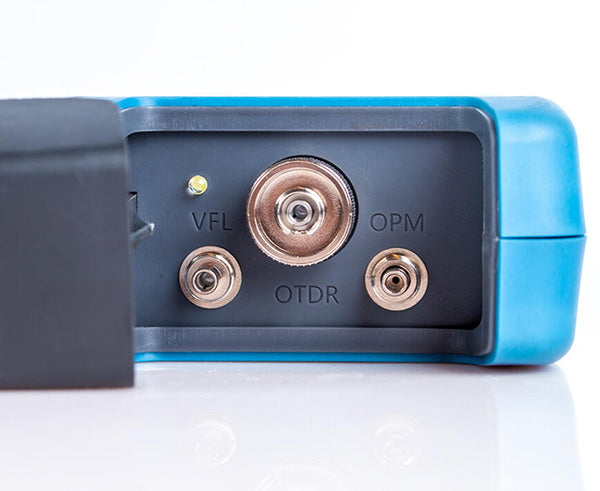

| Connector | FC/UPC (Interchangeable SC/ST) |
| PHYSICAL CHARACTERISTICS | |
| Data Storage | Internal: ≥600; External: TF Card |
| File Format | SOR Standard File Format |
| IDENTIFICATION | |
| Model Number | OTDR-100 |
Additional Information
| Jonard Tools Multi-Function OTDR (OTDR-1000) Product Video |
|---|
What's In The Box
What's In The Box
- Qty 1 - Multi-Function OTDR
