Description

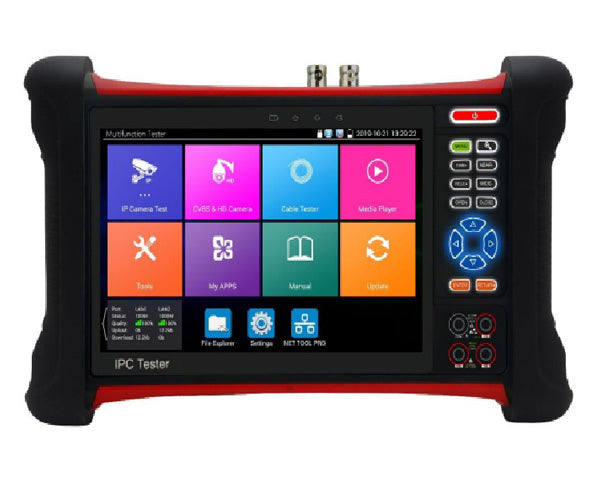

Multi-Function Video Test Monitor
The Multi-Function Video Test Monitor features a 7" LCD touchscreen, supporting both IP and analog cameras. It is ONVIF compatible for connection to any ONVIF Profile S-compliant IP camera (up to 4K Max Resolution). With a resolution of 1920 x 1200 and touchscreen functionality, navigation is simplified.
Features
Features
- Designed for installation and maintenance of IP and Analog cameras
- Composite video (CVBS, TVI, CVI, AHD) and IP video input support with ONVIF Profile S Compliance
- 7” Touch-Screen, 1920 x 1200 resolution
- H.265/H.264, 8K video display via mainstream
- RJ45 Ethernet cable, video level meter and cable trace test support
- PoE power voltage, PING and IP address searching support
- 4K, 30fps HDMI input and 4K, 60fps, HDMI output
- Support VGA input and Wi-Fi connectivity
- Rechargeable lithium battery and external 12VDC power supply
- Includes Digital Multimeter
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| MONITOR & VIDEO | |
| Monitor | 7” Touch Screen |
| IP Video | 1 x RJ-45, 10M/100M Auto Adjust |
| Analog Video | 1 x BNC Input (CVBS, TVI, CVI, AHD); 1 x BNC Output |
| HDMI Interface | 1 x Input and 1 x Output |
| VGA Interface | 1 x Input |
| INTERFACES & POWER | |
| Serial Interface | 1 x RS-485 |
| PoE Output | 1 x RJ45, 48V Output (30W Max) |
| Camera Power Output | 12VDC, 3A |
| Audio Interface | 1 x RCA Input and 1 x RCA Output |
| Storage | Micro SD Slot (8GB Card Included) |
| ELECTRICAL & BATTERY | |
| Power Supply | 12VDC, 2A |
| Battery Type | 7.6V Lithium Polymer (7800mAh) |
| Digital Multimeter | DC/AC Voltage, Resistance, Continuity, Diode, Capacitance; Data Recording & Reports |
| PHYSICAL & ENVIRONMENTAL | |
| Operating Temperature | -10°C ~ + 50°C (4°F ~ 122°F) |
| Operating Humidity | 30% ~ 90% RH |
| Dimensions | 255 x 160 x 46mm (10 × 6.3 × 1.8") |
| Weight | 0.95kg (2.1lb) |
What's In The Box
What's In The Box
- Qty 1 - Multi-Function Video Test Monitor
