Description

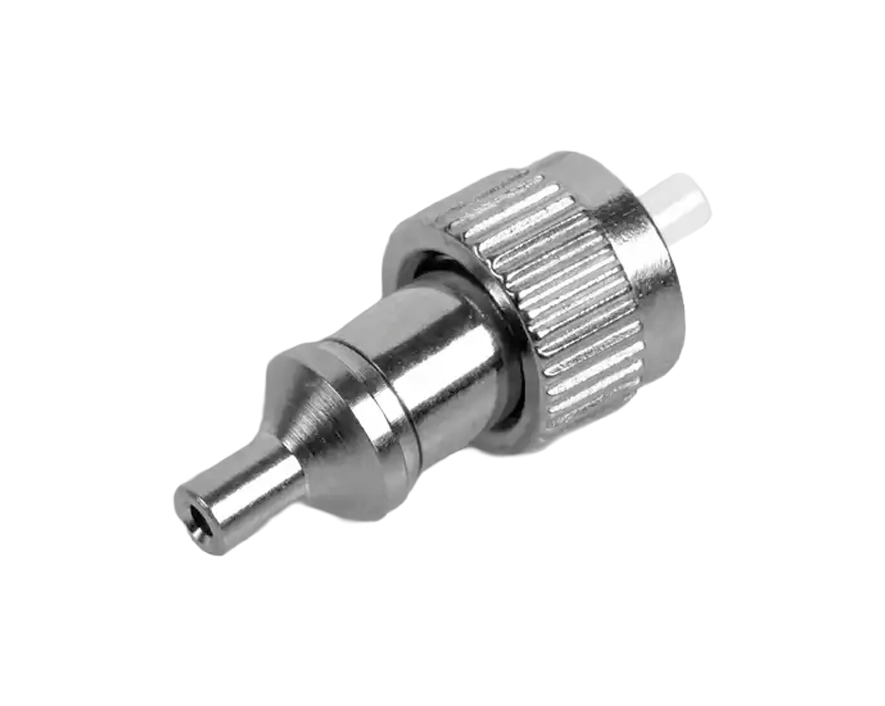

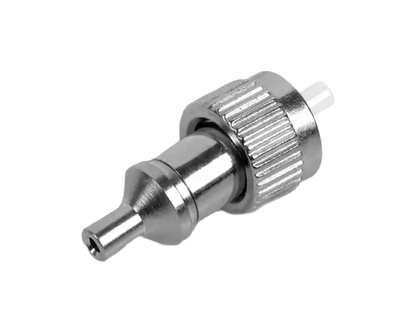

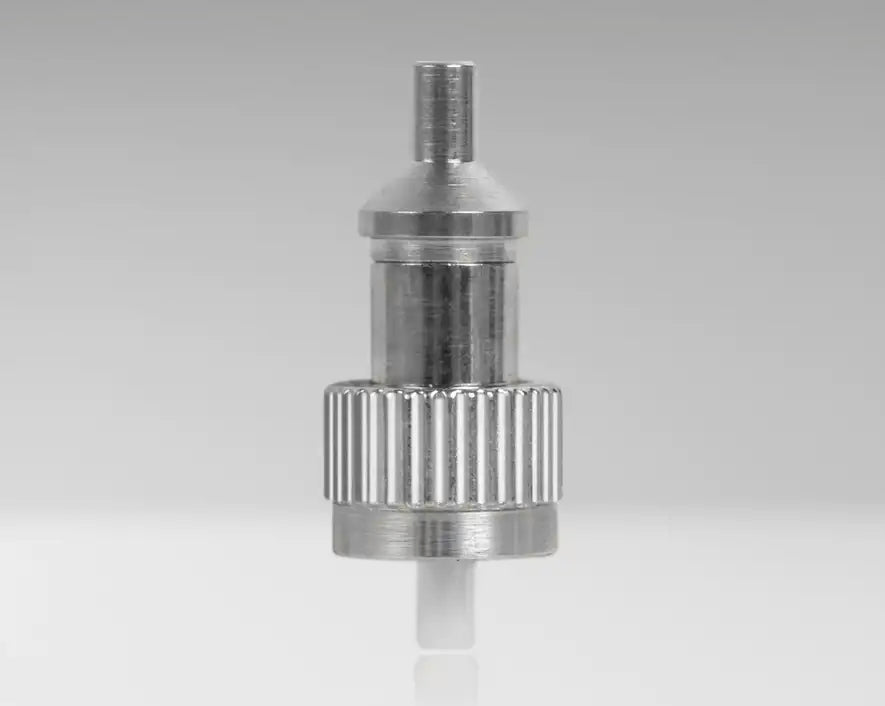

Multimode Fiber Optic Cable Tester Adapter, FC to LC, 50/125
Designed to convert FC/UPC test equipment adapter to Multimode 50/125 LC/UPC, this test equipment adapter is perfect when testing Multimode 50/125 fiber optic cables.
Features
Features

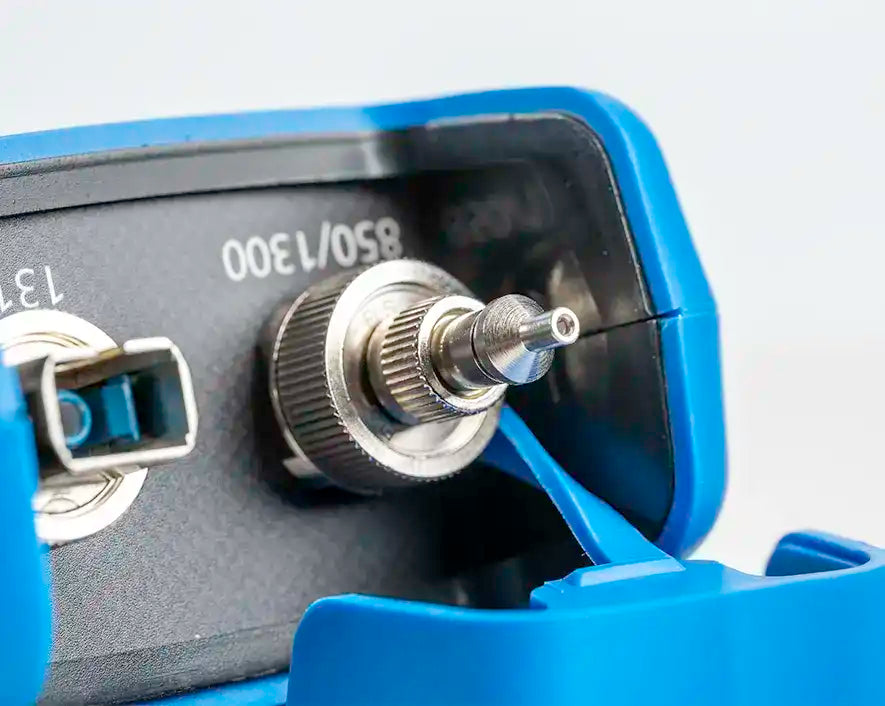

- Snugly fits into our fiber optic testers' FC/UPC adapters to be able to be used with Multimode 50/125 LC/UPC (OM2/3/4) fiber optic cable
- Works perfectly with our line of fiber optic test equipment, such as the FPM-50A, FPM-55, FPM-50S, FLS-50, FLS-55, PON-55, and our OTDR-1000/1500's OPM port
Specifications
| Adapter Type | FC-LC |
|---|---|
| Used For | Multimode 50/125 (OM2, OM3, OM4) |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 35 dB |
| Weight | 0.03 lb (13.61 g) |
| Dimension | 4.77 in x 1.86 in x 0.625 in (12.12 cm × 4.72 cm × 1.59 cm) |
| UPC # | 810132438172 |
What's In The Box?
What's In The Box?
- Qty 1 – Jonard FCLC‑50125 adapter (FC/UPC male on one end, LC/UPC female on the other)
