Net Chaser Ethernet Speed Certifier, TDR
Net Chaser Ethernet Speed Certifier, TDR
BY Primus Cable
SKU: SKU: TL4-6239
Couldn't load pickup availability
⚠ Various lead times may apply to this product. Please contact us for more details.
View full detailsThese products are all Made to Order
Which means, they are non-cancelable and non-refundable.
Description

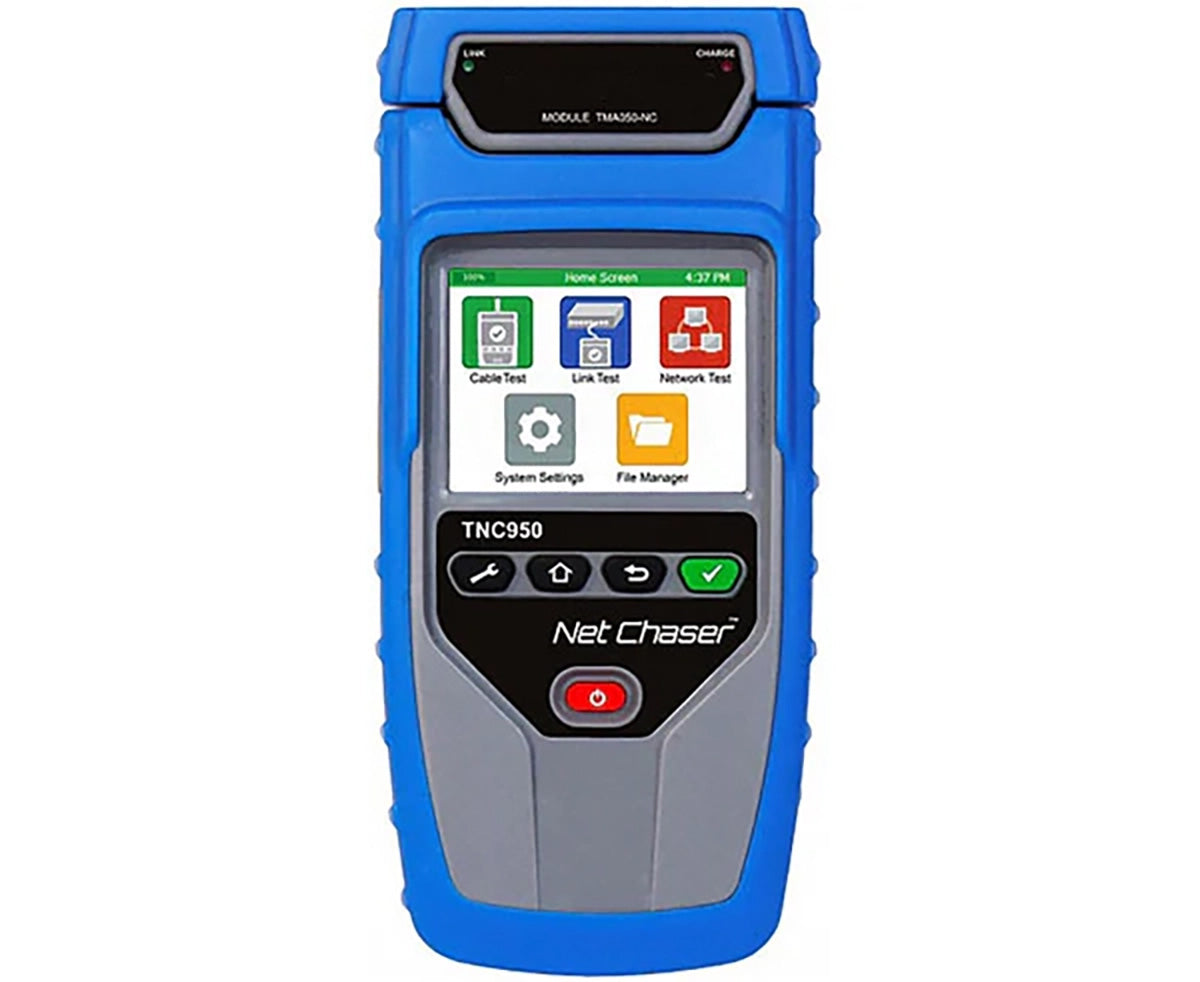

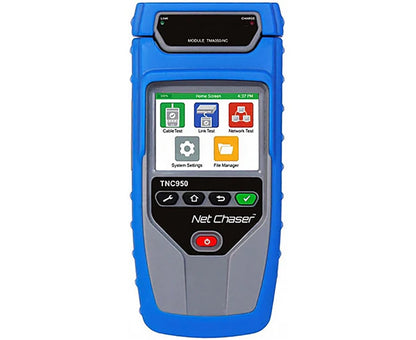

Net Chaser Ethernet Speed Certifier
The Net Chaser Ethernet Speed Certifier offers a comprehensive solution for certification and speed testing of Ethernet cable up to 1 Gb/s. It detects faults in the network and tests for noise. This verifies that cable network is capable of transmitting data at appropriate speeds. This Ethernet certifier shows the active layout of network components and saves test reports for later review.
- Speed Certification to IEEE Standards 802.3
- Cable Testing to TIA 568A/B
- Ping Specific IPs or URL Addresses
You Might Also Be Interested In:
Features
- Speed Certification to IEEE Standards 802.3
- Cable Testing to TIA 568A/B
- Ping Specific IPs or URL Addresses
- DHCP
- Traceroute
- VLAN
- Saves Test Reports and Exports in PDF or CSV Format
- 3.5" Color Touch Screen Display
- 3rd Gen Rechargeable Lithium-Ion Batteries
- Slim Form Factor For Portability
- SD Card for Data File Transfer
- Field Upgradable Firmware

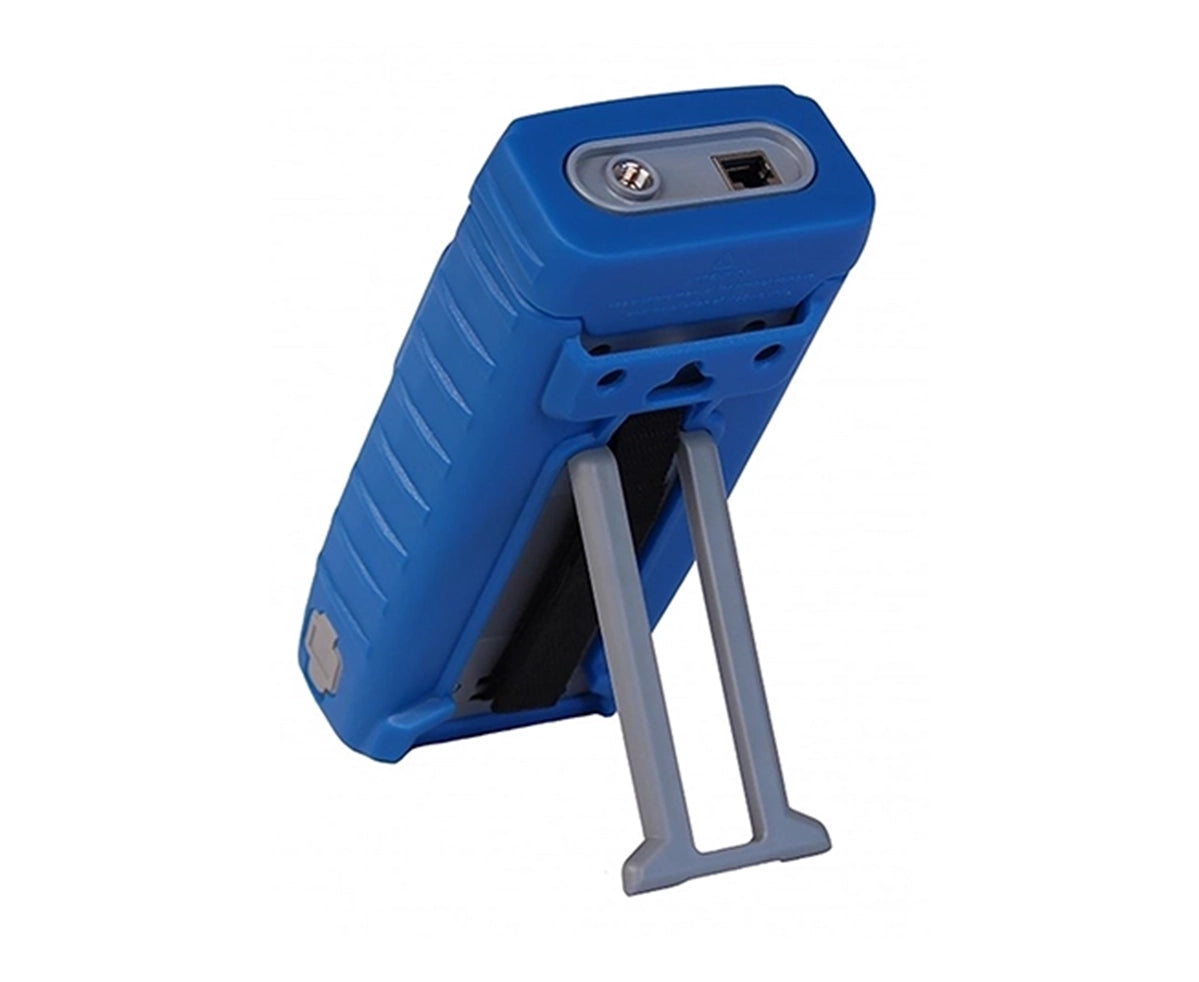

- Built-in Stand
- Hanging Strap and Clip
Specifications
| SPECIFICATIONS | |
|---|---|
| Measurement Technology |
Time Domain Reflectometry & Capacitance (TDR) Bit Error Rate Test (BERT) Signal to Noise Ratio (SNR) |
| Cable Testing Features: |
Measures and Displays Length For Each Pair in Feet or Meters Improperly Terminated Cables Are Clearly Displayed on a Color Graphical Wire-Mapping Display Detects Length to Opens & Shorts Verifies Continuity for RJ45 and Coax Cables Saves Test Results and is Easily Uploaded to a Computer Tone Generator ID Only Remotes (Network and Coax) - up to 20 Available Testing and ID Remotes - up to 8 Available |
| Network Testing Features: |
Port Discovery Detects PoE per IEEE 802.3af/at with Load Test for Voltage Drop and Which Pairs the PoE is Located on (Class) IPV4 Support Ping to a Specific IP or URL Address Ping up to 8 IP Targets at a Time Link Light to Identify Location on a Hub/Switch/Router Port Verifies DHCP Connectivity and DNS Discovers CDP and LLDP Protocols VLAN Discovery Traceroute |
| Ethernet Speed Testing |
IEEE 802.3 Signal Speed Carrying Specifications to 1 Gigabit Test Interconnect Specifications per TIA 568/570 Measures Quality of Signal Through Cable Against Set Criteria in Real Time Real-time Testing of Cable Performance |
| Interfaces |
Micro USB SD Flash Card |
| Save Test Results | Stores up to 250 Cable or Network Tests With User-Defined Names |
| Tone Generation | Tone frequencies: 730 Hz and 1,440 Hz |
| Languages | English, French, Spanish, German, Italian |
| Battery Life |
Rechargeable Li-Ion Rated 7.8V, 5,500mAh Battery Operating (Linked at 1Gb): 8 Hours Minimum Active (Not Linked): 20 Hours |
| Altitude | 10,000 ft. (3,048m) Operating |
| Temperature | Operating: -10 to 60°C Storage: -30 to 70°C |
Additional Information
Instructional Video

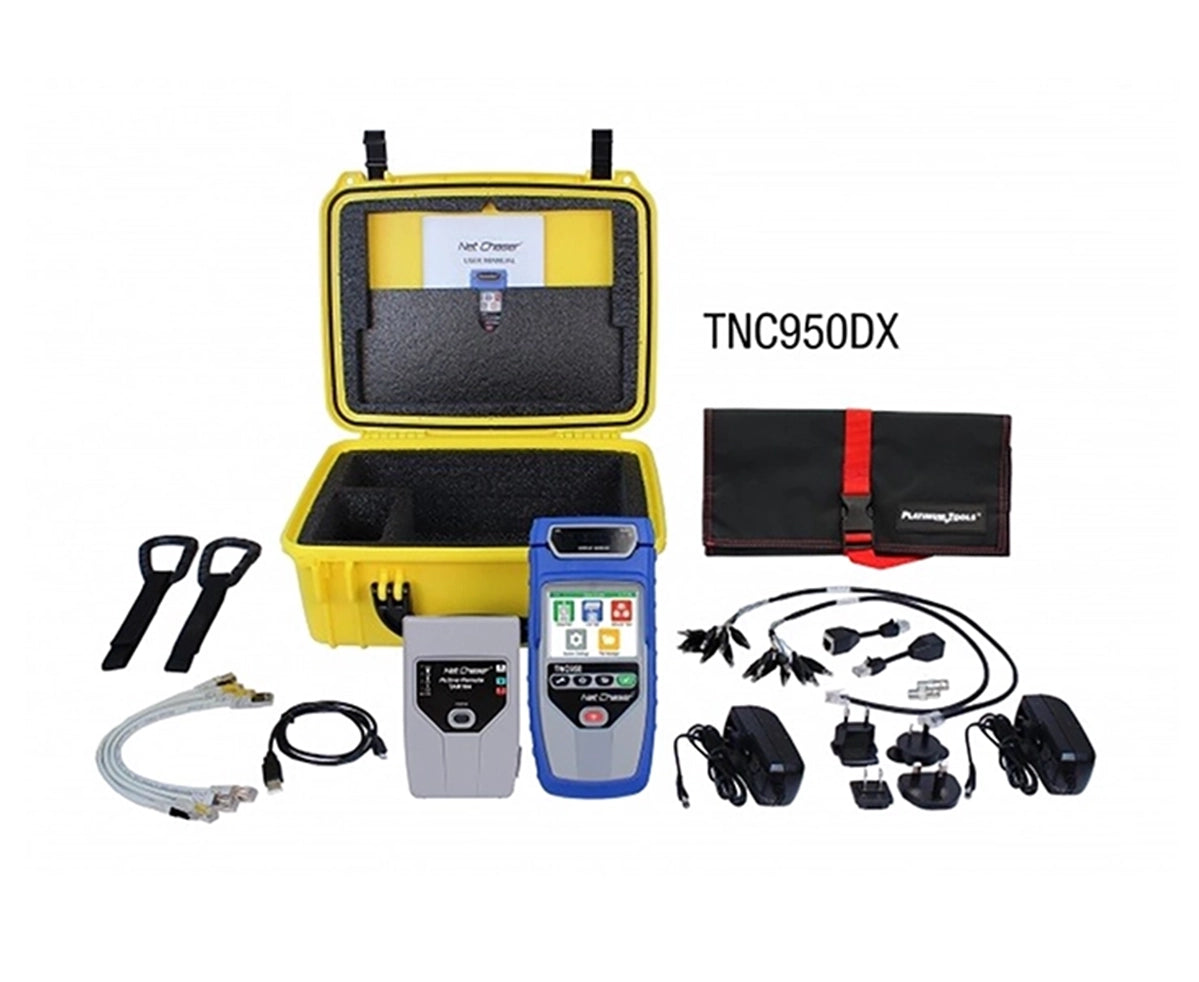

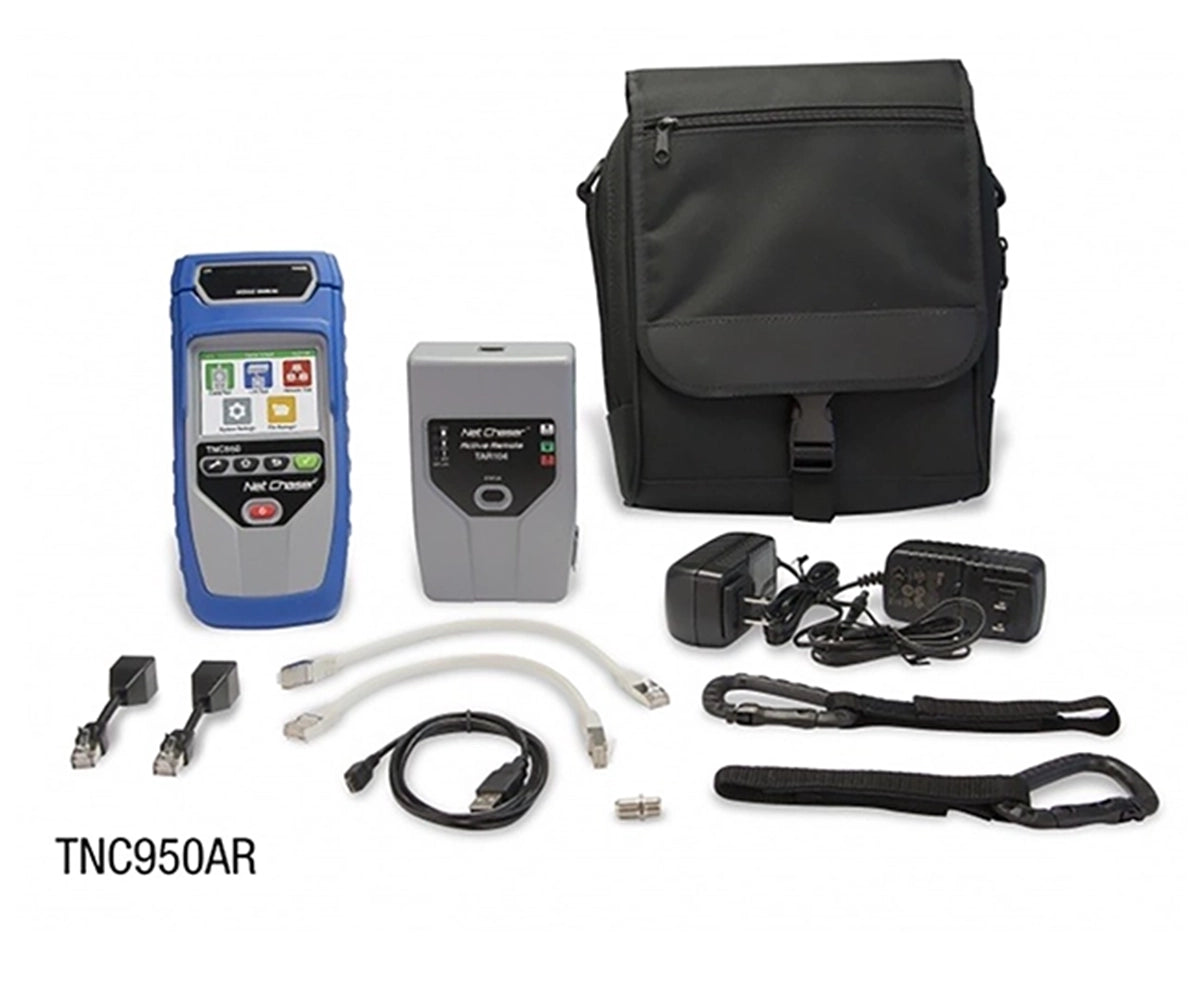

What’s In The Box
- Qty 1 - Net Chaser Ethernet Speed Certifier

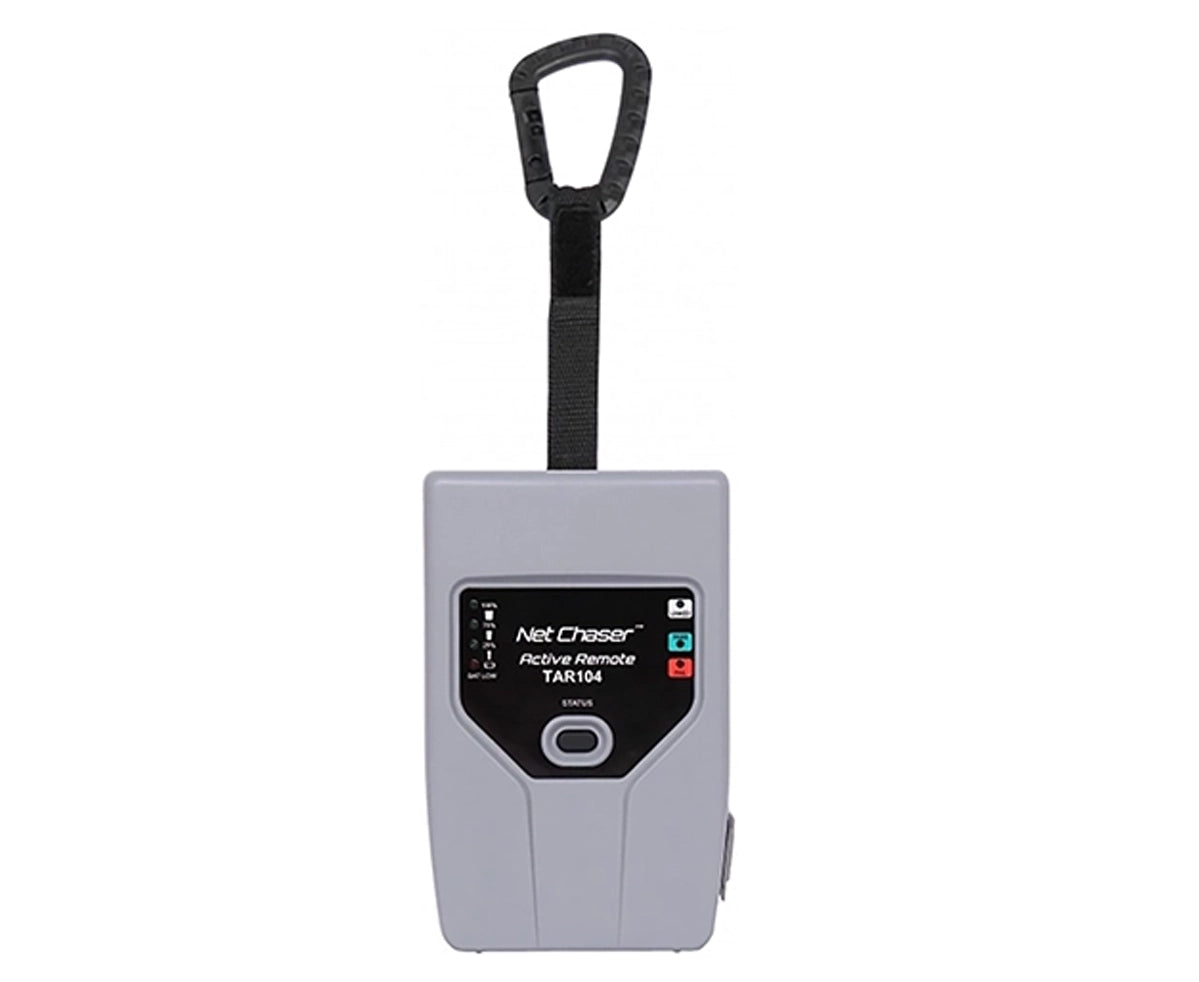

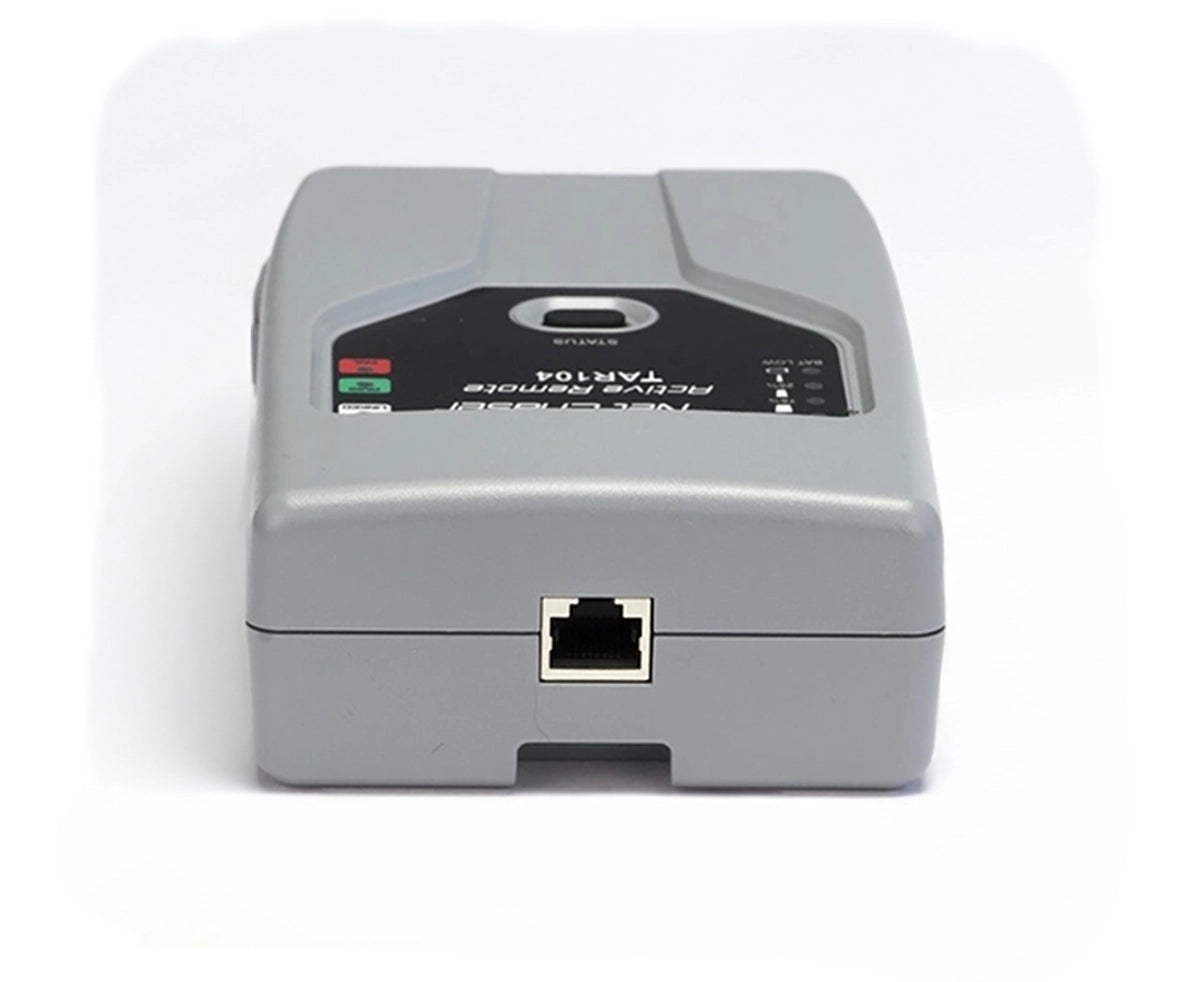

- Qty 1 - Active Remote
- Qty 2 - Power Supply
- Qty 1 - 4 GB SD Card
- Qty 1 - Micro USB
- Qty 2 - Network Patch Cable
- Qty 2 - RJ45 Port Saver
- Qty 2 - Hanging Strap and Clip
- Qty 1 - Large Carrying Case
- Qty 1 - F-Connector (F81)
- Qty 1 - User Manual
