Description

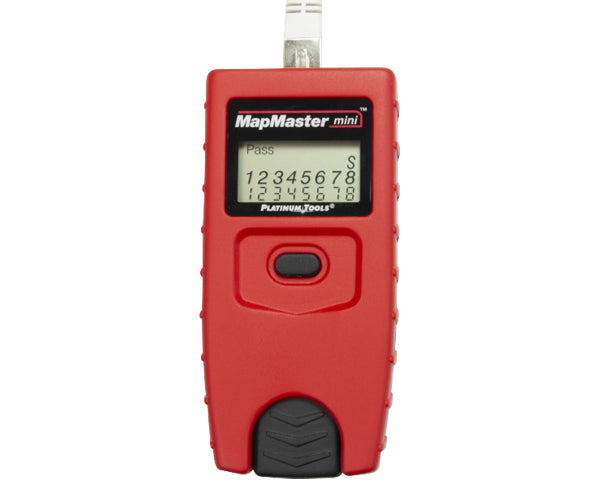

RJ45 Pocket Cable Tester
This pocket sized RJ45 cable tester is an ideal tool to bring along on all work sites. It can catch any shorts, opens, miswires reversals and split-pairs in your networking. It maps out any RJ45 locations and faults of your terminated cables and displays it on a large sized LCD. It comes with #1-5 ID Only Remotes.
The mini RJ45 network cable tester is set up to identify any port on the patch panel where the cable is terminated. It detects the condition of the wiring and any possible problems. This cable tester analyzes up to five cable runs at one time.
Features
Features
- Pocket Size RJ45 Cable Tester
- Detects Shorts, Opens, Miswires, Reversals, and Split-Pairs
- Built-in Tone Generator

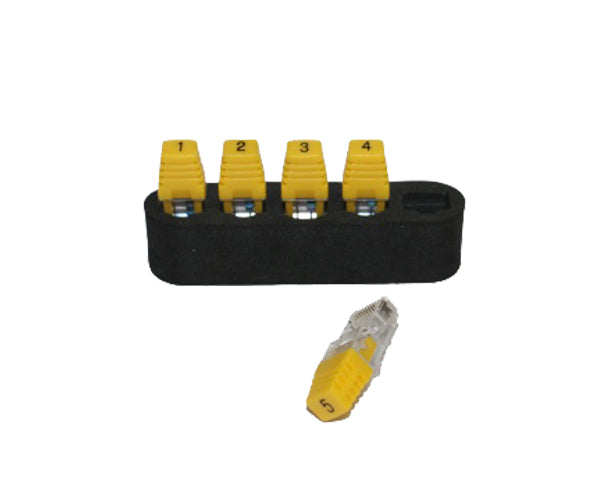

- Includes #1 - 5 ID Only Network Remote Set with Foam Holder
- LCD Display
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| DIMENSIONS | 4.6” X 2.3” X 1.1” (11.7 X 5.8 X 2.8 CM) |
| WEIGHT | 4.0 OZ. (115 GRAMS) WITH BATTERY AND REMOTE |
| OPERATING TEMPERATURE | 0°C TO 50°C / 32°F TO 122°F |
| STORAGE TEMPERATURE | -20°C TO 60°C / -4°F TO 140°F |
| HUMIDITY | 10% TO 90%, NON-CONDENSING |
| MAXIMUM VOLTAGE BETWEEN ANY TWO CONNECTORS PINS WITHOUT DAMAGE | RJ JACK: 66V DC OR 55V AC |
| BATTERY LIFE | TYPICAL: 6V ALKALINE BATTERIES - 4 X LR44, STANDBY: 3.5 YEARS, ACTIVE: 80 HOURS |
| CABLE TYPES | SHIELDED OR UNSHIELDED; CAT7, CAT6A, CAT5E, CAT5, CAT4, CAT3 (4-PAIR ONLY) |
| MAXIMUM RJ CABLE LENGTH | 0 TO 1000 FEET (305 METERS) |
| MINIMUM CABLE LENGTH FOR SPLIT PAIR DETECTION | 1.5 FEET (0.5 METERS) |
| LOW BATTERY | ICON FLASHES WHEN BATTERY VOLTAGE FALLS BELOW 6V |
| REGULATORY | COMPLIES WITH CONFORMITÉ EUROPÉENNE DIRECTIVES. |
What's In The Box
What's In The Box
- Qty 1 - Network Cable Tester, Mini RJ45, LCD Display, Built-in Tone Generator
- Qty 1 - #1-5 ID Only Network Remote Set with Foam Holder
