Network Rack, Component Shelf, Center-Mount, 2U, 22" Depth

$41.66
SKU: PP8-2881-2U22

Mounting screws designed for flush-mount racks are included. Additional mounting hardware may be required.

Description

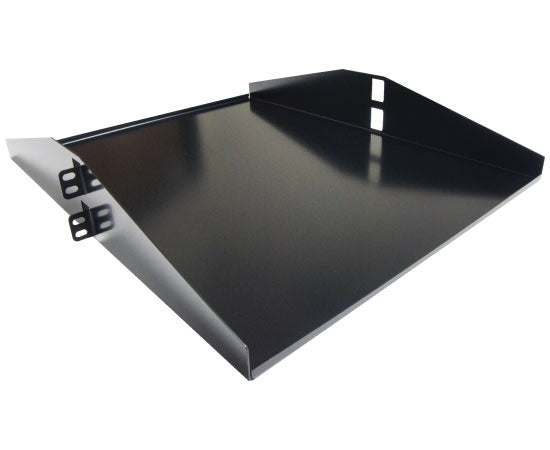

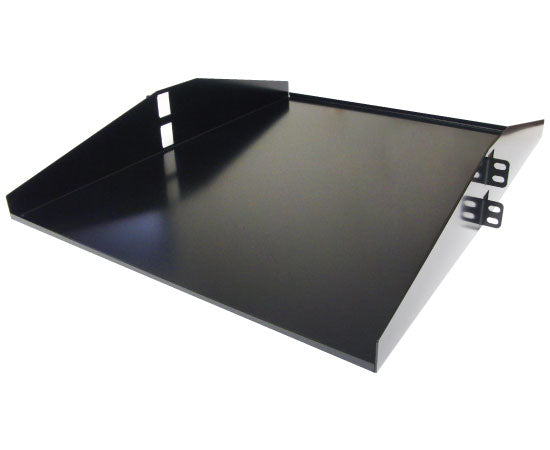

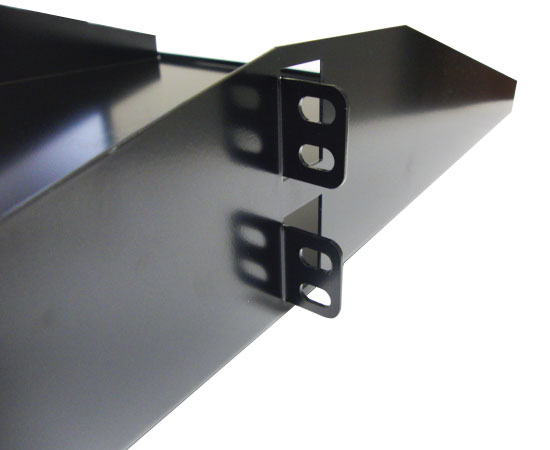

2U 22" Centermount Cantilever Utility Shelf

This Center-mount shelf is designed to be mounted in a 19" 2-Post Open Frame rack unit. Its dimensions are 19" wide by 22" depth and 3.5" tall, with a maximum weight capacity of 30lbs. Great for adding a monitor, keyboard or other non-rack-mounted equipment to your server rack system. The 14 AWG Steel construction and flanged design provides a sturdy and safe solution. Cantilever shelves extend out from the rack in both directions, providing support and storage space on the front and rear of the rack.

Features

Features

  • 14 AWG Steel
  • Weight Capacity: 30 lbs
  • Flanged design keeps equipment from sliding off the shelf
  • 22 inches deep
  • Width/Depth: 19"/22"
  • Height: 3.50"

Specifications

Specifications

Material 14 Gauge Steel
Color Black Textured Powder Coat Finish
Height 3.5"
Width 19"
Rack Space 2U
Load Capacity 30 lbs.
Depth 22"
Flanged Yes

Further Details

Standards EIA
Applications Monitors | Modems | DSL Routers | Tape Players | Backup Units
Description 2U 22" Singlemount Utility Shelf, 14 AWG Steel Construction
Important Notes The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for the purposes of quotation only.

Additional Information

Rack Shelves, Drawers, Trays Accessories

Maintaining organization in your server room, or networking hub can help save time and prevent frustration when tending to your network. Not all networking components are rack mountable, let us assist you with our rack component shelves. The network component shelf allows you to organize components such as: LCD monitors, modems, DSL routers, tape players, and backup units which are not rack mountable.

To learn more about our Rack Shelves, Drawers, and Trays please visit our overview page. The Centermount Cantilever Utility Shelf can be combined with a wide array of products such as:

What's in the box?

What's in the box?

  • Qty 1 - 2U 22" Centermount Cantilever Utility Shelf
