Description

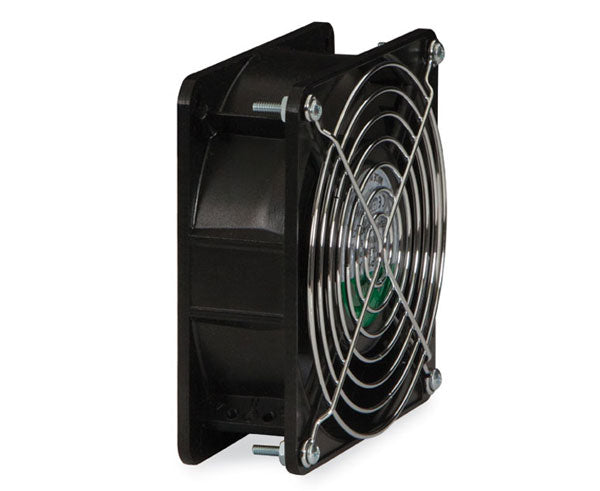

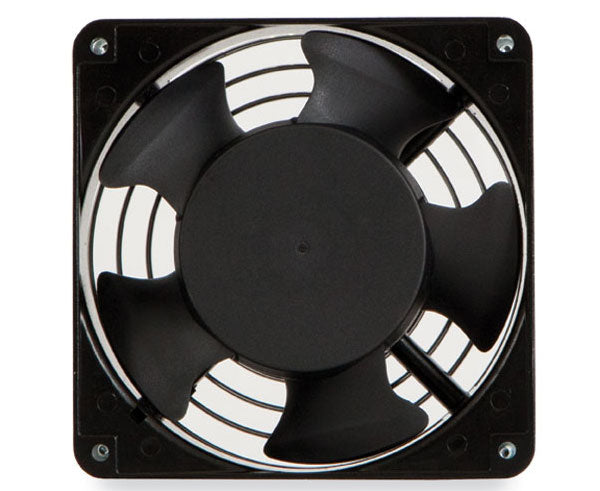

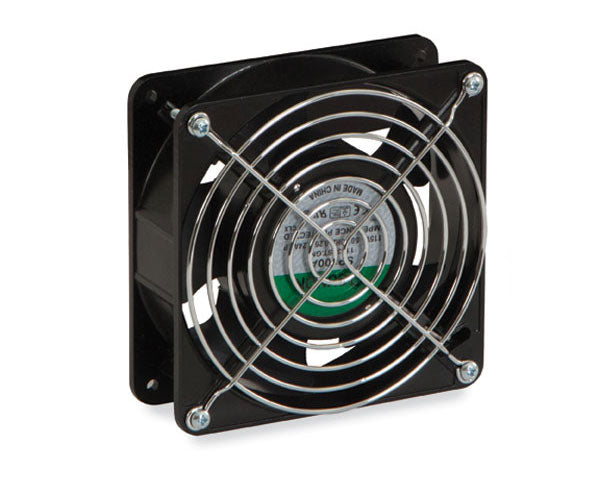

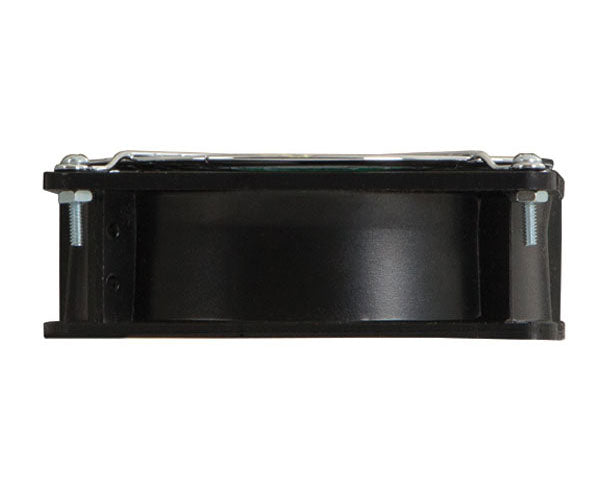

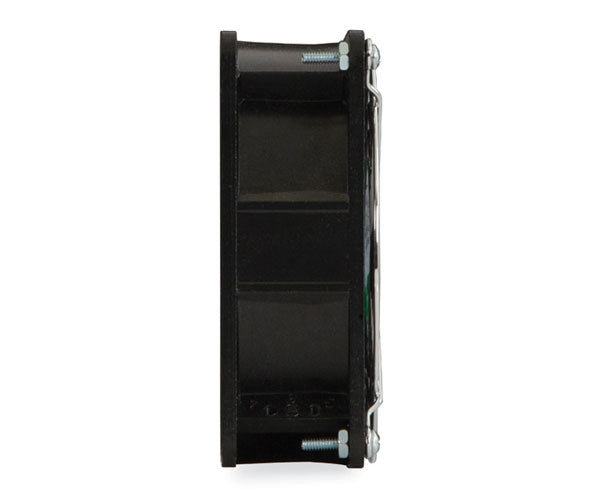

4" High-Speed Fan Assembly Kit
The Kendall Howard High-Speed Fan Assembly Kit helps to remove ambient heat that rackmount components can emit. Circulating new air into a wall mount cabinet or server enclosure helps to maintain the optimal temperature for devices such as servers, battery backups, and UPS's.
- Ball bearing design
- 115V / 115 CFM Fans
- Impedance protected
- RoHS compliant
- Includes power cord, fan guard, and installation hardware
- 1-Year Limited Warranty
Features
Features

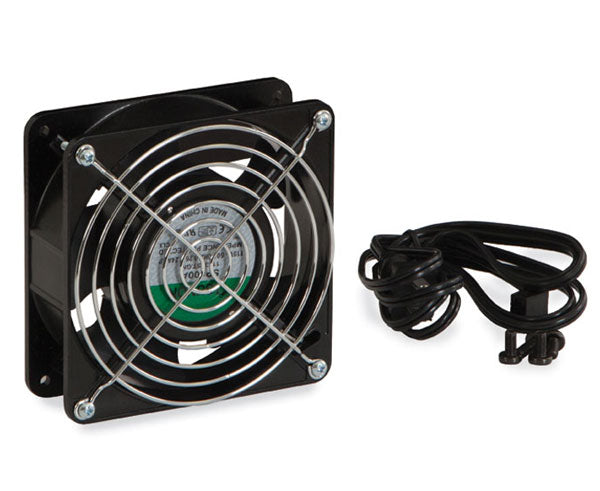

- All-in-One - The fan assembly kit comes complete with one 115V / 115 CFM fan, one protective grate, one 6 ft. NEMA 1-15 power cord, and all installation hardware.

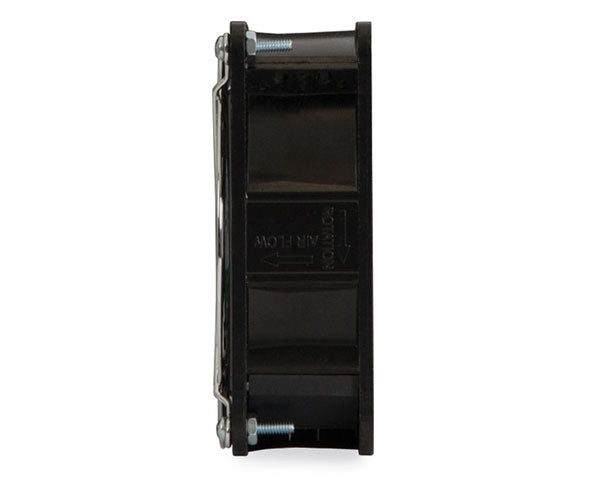

- Easy to Install - The Kendall Howard Fan Assembly Kit is a snap to install. Simply use the included hardware to screw into place. The fan also includes airflow and rotation guides to ensure proper installation.
- Compatibility - The standard 4" fan complements all Kendall Howard cabinets and enclosures. Whether you need to cool a wall mount cabinet, full size enclosure, DVR lock box or training table cable management enclosure, this fan assembly kit will get the job done.
- Optional Grounding - Server rack fan features two threaded grounding holes should you need to ground the fan for your particular installation.
Specifications
Specifications
| Depth | 4.69" |
| Width | 4.69" |
| Height | 1.52" |
| Weight | 2.00 lbs. |
| Fan Specifications | Bearing System: Sleeve Voltage: 115 VAC Rated Speed: 3100 RPM Air Flow: 115 CFM Noise Level: 49dBA Operating Temperature: 14ºF (-10ºC) to 158ºF (70ºC) |
| Power Cord Specifications | Cable Length: 6ft (72in) Plug Type: NEMA 1-5 (type A) |
Additional Information
Additional Information
Rackmount Fan Accessories
Both industrial size networks and small home office networks require system cooling solutions. Adequate cooling units such as rack fans are critical for dissipating heat buildup inside server cabinets. When considering rack fans for your server cabinets, it is essential to consider cost effective options and ensure your equipment stays protected. We provide a variety of Fan Assemblies and accessories to keep your equipment cool and safe.
To learn more about our Rackmount Fans please visit our overview page. Kendall Howard's Fan Assembly's can be combined with a wide array of products such as:
- Fan Thermostat
- Fixed Wall Mount Enclosures
- Free-Standing Enclosure Racks
- Swing-Out Wall-Mount Enclosures
What's in the box?
What's in the box?
- Qty 1 - 120mm Fan
- Qty 1 - 6ft Power Cord
- Qty 1 - 120mm Fan Guard
- Qty 1 - Assembly Parts Pack
